GA-CW16 Laboratory Medium Fluter
- Beschrijving
- Navraag
Beschrijving

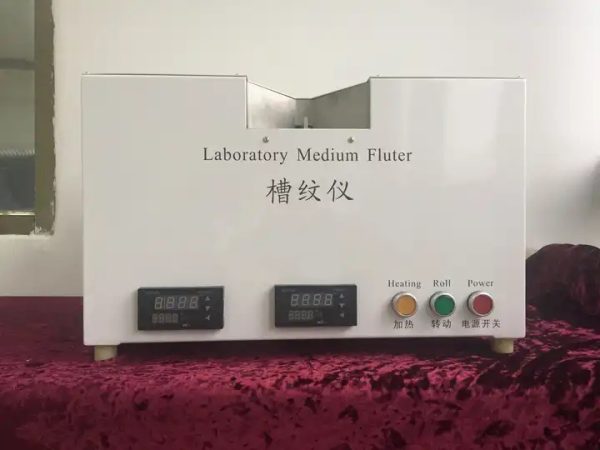

GA-CW16 Laboratory Medium Fluter
Invoering:
GA-CW16 Laboratory Medium Fluter is corrugated core paper for corrugated core flat pressure (CMT) and corrugating vertical pressure (CCT) test to prepare samples, to suppress the standard corrugated wave (corrugated core paper laboratory). Corrugated core paper after the match with computer compression tester can be used to determine the corrugated core of the original paper compression strength (CMT) and vertical compressive strength (CCT).Laboratory Medium Fluter GA-CW16 Vertical Fluter Led Fluter Led Vertical Fluter
Normen:
QB1061,GB/T2679.6,ISO7263,TAPPI T809Laboratory Medium Fluter GA-CW16 Vertical Fluter Led Fluter Led Vertical Fluter
Productfuncties:
1. Instrument using single-chip microprocessor control technology, Precision temperature controller accurate temperature adjustment.Laboratory Medium Fluter GA-CW16 Vertical Fluter Led Fluter Led Vertical Fluter
2. Automatic temperature compensation mode with PID control, fast response, high steady precision,
3. Digital display actual temperature and set temperature.
4. With over-temperature protection device.
5. Set parameters memory automatically after power failure.
6. With parameter self-tuning function, Precision gear transmission, Standard Buttons sensitive durable.
7. Flute corrugated paper from the automatic mode.
GA-CW16 Laboratory Medium Fluter
Technische parameters:
|
Flute Types
|
A
|
||
|
Work Speed
|
4.5toerental
|
||
|
Temperature Resolution
|
1°C
|
||
|
Temperature Accuracy
|
0.5 grade ± 1 word
|
||
|
Temperature Range
|
Room temperature~200 °C
|
||
|
Pressure Range
|
(49~108)N
|
||
|
Temperatuur
|
175°C
|
||
|
Spring Tension
|
100N
|
||
|
Dimensies
|
520×380×335mm
|
||
|
Weighs
|
45kg
|
||
|
Stroom
|
AC220V,50Hz
|
||
