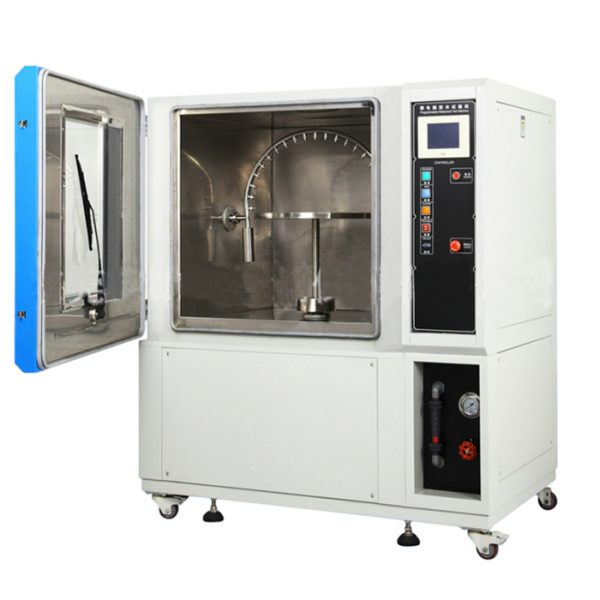

GA-2011 Rain Test Chamber

Beschrijving

Rain Test Chamber

Meet test standards

1. GBJ150.8 rain test method
2. GB2423.38 water resistance test method
3. Test method for water resistance of iec60068-2-68
4. GB4208 test method for water resistance

5, IEC60529 water resistant test

6. GB/T4942.1 test method for water resistance
7. Iec60034-5 test method for water resistance
8. ISO 20653 water resistance test method

Rain Test Chamber

Uses:

The water-resistant test box is suitable for external lighting and signal device and automobile lamp enclosure protection, and can provide lifelike simulation of electronic products and components during transportation and use may be subject to various environments such as water and spray test.To test the waterproof properties of various products.

Rain Test Chamber

Producteigenschappen

The quality (t=1.2mm) A3 steel plate numerical control machine is adopted for processing and molding of the external box, and the shell surface is sprayed with plastic, which is more bright, clean and beautiful.

Materiaal: imported superior stainless steel (SUS304)

Insulation material: rigid polyurethane foam + glass fiber

Rotary table: the table is PVC rigid plate (Roestvrij)

Parts of the tank contact water are made of stainless steel or copper

The dial control system can choose simple programming controller or thermal technology independently developed full color touch control system.

Control interface friendly, eenvoudige bediening, stable operation, low noise design, low carbon energy saving,

The swing tube is driven by step horse, the Angle is accurate, and the swing speed can be set and adjusted. The nozzles of each group are radiated by the center of the turntable.

The nozzle is not diffused and is provided with an Angle adjustment device.

Auto elevation water surface function.

German original high pressure pump, jet type heating device.

To prevent impurities from clogging the nozzle, a water quality filter system is provided.

The large-area visualization toughened glass door is convenient to observe the test sample in the test box.

The dial control system can choose simple programming controller or thermal technology independently developed full color touch control system.

Control interface friendly, eenvoudige bediening, stable operation, low noise design, low carbon energy saving

Rain Test Chamber

Specificatie

Model			A			B
Inner size(mm)			800*800*800			1000*1000*1000
Outside size(mm)			1450*1650*1150			1650*1850*1350
Performance indicators	Spray ring radius	375mm
	Pijpdiameter	φ16mm
			nozzle diameter	φ0.4mm
			Aperture spacing	50mm
			Swing pipe amplitude	±45、±60、±90、±180°（theoretical value）
			Test bend rotate speed	1r/minStepless speed regulation (optioneel)
Operational control system			Imported FM converter
			Time controller	Imported programmable time computer integrated controller (Kim jong mok)
			Water pressure control	Flow meter
			Observed surface	Large area visible toughened glass door
			Water supply system	Water storage tank, booster pump
Security and protection			Leakage, short circuit, motor overheating
