RLC Tester
Descriptions
AT2818 adopts true-color TFT-LCD and English operation interface (Chinese also available). AT2818 (Rev B2.0) has been upgraded into continuous frequency with the resolution of 0.001Hz.
Four parameters can be measured simultaneously by AT2818, Any parameters can be set arbitrarily. Both main & sub parameters can be displayed in 6 dgt after the improvement. AT2818 can not only scan 10 kinds of frequency or voltage level list, but also correct three groups of user frequency so as to improve the accuracy.
| SPECIFICATIONS | |
|
AT2818 Precision LCR Meter |
|
| Parameters |
Cs-Rs,Cs-D,Cp-Rp,Cp-D,Lp-Rp,Lp-Q,Ls-Rs,Ls-Q,Rs-Q,R-X,Z-θrad,Z-θdeg |
| Monitor Parameters |
Z, D, Q, θr, θd, R, X, G, B, Y, Vacuüm, Iac, Δ, D% |
| Basic Accuracy | 0.05% ± 5 dgt |
| Frequentie | 10Hz – 300kHz (continuous frequency, frequency resolution 0.001Hz) |
| Weergave Bereik | L: 0.00001mH-999999H C: 0.00001pF – 999999mF R,Z: 0.00001W – 99.9999MW D, 0.00001 – 9.99999 Q: 0.00001 – 99999.9 D%: -999999% – 999999%
q(deg): -179.999° -179.999° q(rad):-3.14159 – 3.14159 |
| Source Resistance | 30Oh, 50Oh, 100Oh |
| Bereik |
Automatisch, Handmatig, and nominal, 9 ranges |
| Display Max | 6 digitaal, principle parameter: 999999; sub parameter:999999; monitor parameter: 999999 |
| Signal Level |
0.01V – 2.00V (10mV Step) |
| Snelheid | 30t/s, 10t/s, 6 t/s, 3 t/s 1-256 times average is available |
| Comparator |
14-bin sorting, 10-bin GD, 1-bin NG, 1-bin AUX, 2-bin principle parameter NG; Count Function: Max – 999999 |
| List Test |
10 group frequency and level scanning measurement |
| Adjustment |
Open & Short circuit sweep frequency reset, 3-point frequency reset and load calibration. |
| Files |
10 group files to save user’s setting, 1 group to save system data real-time |

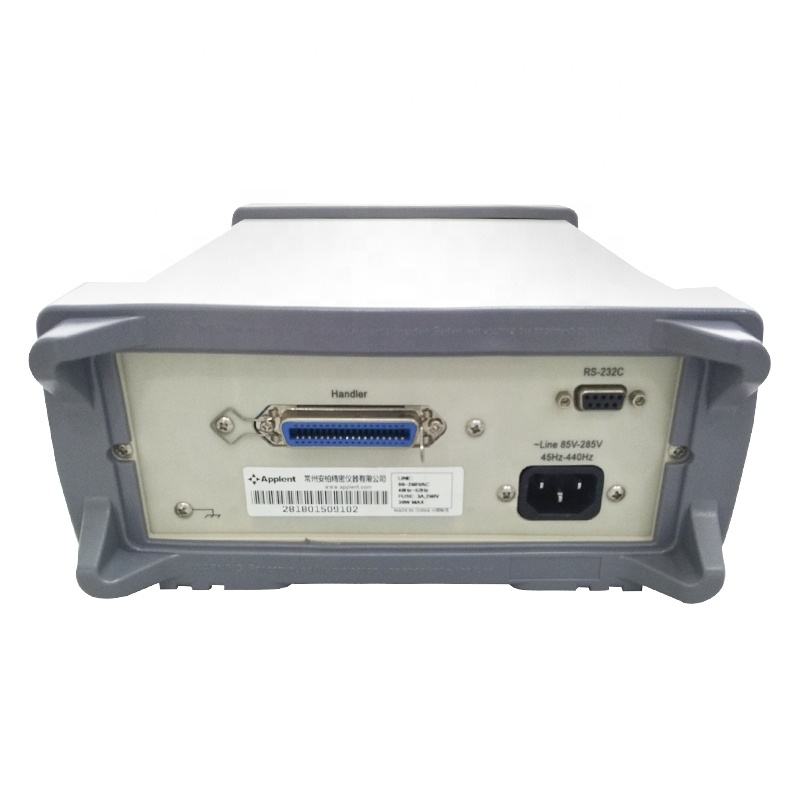

| Koppel | RS232C, ExHandler interface, standard configuration USB Disc interface (article 10000 gegevens) |
| Anderen | LCR Automatic selection, keypad lock, SCPI instruction set, true-color TFT-LCD Display |
| GENERAL FEATURES | |
| Stroomvoorziening |
Spanning: 90V AC – 250V AC; Frequentie: 50Hz-60Hz; Max Power: 20VA |
| Maat |
264mm (breedte)x107mm(hoogte)x350mm(depth); 4kg |
| ORDERING INFORMATION | |
| Accessoires | ATL501E Test cable
ATL508A SMD patch test clip ATL601 Test fixture ATL600 Short-circuit slice ATL108 RS232 Communication cable AC Power Cord |
| Optioneel | ATL608 SMD patch clamp
ATL508 SMD patch test clip ATS2818 Data acquisition software |
