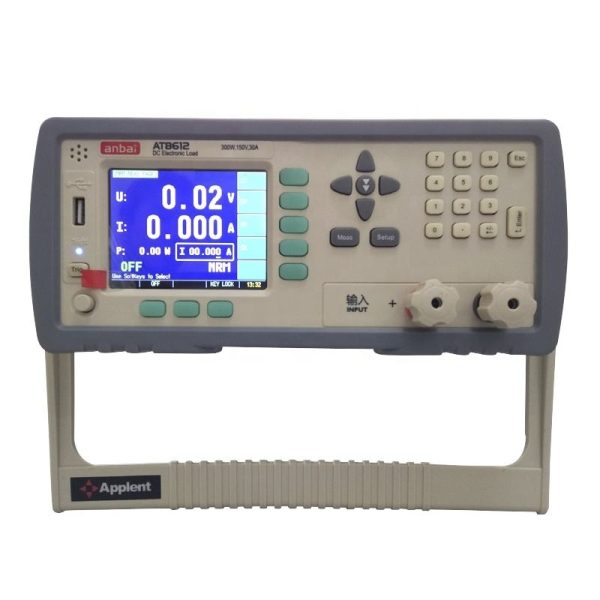

Anbai AT8612 Programmable DC Electronic Load
- Beschrijving
- Navraag
Beschrijving
DC Electronic Load
AT8612 DC Electronic load adopts high-performance ARM microprocessor with multiple processors, 3.5 inches true color LCD display, Chinese and English language is switchable, which makes the operation more convenient. It has superior speed and performance. AT8612 offers four load modes (CC, CV, CP, CR), and there are 6 modes of measurement function: NRM,TRN,SEQ,ATF,BAT and SHT.
- DC Electronic Load
- Technical Parameter
| SPECIFICATIONS | |
|
AT8612 DC Electronic Load |
|
| Input Rating |
300W,300V,30A |
| CC | 0.~3A, Oplossing: 0.0001A, Nauwkeurigheid: 0.05%
0~30A, Oplossing: 0.001A ,Nauwkeurigheid: 0.1%, |
| CV | 0~18V, Oplossing: 0.001V, Nauwkeurigheid: 0.05%,
0~150V, Oplossing: 0.01V, Nauwkeurigheid: 0.05% |
| CP | 0~100W, Oplossing: 0.001W, Nauwkeurigheid: 1%
>100W, Oplossing: 0.01W, Nauwkeurigheid: 1% |
| CR | 0.1~99Ω, Oplossing: 0.01Oh, Nauwkeurigheid: 1%,
100~4kΩ, Oplossing: 0.1Oh, Nauwkeurigheid: 1% |
| Monitor | Voltmeter accuracy: 0.05%,Ampere meter accuracy: 0.1% |
| Short Circuit | Current ≈30A, Resistance ≈40mΩ |
| Transition | 10 files, Frequentie: 0.1Hz~1kHz |
| List Test | 10 files,100 steps/file |
| Test File | 10 files, 20 steps/file |
| Battery Test | Capaciteit: 999AH max |
| Koppel | RS232, Handler interface, optional RS485 interface |
| Software | ATS8612 data acquisition software (Rev 2) |
| Protect | Five level Security protect |
| Anderen | 3.5 inches LCD display, 4W Remote sensing capability,Intelligent cooling |
| GENERAL FEATURES | |
| Stroomvoorziening |
Spanning: 220V AC. Frequentie: 50Hz. Max Power: 20VA |
| Maat |
264(breedte)x107(hoogte)x350(depth)mm, Gewicht: 4kg |
| ORDERING INFORMATION | |
| Accessory | ATL509 Test Cable
AC power cord |
