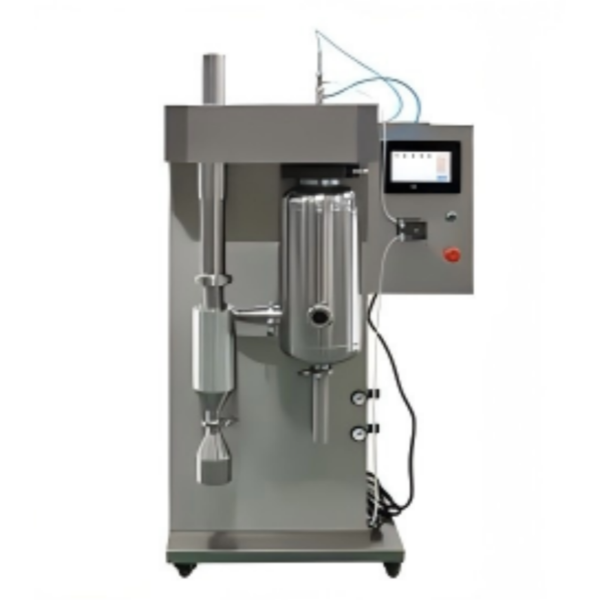

Small Spray Dryer GA-B106

Penerangan

Penerangan Produk:

This small spray dryer is primarily suitable for producing micro-particle powders in laboratories of universities, research institutes, and food, pharmaceutical, and chemical companies. It has broad applicability for all solutions, including emulsions and suspensions. It is also suitable for drying heat-sensitive materials such as biological products, biopesticides, and enzymes. Because the sprayed material is only exposed to high temperatures when it is formed into atomized particles, it is only heated momentarily, ensuring that the active ingredients of these materials remain intact after drying.

Ciri-ciri Utama:

1. Operated with a large 7-inch color touchscreen. After setting the spray process parameters, the machine automatically operates. The touchscreen displays an animation for a clear display of the operating process, and it has a built-in power-off memory function.
2. Automatic fan stop function: After the instrument is finished operating, the fan should remain on to allow for partial cooling of the glass. This machine is intelligently programmed to automatically shut down the fan when the inlet temperature drops below 30°C, eliminating the need for manual shutdown.
3. The machine has a misoperation protection function. If the fan and heater switches are used in the wrong order, the machine will automatically warn you to prevent damage from novice operation. 4. A built-in, oil-free air compressor ensures a uniform powder particle size distribution, excellent flowability, and low noise.
5. The two-fluid spray atomizer is constructed entirely of stainless steel, resulting in a compact design that requires no auxiliary equipment, making it easy to use and lasting like new.
6. The entire machine is constructed entirely of stainless steel, with the two-fluid spray atomizer, spraying, drying, and collection systems made of transparent borosilicate glass or stainless steel.
7. The feed rate can be adjusted via a peristaltic feed pump.
8. The finished dry powder has a relatively uniform particle size after drying.
9. By adjusting the atomization state, different drying and collection modes can be achieved. 10. For sticky materials, the small spray dryer features a nozzle cleaner (clear needle) that automatically clears nozzle clogs and automatically adjusts the frequency of the clear needle.

Parameter teknikal:

1. Model: GA-Y106
2. Inlet air temperature control: 30°C to 250°C
3. Processing capacity range: 0-1500 mL/h (actual capacity depends on material characteristics)
4. Feed rate: Peristaltic pump adjustable up to 2000 mL/h
5. Minimum feed rate: 50 mL
6. Real-time PID temperature control technology. Inlet and outlet air temperatures are displayed online in real time, with a temperature control accuracy of ±1°C.
7. Drying time: 0.8-1.0 detik
8.Color LCD touchscreen displays parameters: Inlet temperature/Outlet temperature/Peristaltic pump speed/Air volume/Needle frequency
9.Nozzle diameter: Available in 0.5mm/0.8mm/1.0mm/1.2mm/1.8mm, and customizable upon request
10. Power consumption: 3.8kW/220V
11. Dimensi: 1380mm (H) × 770mm (L) × 590mm (W)
