Resistance Meter

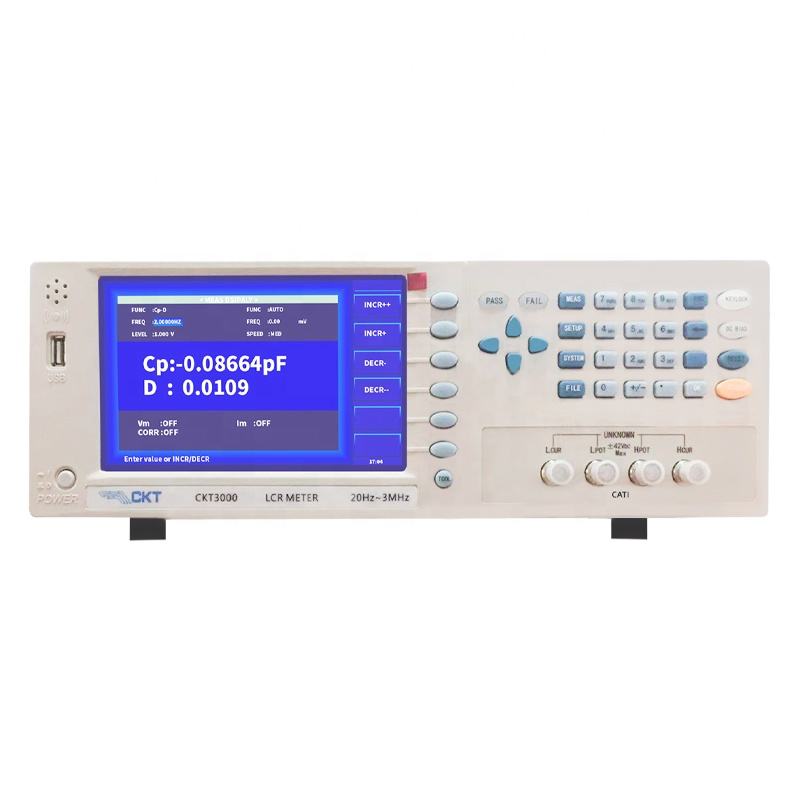

GA10000A/GA8000/GA5000/GA3000/GA2000/GA1000/GA500/AG300/GA200 is precision LCR meter for inspection of all kinds of electronic components. Using 7 inches LCD TFT display. It is a high-speed, broadband, 6-bit test resolution of the impedance measuring instrument, multi frequency points and 0.05% accuracy can meet the requirements of various occasions’ component parameters detection. It is a high cost of quality testing equipment.
Resistance Meter
| SPESIFIKASI | |
|
GA10000A/GA8000/GA5000/GA3000/GA2000/GA1000/GA500/GA300/GA200 Precision Digital LCR Meter |
|
| Parameter | | Z|, |Y|, C, L, X, B, R, G, D, Q, i, DCR |
| Mod Paparan | Direct,Δ,Δ%,V/I |
| Ketepatan Asas | 0.05% ± 5 dgt, DCR:0.1% |
| Kekerapan | GA10000A: 10Hz~10MHz GA8000: 10Hz~8MHz GA5000: 20Hz~5MHz GA3000:20Hz~3MHz GA2000: 20Hz~2MHz GA1000: 20Hz~1MHz GA500: 12Hz~500KHz GA300: 12Hz~300KHz GA20012Hz~200KHz |
| Julat Paparan | Z,X,R:0.01mΩ~99.9999MΩ
DCR:0.001mΩ~99.9999MΩ Y,G,B: 0.00001µS~99.9999S C:0.00001pF~9.9999F L:0.00001µH~9999.99H D:0.00001~9.9999 Q:0.00001~9999.9 q(rad): -3.14159 – 3.14159 q(deg): -179.999° -179.999° |
| Rintangan Sumber | 30Oh, 50Oh (GA1000/2000/3000/5000/8000/10000A), 100Oh,10/CC |
| Julat | Auto, Hold, Manual selection |
| Pembanding | 11-bin sorting (9-bin GD, 1-bin NG, 1-bin AUX) |
| Tahap Isyarat | 10mV~5V (GA1000, GA500/300/200: 5 mV~2V), ketepatan:10%; Constant level:10 mV~1 V, ketepatan:5% |
| DC Bias Source | -5V~+5V; -100mA~+100mA (GA1000, GA500/300/200: 0V,1.5V, 2V), ketepatan: 1% |
| Mod Pencetus | INT, MAN, EXT, BUS |
| Kelajuan | 200t/s, 12t/s, 3 t/s, 1-255 times average is available; GA1000/GA500/GA300/CAG200: 75t/s, 12t/s, 3 t/s |
| List Test | 10 group frequency and level scanning measurement |
| Pelarasan | Open / short / memuatkan |
| Files | U disk copy screen, real-time data storage, which cansupport the FAT16 format, FAT32 file system |
| Antara muka | RS232C, HOST USB, PERANTI USB, HANDLER, Headset interface, Foot switch interface |
| Lain-lain | The frequency response curve analysis; Can save the file to the instrument or U disk |
| CIRI-CIRI UMUM | |
| Bekalan Kuasa | voltan: 110V/220V; Kekerapan: 50Hz – 60Hz |
| Size and Weight | 375mm(W)*135mm(H)*350mm(L)7kg |
| MAKLUMAT PESANAN | |
| Aksesori | Kelvin Test clip; Test fixture; Short-circuit slice; RS232 Communication cable; AC Power Cord |
| Pilihan | SMD patch test fixture; SMD patch test clip |
