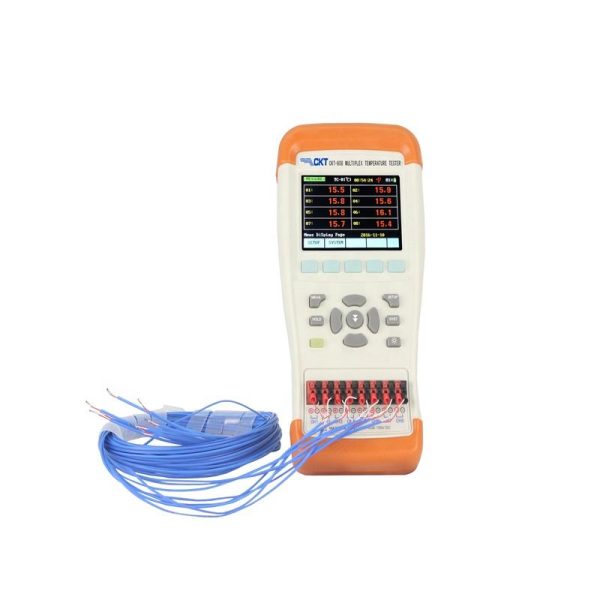

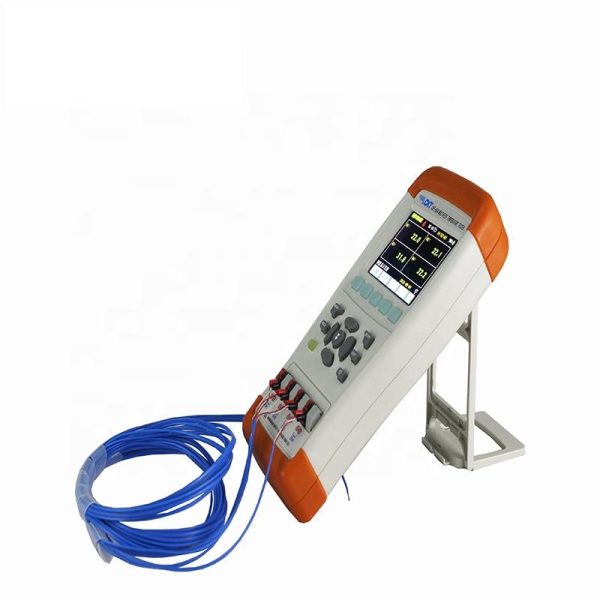

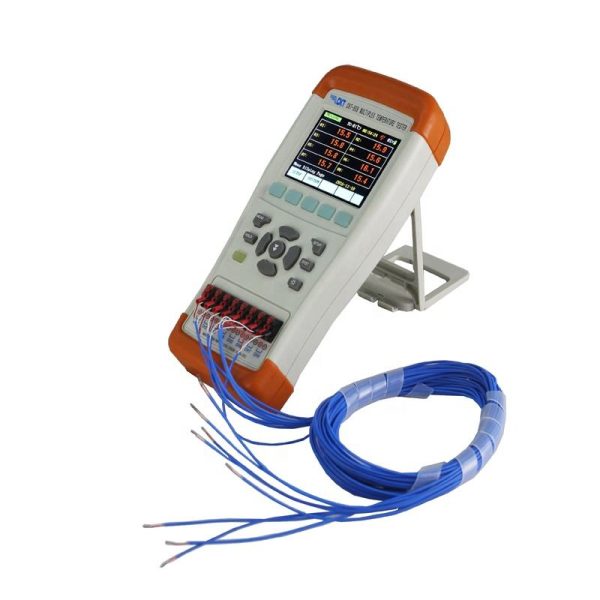

Pencatat Data Suhu Mudah Alih GA-808
- Penerangan
- Siasatan
Penerangan
Temperature Data Logger
Pengenalan ringkas
GA-800 series handheld multi-channel temperature meter adopts high-performance ARM micro processor, boleh mengumpul data suhu berbilang saluran secara serentak dan bertindak balas dengan cepat. GA-800 series has the function of broken thermocouple checking, high/low beep function and communication transmission. Ultra-low power consumption and high density SMD assembly technology. True-color TFT liquid crystal display, keypad and touch screen double control. It is Li- battery powered. komunikasi USB. Switch in both English and Chinese. The standard computer software can realize the data analysis.
Technical parameter
| SPESIFIKASI | |||||
|
GA-808 |
GA-804 |
GA-802 (Discontinued) |
|||
| Pengijazahan | Termokopel: J/K/T/E/S/N/B | ||||
| Ketepatan Asas | 0.2℃± 2 digit (not include thermocouple error) | ||||
| Julat | -200°C~1300°C(variation depend on graduation) | ||||
| Resolusi | 0.1°C | ||||
| Channel | 8 saluran | 4 saluran | 2 saluran | ||
| Kelajuan | Cepat: 100ms/channel; Medium:500ms/channel; Slow: 1s/saluran | ||||
| Pembetulan | Pembetulan ralat untuk setiap saluran | ||||
| Pembanding | High & low beep function | ||||
| Antara muka | Mini-USB interface | ||||
| Option | USB-DISK Interface | ||||
| Perisian | Data acquisition software | ||||
| Simpang Sejuk
Pampasan |
Ketepatan:0.5℃ | ||||
| Lain-lain | 2.8 inches True-color 16M TFT-LCD display, skrin sentuh, komunikasi USB, Set arahan serasi SCPI, switch in both English and Chinese; adjustable back light; automatic power off | ||||
| CIRI-CIRI UMUM | |||||
| Bekalan Kuasa | Input: 100-240V~50/60Hz 0.35A
Pengeluaran: 9V 1A DC |
||||
| Battery Parameters | 8.4V, Li, 1400mA rechargeable battery | ||||
| Charging Time | Single continuous charging time: Max 200Mins | ||||
| Working Time | Brightness 30%≥14 hours, Brightness 50%≥12 hours, Brightness 100%≥9 hours | ||||
| Size and Weight | Outside(mm): 90 (Lebar)x190(Ketinggian)x31 (Kedalaman); Berat badan: 1KG | ||||
| MAKLUMAT PESANAN | |||||
| Aksesori | K termokopel 8/4/2 pasukan(2m/pasukan);
DC power adaptor; Lithium battery; Mini-USB communication cable; Data acquisition software |
||||
