GA-1221 Spray Environment Test Chamber

Penerangan

GA-1221 Spray Environment Test Chamber

Ciri

1.Stationary foot cups
High quality fixed foot cups are used to prevent the equipment from moving due to external forces during the test

2.Core control system
During the test, the water pressure should be adjusted so that the water splashes 150MM from the bottom of the bowl. The bowl should be placed on the ground for utensils normally used on the ground

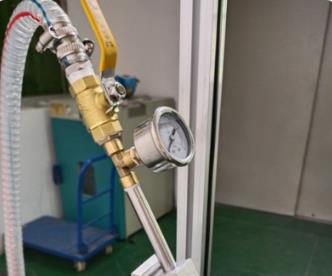

3.Water pressure gauge
The pressure can be adjusted in real time according to the test requirements, and the test effect can be easily viewed at any time

4.outfall
Overflow port If the liquid continues to be injected into the container when the liquid level reaches the overflow port, the injected liquid will discharge the container through the overflow port

GA-1221 Spray Environment Test Chamber

Parameter

Standard rujukan
IPXO, IPX1, IPX2, IPX3, and IPX4 appliances shall be subjected to the following splash test for 5min using the device shown in Figure 101. During the test, the water pressure should be adjusted so that the water splashes 150mm from the bottom of the bowl. For utensils normally used on the ground, the bowl is placed on the ground. For all other appliances, the bowl is placed on a horizontal supporting surface 50mm below the lowest side of the appliance to move the bowl around the appliance so that water can splash onto the appliance from all directions. Care should be taken not to spray water directly into the appliance.
