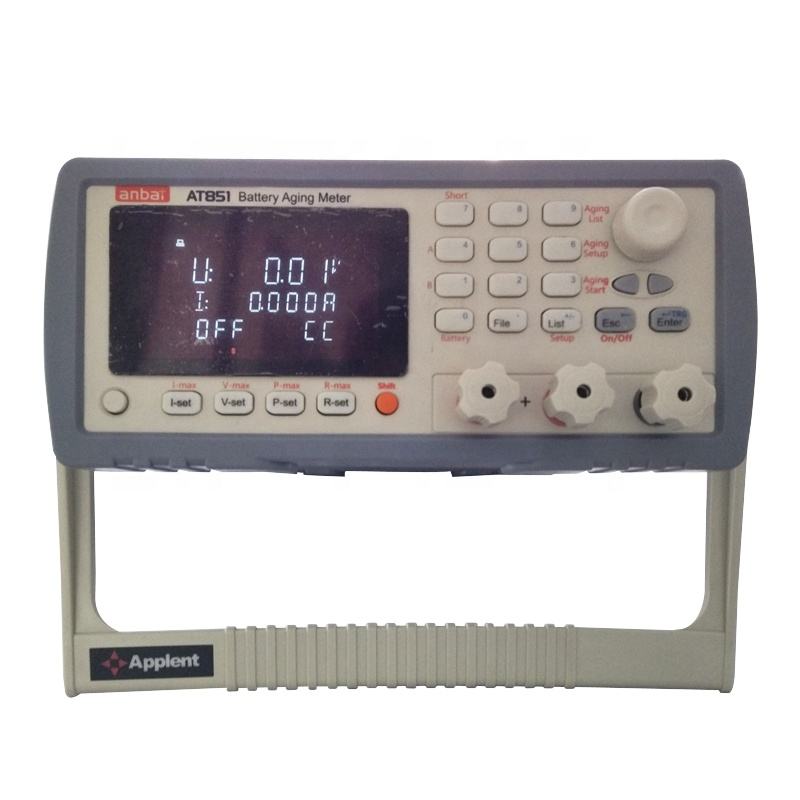

Battery Aging Test Equipment
Pengenalan ringkas
AT851 battery lifetime meter can be widely used to test battery capacity, li-battery, aging of NI-MH battery, pengecas, switch power supply and aging of linear power supply. Can meet battery factories’ requirements of testing various kinds of batteries and national standard battery lifetime testing function. AT851 has an independent electronic load that provides CC, CV, CP and CP working models. It supports the traditional RS232C interface. SCPI makes computer programming easier.

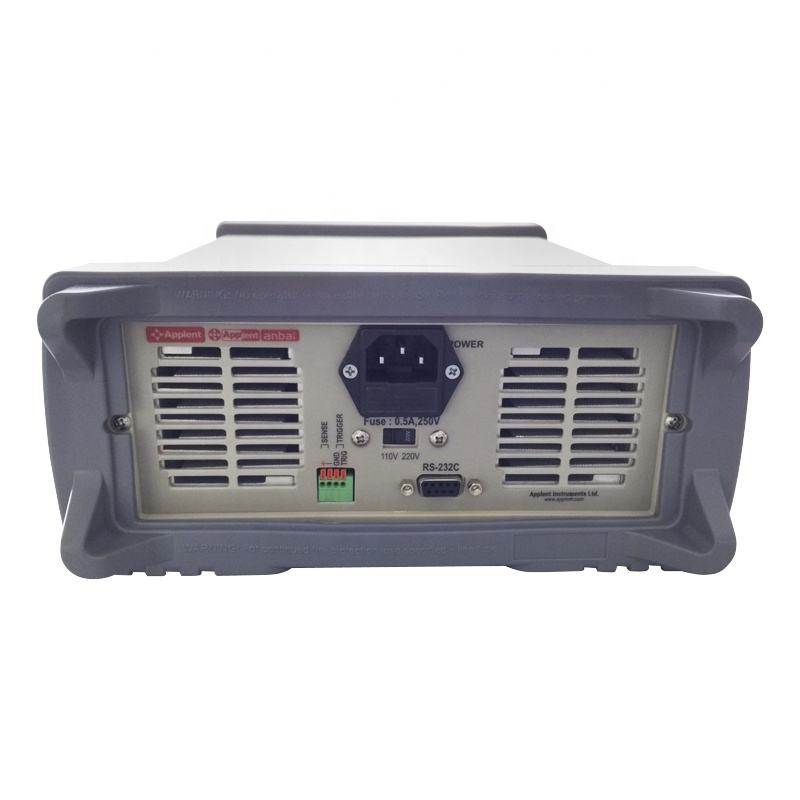

Battery Aging Test Equipment
|
SPESIFIKASI |
|
|
AT851 Battery Lifetime Meter |
|
| Rated Input | 300W, 120V, 30A |
| CC | 0 ~ 3A, Resolusi: 0.0001A; Ketepatan: 0.05%
0 ~ 30A, Resolusi: 0.001A; Ketepatan: 0.1% |
| CV | 0 ~ 18V, Resolution 0.001V; Ketepatan: 0.05%,
0 ~ 120V, Resolution 0.01V; Ketepatan: 0.05%, |
| CP | 0 ~ 100W, Resolusi: 0.001W; Ketepatan: 1%,
>100W, Resolusi: 0.01W; Ketepatan: 1% |
| CR | 0.1 ~ 99Ω, Resolusi: 0.01Oh;Ketepatan: 1%
100 ~ 4kΩ, Resolusi: 0.1Oh;Ketepatan: 1% |
| Monitoring | Voltmeter accuracy:0.02%; ammeter accuracy: 0.1%; battery charging time: 0 – 1000 Jam; battery power check: 0 – 999AH, battery rest time: 0 – 1000 Jam; battery cycle times: 1 – 10000 kali; kelajuan: 3 kali/saat, 10 times/times |
| Short-circuit Test | Current about 30A, the internal resistance of about 40mΩ |
| Transition | 10 files, 0.1Hz ~ 1kHz |
| List Test | 10 dokumen, 100 steps / file |
| Test file | 10 files, 20 steps / file |
| Trigger | Dalaman, BUS trigger, Luaran |
| Antara muka | RS232 and handler interface |
| Programmable Language | SCPI and simple communication protocol |
| Protection | Tahap 5 safety protection |
| Lain-lain | VFD display, 4W remote sensing capability, intelligent cooling |
|
CIRI-CIRI UMUM |
|
| Bekalan Kuasa | voltan: 220V AC. Kekerapan: 50Hz. Kuasa: 20VA (Maks). Pilihan: 110VAC |
| Saiz | 216mm (Lebar)*88mm (Ketinggian)*300mm (Kedalaman), 3kg |
|
MAKLUMAT PESANAN |
|
| Accessory | ATL509A test cable
Kord kuasa AC |
