설명

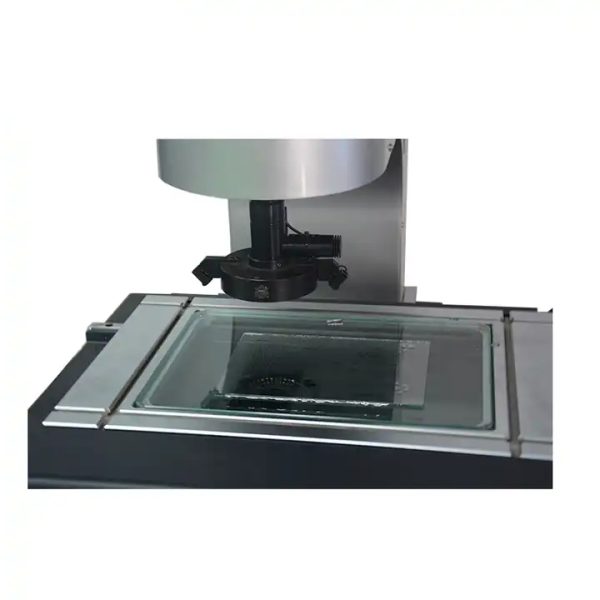

VMS-3020G 영상측정기
사용
Applied mainly for 2D measurement and can support some specific 3D measurement as necessary, telectronics, instrument, 미터, watch, light industry, plastics as well as measuring chambers, laboratories of institutes and universities, research institutes, metrological verification departments and workshops, 등.
VMS-3020G 영상측정기
특징
- Varieties of lighting solutions to meet various or specific requirements of customers.
2. Effectively support data processing, 데이터 표시, data input, and data output
3. Linear scales supports the resolution of 0.5um
4. 레이저 인디케이터를 통해 측정된 측정물의 특정 위치를 감지합니다., 위치 지정 및 작동이 편리합니다..
5. Foot-switch is matched with measuring software, which makes operation easier.
VMS-3020G 영상측정기
사양
| 모델 | VMS-1510G | VMS-2010G | VMS-2515G | VMS-3020G | VMS-4030G |
| Metal Worktable Size(mm) | 354*228 | 404*228 | 450*280 | 500*330 | 606*466 |
| Glass worktable size(mm) | 404*228 | 260*160 | 306*196 | 350*250 | 450*350 |
| 여행하다(mm) | 150*100 | 200*100 | 250*150 | 300*200 | 400*300 |
| Axis X,와이,Z Resolution | 0.5μm | ||||
| 정확성(μm) | E1xy=(2.5+L/100)μm | ||||
| 치수(길이*세로*높이)mm | 540*560*850 | 540*560*850 | 760*600*900 | 760*600*900 | 970*670*940 |
| 무게(킬로그램) | 100 | 110 | 120 | 140 | 150 |
| Axis Ztravel(mm) | 200(can be customized to 300) | ||||
| Video System | 카메라: 1/3″ Color CCD Camera | ||||
| 줌 렌즈 배율: 0.7X-4.5X Total magnification: 26.6X-171X | |||||
| Field view: 8.1mm-1.3mm | |||||
| 전원공급장치: AC 100V-240V 50/60Hz Power:50여(computer excuded) | |||||
| 옵션 | 1.0X lens cone(기준) | 0.5X lens cone(선택 과목) | 작업 거리 (mm) | ||
| Zoom Lens | 0.7X-4.5X | 0.7-4.5 | |||
| Additional Lens | Magnifeication | Object view(mm) | 확대 | Object view(mm) | |
| 0.5엑스 (선택 과목) | 10X-64X | 22-3.4 | 50X-32X | 44-6.8 | 175 |
| 1.0엑스(기준) | 20X-128X | 11.1-1.7 | 10X-64X | 22-3.4 | 92 |
| 2.0엑스(선택 과목) | 40X-256X | 5.5-0.9 | 20X-128X | 11.1-1.7 | 36 |
VMS-3020G 영상측정기
사용
Applied mainly for 2D measurement and can support some specific 3D measurement as necessary, telectronics, instrument, 미터, watch, light industry, plastics as well as measuring chambers, laboratories of institutes and universities, research institutes, metrological verification departments and workshops, 등.
VMS-3020G 영상측정기
특징
- Varieties of lighting solutions to meet various or specific requirements of customers.
2. Effectively support data processing, 데이터 표시, data input, and data output
3. Linear scales supports the resolution of 0.5um
4. 레이저 인디케이터를 통해 측정된 측정물의 특정 위치를 감지합니다., 위치 지정 및 작동이 편리합니다..
5. Foot-switch is matched with measuring software, which makes operation easier.
