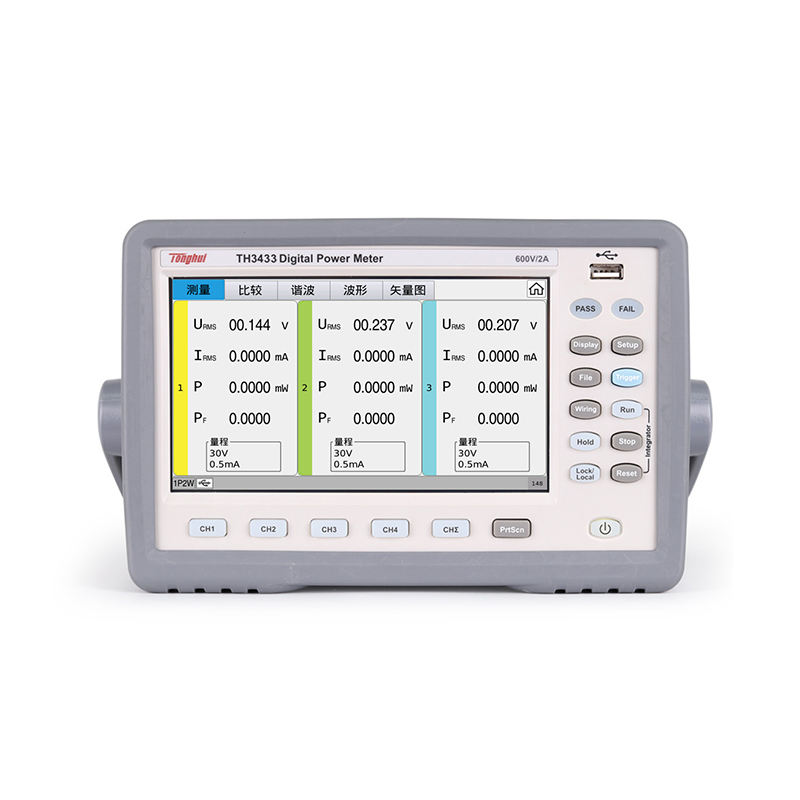

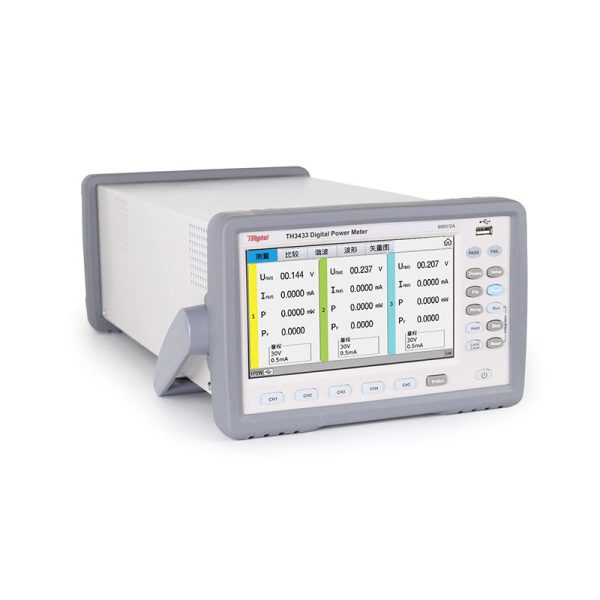

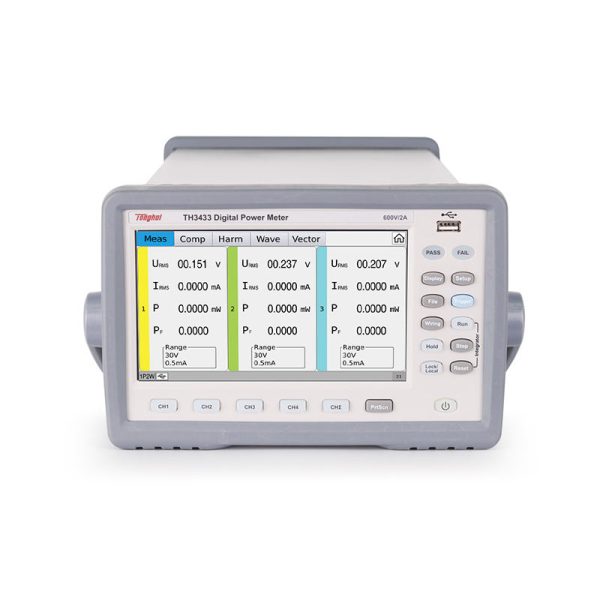

Tonghui TH3433 Digital Power Meters
- 설명
- 문의
설명
|
모델 |
TH3431 | TH3433 | TH3434 | |
| Number Of Channels | 1 | 3 | 4 | |
| 표시하다 | 7-Inch (800×480) Color TFT Resistive Touch Screen | |||
| Wiring Mode | One-Phase Two-Wire (1P2W) | One-Phase Two-Wire (1P2W) | ||
| One-Phase Three-Wire (1P3W) | ||||
| Three-Phase Three-Wire (3P3W) | ||||
| Three-Phase Four-Wire (3P4W) | ||||
| Three-Voltage Three- 현재의 (3V3A) | ||||
| Basic Features | 교류 | 와이 | ||
| DC | 와이 | |||
| Precision Type | 와이 | |||
| Micro Current | 와이 | |||
| Harmonic Analysis | 와이 | |||
| Electric Energy Test | 와이 | |||
| 디스플레이 모드 | 데이터 | 와이 | ||
| Integration Data | 와이 | |||
| Waveform Graph | 와이 | |||
| Vector Analysis | 와이 | |||
| Histogram | 와이 | |||
| 기본 정확도 (One Year) | ||||
| 전압 | 기본 정확도 | 0.15% 독서 + 0.2% 범위 | ||
| 해결 | 0.001V | |||
| 현재의 | 기본 정확도 | ± (0.15% 독서 + 0.1% 범위) | ||
| 해결 | 0.1엄마 | |||
| 주파수 범위 | Voltage/Current Accuracy | |||
| DC | ± (0.1% 독서 +0.2% 범위) | |||
| 0.1Hz ≤ Freq < 45헤르츠 | ± (0.1% 독서 +0.2% 범위) | |||
| 45Hz ≤ Freq < 66헤르츠 | ± (0.1% 독서 +0.1% 범위) | |||
| 66Hz ≤ Freq < 1khz | ± (0.1% 독서 +0.2% 범위) | |||
| 1khz ≤ Freq < 10khz | ± ((0.07*Freq) % 독서 +0.3% 범위) | |||
| 10khz ≤ Freq ≤ 100khz | ± (0.5% 독서 +0.5% 범위) ± [0.04*(Freq – 10케이)] % 독서 | |||
| 입력 | ||||
| 전압 | 범위 | 1V – 600V | ||
| 범위 | 15V/30V/60V/150V/300V/600V | |||
| Minimum Resolution | 0.001V | |||
| 입력 임피던스 | 2MΩ | |||
| Allowed Max Input | 1000V (1에스) | |||
| 700V(Continuous) | ||||
| 현재의 | 범위 | 0.01엄마 – 2ㅏ | ||
| 범위 | 0.5mA/1mA/2mA/5mA/10mA/20mA | |||
| 입력 임피던스 | 4오 | |||
| 범위 | 0.05A/0.1A/0.2A/0.5A/1A/2A | |||
| 입력 임피던스 | 40mΩ | |||
| Minimum Resolution | 0.1하다 | |||
| Allowed Max Input | 3ㅏ(1에스) | |||
| 2ㅏ(Continuous) | ||||
| 힘 | 범위 | 0.01밀리와트 – 1.2kW | ||
| Minimum Resolution | 0.001밀리와트 | |||
| 빈도 | 범위 | Fundamental Frequency Range: DC/0.1Hz – 100kHz, Filter 500Hz | ||
| Minimum Resolution | 0.01헤르츠 | |||
| Power Factor | 범위 | – 1.000 – 1.000 | ||
| Minimum Resolution | 0.001 | |||
| Harmonic Analysis | 범위 | 10Hz-1.2kHz | ||
| 정확성 | ± (5% 독서 +0.3% 범위) | |||
| Energy Integration | 범위 | 0 – 99999kWh | ||
| 해결 | 0.001Wh | |||
| 정확성 | ± (0.2% 독서 +0.3% 범위) | |||
| Energy Timing | 범위 | 0 – 9999:59:59 | ||
| 해결 | 1에스 | |||
| 정확성 | ± 0.05% | |||
| Update Rate | Optional 0.1s/0.25s/0.5s/1s/2s/10s/20s | |||
| Lock Function | Data Lock | |||
| Range Method | Auto/Manual | |||
| 입력 임피던스 | ≥ 2MΩ (Voltage Input) | |||
| 비교기 | Over-Limit Sound And Light Alarm | |||
| 산출 | 8 Channel Programmable Relay Output | |||
| Measurement Assistance Function | ||||
| Data Buffer Storage Function | The Test Results Are Stored In A U Disk, And Statistical Analysis Can Be Performed On The PC Side | |||
| Save/Load Function | The Saving Of Setting Data Is Divided Into Measurement Parameter Setting And System Parameter Setting | |||
| Keyboard Lock Function | Front Panel Keys And Touch Screen Operations Can Be Locked To Effectively Prevent Misoperation | |||
| Communication Interface | Serial Communication | RS232C/RS485 Optional | ||
| USB HOST | Universal Serial Bus Socket, Type A; FAT16/FAT32 Format. U Disk Storage or Designated Wireless Network Card (WIFI Supports RTL8192 And MT7601) And Other Equipment Support | |||
| USB DEVICE | Universal Serial Bus Socket, Small Type B (4 Contact Positions); Compatible With USBTMC – USB488 And USB2.0, Female Connector For Connecting External Controllers. Optional CDC Mode or TMC Mode. | |||
| 랜 | 10/100baset Ethernet, 8 Pins, Stable Communication. | |||
| HANDLER | 8 Channel Programmable Relay Output | |||
| 저장 | USB Waveform, Setting File | |||
| 전원공급장치 | AC220V± 10%, 50/60Hz± 5%, Soft Power Switch | |||
| Size W*H*D | Working Size | 236mm*154mm*475.5mm | ||
| Shelf Size | 215mm*132mm*441mm | |||
| 무게 | 8.1킬로그램 | |||
