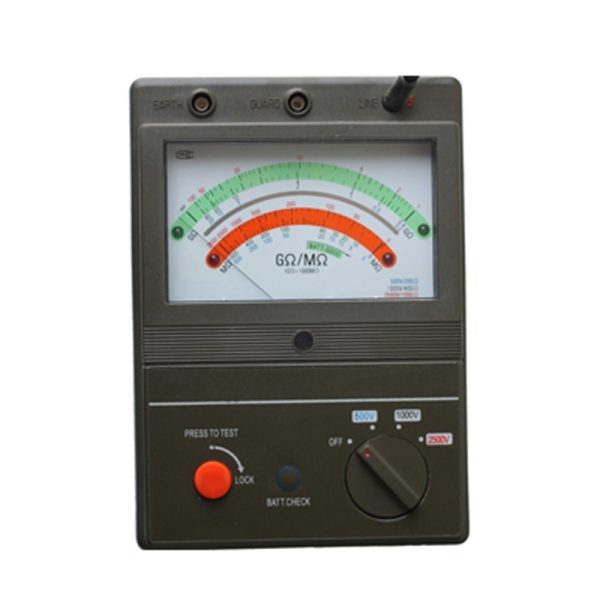

KG2520 Pointer Type Resistance Tester
1

KG2520 Pointer Type Resistance Tester

KG2505 Insulation Resistance Testing Machine KG2505 Insulation Resistance Testing Machine
KGDT-10 Ground Lead Conduction Machine KGDT-10 Ground Lead Conduction Machine

범주:

설명

KG2520 Pointer Type Resistance Tester

제품소개
KD2520 pointer type insulation resistance tester is suitable for high voltage power equipment, 케이블, 변압기, power capacitors and high voltage switches and other electrical test equipment insulation test. The instrument uses battery power supply, has the advantages of small size, 가벼운 무게, 휴대하기 쉬운, 등. The application of automatic range conversion circuit inside the instrument greatly improves the measuring limit of the instrument.



KG2520 Pointer Type Resistance Tester

제품특성
1, This instrument is suitable for high voltage power equipment, 케이블, 변압기, power capacitors and high voltage switches and other electrical test equipment insulation test.
2, the instrument uses battery power, with small size, 가벼운 무게, easy to carry and other advantages, the use of automatic range conversion circuit inside the instrument greatly improves the measurement limit of the instrument.
3, rigid packaging shell as a necessary accessory, the probe shell of the instrument is a tight structure of plastic, with good sealing and water resistance.
4, low power consumption design, the maximum current consumption of 80mA,8 1.5V 5 batteries can work continuously for 7 hours at the maximum load, or the minimum load, working for 12 시간.
5, the new type of table with rechargeable battery has AC, DC dual-purpose function, short circuit current above 2mA, equipped with high capacity nickel-metal hydride battery. Professionally made nickel-metal hydride charger, with over voltage, over current charging automatic protection function. When fully charged, the charger changes from red to green. No need to wait. Fast charging speed, improve work efficiency.



KG2520 Pointer Type Resistance Tester

제품 매개변수
DC test voltage 500V 1000V 2500V 5000V 10000V
The list voltage of each system corresponds to the measuring range 0-0.5GΩ/

0.2-20 GΩ

automatic transfer

 0-1 GΩ/

0.4-40 GΩ

automatic transfer

 0-2 GΩ/

1-100GΩ

automatic transfer

 0-5 GΩ/

2-200GΩ

automatic transfer

 0-10 GΩ/

4-400GΩ

automatic transfer




정확성

 온도: 23 ° C ±5 ° C Humidity: ≦70%
20 m Ω Ω – 10 g
±5% of the reading
Other range time
±10% of the reading		 온도: 23 ° C ±5 ° C Humidity: ≦70%
40 m Ω Ω – 20 g
±5% of the reading
Other range time
±10% of the reading		 온도: 23 ° C ±5 ° C Humidity: ≦70%
40 m Ω Ω – 20 g
±5% of the reading
Other range time
±10% of the reading		 온도: 23 ° C ±5 ° C Humidity: ≦70%
100 m Ω – 50 g
±5% of the reading
Other range time
±10% of the reading		 온도: 23 ° C ±5 ° C Humidity: ≦70%
400 m Ω – 200 – g
±5% of the reading
Other range time
±10% of the reading		 온도: 23 ° C ±5 ° C Humidity: ≦70%
400 m Ω – 200 – g
±5% of the reading
Other range time
±10% of the reading
수출
전압		 The temperature is 23 ° C ±5 ° C and the humidity is ≦70%. The other values are ±10%
Operating temperature and humidity -10℃-40℃ ≦85%
Storage temperature and humidity -20℃-60℃ ≦95
The insulation impedance between the circuit and the housing is greater than 1GΩ
The voltage between the circuit and the housing is 5000VAC, withstanding for 1 분
치수 200(엘)*140(여)*80(시간)mm
치수 200(엘)*140(여)*80(시간)mm
전원공급장치 8 1.5V(No.5) alkaline eco-friendly batteries
부속품: Engineering plastic abrasive box (or aluminum alloy packing box) alkaline environmental protection battery, test wire, product manual, certificate
The rechargeable table comes with 8 rechargeable batteries and a professional charger
