KDZD565 Six-clamp phase voltammeter

설명

phase voltammeter

The company according to the needs of field testing, timely development of KDZD565 multi-function vector analyzer.

KDZD565 multi-function vector analyzer integrates multiple functions and has a variety of measurement functions, the
main measurement functions are:
Phase meter function – check the correctness of main variable differential protection and busbar differential;
Electrical parameter tester function – test the parameters of the power system;
Metering wire detector function – to detect three-phase three-wire power metering wire inspection;
Harmonic content test function – field test of harmonic content of voltage and current;
Oscilloscope function – Display bar chart, as a simple oscilloscope, used to observe the test signal waveform.

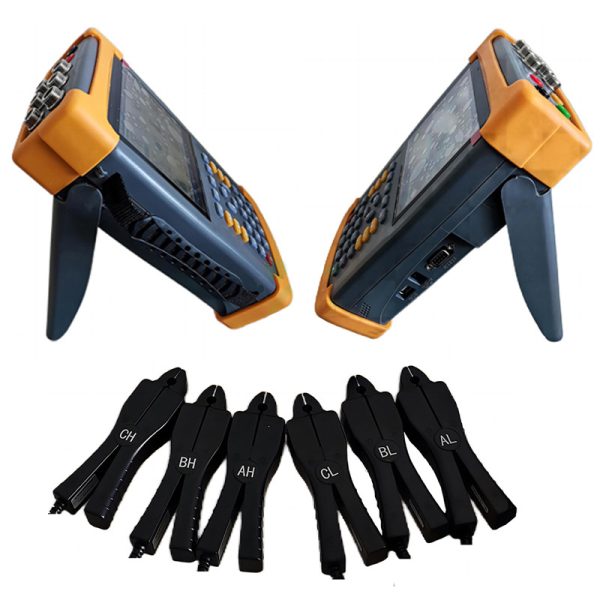

The measuring instrument adopts dsp AC sampling, can measure 3 voltage and 6 current analog at the same time, the instrument 9 channel vector display on the same screen, human-machine dialogue interface is friendly; Independently developed hand-held mold structure, high strength engineering plastic, strong and light, 사용하기 쉬운, greatly convenient for field use, is the power worker’s right-hand assistant.

phase voltammeter
기능적 특성
1, three voltage, six current vector on the same screen display, for the differential protection device test only one connection can complete the drawing of the hexagonal diagram, 작업 효율성을 크게 향상시킵니다.; In the case of small space and difficult wiring, the double-clamp method can be used for multiple measurements and finally draw a complete hexagonal diagram.
2, the use of clamp current transformer connection, no need to disconnect the current circuit, safe and convenient.
3, can carry out vector analysis of complex protection devices, judge whether the wiring is correct, and give the correct wiring diagram for comparison.
4, conventional electrical parameters can be tested, while displaying three-phase voltage, three-phase current, three-phase active power, three-phase apparent power, three-phase phase Angle; The voltage amplitude, current amplitude and power value of the primary side of the transformer can be directly read and converted.
5, can carry out three-phase three-wire high-voltage metering device error wiring check, can analyze and judge the three-phase three-wire 48 kinds of wiring, directly give the analysis results; Investigate and punish the means of stealing electricity by maliciously changing the metering connection to effectively avoid the loss of electricity charges.
6, can carry out harmonic analysis of the measured signal on the spot, can analyze the content of 2-21 harmonics, and automatically calculate the total harmonic distortion degree.
7, 대형 스크린, high brightness color LCD display, Chinese graphic menu and operation prompts to achieve friendly human-machine dialogue, touch the silicone button to make the operation more comfortable, feel better, wide temperature LCD with brightness adjustment, can adapt to winter and summer seasons.
8, large capacity lithium battery power supply, continuous work up to 8 시간.
9, the user can real-time test data in the form of records saved for centralized management, filing, access, can store more than 200 데이터 그룹.
10. The saved records can be uploaded to the background management computer for comprehensive analysis and review.
11, with perpetual calendar, clock function, real-time display of the date and time of the test work.
12, 작은 크기, 가벼운 무게, easy to use on site.
13, reserve USB interface, available instruments to replace flash disks and other mobile storage devices.
