GA3530 GA3530A Insulation Resistance Tester
- 설명
- 문의
설명
Insulation Resistance Tester
소개:
GA3530 series is insulation resistance tester that is controlled by high-performance processor which can be used in various electrical industry, electronic parts, and electronic devices. 6-range test, output voltage can be arbitrarily set to 0~1000V at 1V resolution. It can test resistance of 500Ω~9.9PΩ, the maximum display 99999.
특징
Output voltage range -0V~1500V (CKT3530A only)
Resistance measurement range 500Ω~9.9PΩ
The instrument is equipped with discharge function
Unique surface resistance and volume resistivity test function
Correction function, open circuit clear zero for all ranges
Equipped with multiple interface configuration
Insulation Resistance Tester
APPLICATION

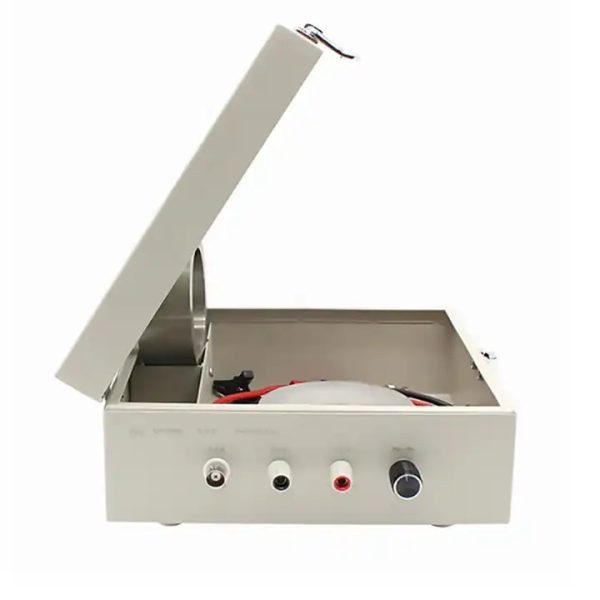

GA3530 series can be used to measure insulation resistance and leakage current of various electronic components, devices, dielectric materials, 전선과 케이블. The matching electrode box can test material surface resistance and volume resistivity.
- 기술적인 매개변수
|
모델 |
GA3530 |
GA3530A |
|
|
표시하다 |
4.3-inch large screen LCD display |
||
|
Test Parameter |
절연저항, 누설 전류, surface resistance, volume resistivity |
||
|
Readback Voltage Accuracy |
0.5%±1V |
||
|
출력 전압 |
Program control 1~1000V, adjust step 1V |
Program control 1~1500V, adjust step 1V |
|
|
범위 |
절연저항 |
500Ω~9.9 PΩ |
|
|
Leakage Current |
2mA~10fA |
||
|
범위 |
7 ranges automatic or manual |
||
|
기본 정확도 |
1% (10M~1G);3% (1G~10G);5%(10G~100G);10%(100G~1T);20%(>1티) |
||
|
테스트 속도 |
1 시간 / 비서, 5 타임스 / 비서 |
||
|
Correction |
Open circuit clear zero for all ranges |
||
|
Timing Charger |
0~999.9S |
||
|
비교기 |
1 group record, judge over upper limit (HI), GD (IN), over lower limit (LO) |
||
|
Trigger |
내부 트리거, 수동 트리거, external trigger, 버스 트리거 |
||
|
상호 작용 |
RS232C interface,핸들러 인터페이스 |
||
|
전원공급장치 |
전압: 198V-240V AC; 빈도: 47HZ-63Hz |
||
|
크기와 무게 |
331mm*329mm*80mm (길이*세로*높이);무게: 대략. 4.1킬로그램 |
||
|
부속품 |
9330,PB36,9800,AC power cord |
||
