설명
GA-ZG50 Paper Cup Compression Tester
소개:

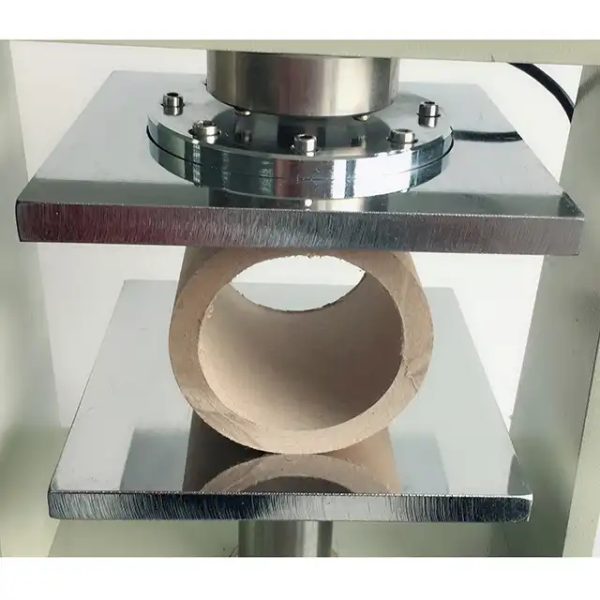

GA-ZG50 Paper tube Compression Tester is applies to the paper core, 종이, chemical fiber paper, 플라스틱, small packets, paper cups and bowls, and other types of small containers of flat compressive strength, deformation detection.Paper Tube Compression Tester GA-ZG50 Paper Tube Compressive Strength Tester
Paper Tube Compression Tester GA-ZG50 Paper Tube Compressive Strength Tester
작업 모드: 1. Strength Test 2. Fixed value Test 3. Endurance test
특징:
1.High precision
Paper Tube Compression Tester GA-ZG50 Paper Tube Compressive Strength Tester
Force transducer with high precision, The factory accuracy is in the < 0.5%, better than ±1% ISO standards.
Paper Tube Compression Tester GA-ZG50 Paper Tube Compressive Strength Tester
2. Long service life
Paper Tube Compression Tester GA-ZG50 Paper Tube Compressive Strength Tester
Precision ball screw drive, the aluminum alloy panels, high quality machining technology and reasonable design, ensure the equipment is durable. Our company has a professional team that specialized in design and programming,We can upgrade the equipment, to ensure that the equipment is high-level.
Paper Tube Compression Tester GA-ZG50 Paper Tube Compressive Strength Tester
3. 쉬운 작동
Paper Tube Compression Tester GA-ZG50 Paper Tube Compressive Strength Tester
High resolution color touch screen in English, human-computer interface. Automatic test with statistical data handling. Using the micro printer, also can connect the computer operation. 컴퓨터에 연결될 때, 테스트 결과를 자동으로 저장할 수 있습니다, also can display test curves of compression and save.
Paper Tube Compression Tester GA-ZG50 Paper Tube Compressive Strength Tester
4. Quick and efficient testing
Paper Tube Compression Tester GA-ZG50 Paper Tube Compressive Strength Tester
Using high-performance stepper motor, the US chip control, guarantee the equipment is precision. Can be preset test speed and return speed, make the test more quickly and efficiently.
Paper Tube Compression Tester GA-ZG50 Paper Tube Compressive Strength Tester
5. Easy Calibration
Paper Tube Compression Tester GA-ZG50 Paper Tube Compressive Strength Tester
Enter the calibration test program, put the standard sensor between the upper and lower pressure plate, can get the accuracy of the calibration value for instrument. Convenient user or measurement, 교정 부서 (제 3 자) 표준 가중치 교정 값.
표준:
QB/T1048, ISO 3035. ISO 3073. ISO 7263. GB/T 2679.8,GB/T 6546-1998,GB/T 6548, GB/T 2679
GA-ZG50 Paper Cup Compression Tester

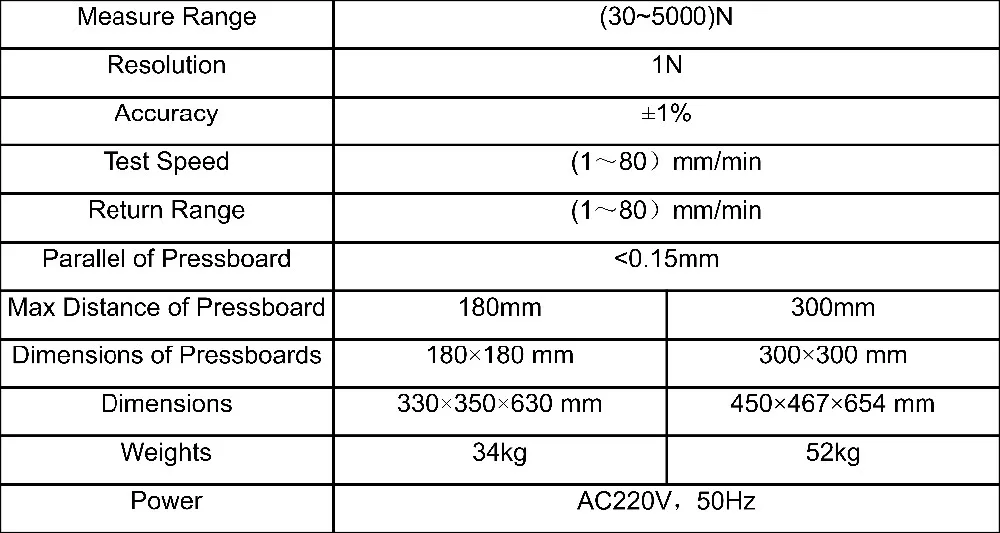

기술적인 매개변수:
