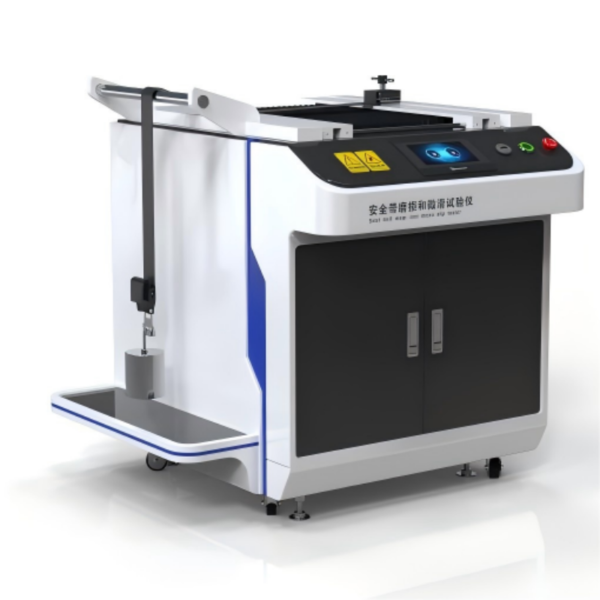

GA-Y108 Automotive Seat Belt Webbing Abrasion Resistance Tester

설명

나. 제품 설명:

The Automotive Seat Belt Webbing Abrasion Resistance Tester is suitable for testing the abrasion resistance of various webbings and seat belts. The test principle involves rubbing the webbing back and forth between two corners of a hexagonal rod a certain number of times. The degree of wear is then observed to determine product quality.

II. Product Application:

The equipment is designed in accordance with ASTM D6770 and GB14166-2013, “Seat Belts and Restraint Systems for Adult Occupants in Motor Vehicles,” for abrasion resistance testing of automotive webbing.

III. 특징:

간단한 작동, automatic testing, automatic shutdown upon specimen damage, and automatic data storage.

IV. 기술적인 매개변수:

제어 시스템: PLC
User Interface: 7-인치 컬러 터치 스크린, Chinese/English switching
Test Stroke: 300 ± 20 mm
Webbing Test Width: 108 mm
테스트 속도: 30 times/± 2 분
짐: (for Mainland China) 2.36 ± 0.05 킬로그램, 1.5 ± 0.05 킬로그램, 3 sets each
Hexagonal Bar: 6.35 ± 0.03 mm, radius 0.5 ± 0.1 mm
가중치: Quantity selected based on workstation: 900 g ± 60 g, 4500 N, 1800 g ± 60 g; other weights can be customized
Roller: 영형 400 mm
Drive: 모터
Test Fixtures: 6 세트
Simultaneous Test Capacity: Six test pieces
Friction Angle: 85 ± 2°
Volume Dimensions: 1100 엑스 750 엑스 1000
무게: Approximately 160kg
전원공급장치: AC220V 5A

V. 부속품:

One instruction manual, one warranty card, one hexagonal rod, and one hexagonal screwdriver set
