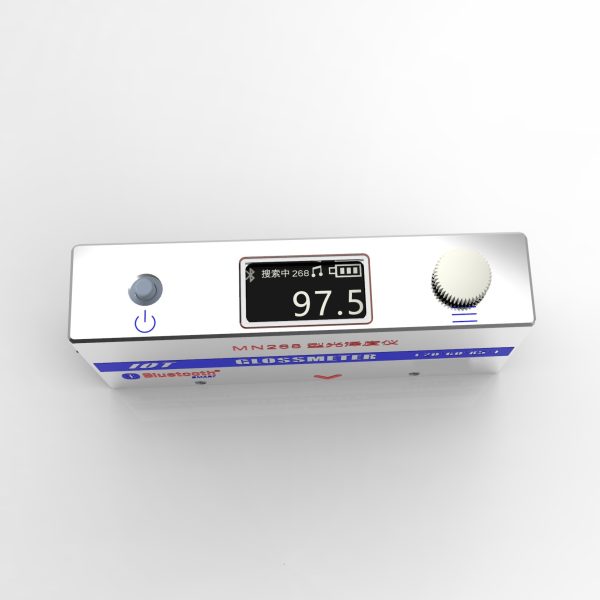

GA-MN268 Paint Glossmeter

제품소개
Model MN268 mirror gloss meter is a small portable machine, its technical parameters conform to the national standard GB9754-88, GB9966.5 and international standard ISO2813. 각
All the performance indicators meet the requirements of national JJG696-2002 (Calibration Regulation of mirror gloss meter).

This product is suitable for the measurement of gloss of paint, 페인트, 잉크, 플라스틱, 결석, 종이, 타일, enamel and other flat products.



GA-MN268 Paint Glossmeter

특징

1. Small size full function multi-angle iot gloss meter.
2. Using a number 5 배터리 (rechargeable battery or alkaline battery), about tens of thousands of data can be measured.
3. Bluetooth BLE communication, can be connected with the mobile phone test, and the use of the machine is no different.
4. No waiting time, stable value, no drift, easy to measure quickly.
5. Adapt to MyGloss APP for Android phone to realize multi-functional data processing such as storage statistics.



GA-MN268 Paint Glossmeter

메모:
1. 사용시 직사광선을 피해주세요, 그렇지 않으면 측정 정확도가 영향을 받습니다..
2. 계측기의 표준판은 깨끗하게 유지되어야 합니다.. 손가락으로 표면을 만지지 마십시오.. 표면이 얼룩진 경우, 기기 오류가 증가하고 판독값이 부정확해집니다.
헤드페이퍼나 무수에탄올로 닦아주세요.
3. 악기의 안정성이 높기 때문에, 기기를 자주 교정할 필요가 없습니다., 연속 사용 후에는 한 번 다시 교정하는 것이 좋습니다. 2 시간.
4, 배터리는 제때에 교체되어야 합니다, 그렇지 않으면 장기 보관, 오래된 배터리에서 폐액이 흘러나올 수 있습니다., 악기에 손상을 입히는 행위.



GA-MN268 Paint Glossmeter

매개변수

측정 범위 20°0~2000Gs/60°0~1000Gs/85°0~160Gs
안정 Less than ±0.4Gs/30Min
표시 오류 Less than ±1.5Gs
제로 편차 자동 제로 안정화 기능 포함, 0을 조정할 필요가 없습니다
작동 전원 공급 장치 One No. 5 배터리 (AA) alkaline or rechargeable battery
작동 전압 0.8V~1.5V
Beam Angle 20° 60° 85°
스팟 사이즈 20°10x10mm/60°10x20mm/85°7x24mm
Measuring port size 11x54mm
서비스 조건 환경 온도:0℃~40℃
상대습도: 이하 85%
메인 엔진 크기 (엘)142mm x (여)32mm x (시간)64mm
Standard board box size (엘)67mm x (여)46mm x (시간)13mm
무게 320g
Standard box weight 32g (whiteboard)/ 45g (blackboard)
softWare adapter My Gloss APP: 2.0(기계적 인조 인간 4.1)
