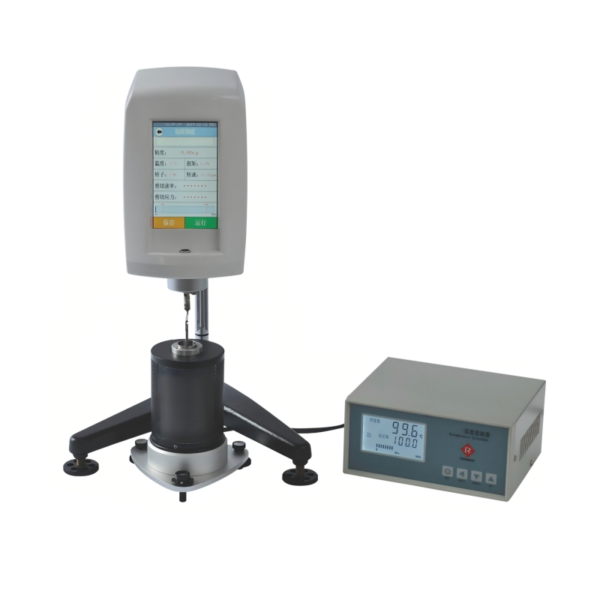

GA-D127 Brookfield Viscometer

설명

GA-D127 Brookfield Viscometer

Function Introduction

Designed and manufactured according to the requirements of T0625 “Brockfield Rotational Viscosity Test (Blockfield Viscometer Method)” in standard JTJ052 “Test Procedures for Asphalt and Asphalt Mixtures in Highway Engineering”, this instrument is suitable for measuring the absolute viscosity of Newtonian liquids and the apparent viscosity of non-Newtonian liquids. It can be widely used to measure the viscosity of various fluids such as asphalt, hot melt adhesives, paraffin wax, and polymers.

GA-D127 Brookfield Viscometer

Technical Features:

1. This instrument adopts advanced mechanical design technology, manufacturing process, and microcomputer control technology, ensuring accurate data acquisition, high measurement sensitivity, reliable test results, 편리한 조작, and an aesthetically pleasing design.
2. The display uses a white backlight, high-brightness LCD screen, which can directly display information such as sample viscosity, 로터 번호, and speed, providing clear data display.
3. Test results can be displayed in real time on the screen or printed out. Additionally, it can be connected to a personal computer via its RS232 data communication port.

GA-D127 Brookfield Viscometer

기술적인 매개변수

측정 범위 50 cP–2,000,000 cP
Measurement error ≤±3 (full scale)
Random rotor Four rotors: Nos. 21, 27, 28, 그리고 29
Display information Viscosity value, 온도, 토크, 속도, 로터 번호
Speed rotation 7 selectable speeds: 0.5, 1, 2, 5, 10, 20, 그리고 50
Temperature range Room temperature to 250℃
Temperature accuracy 0.1℃
Interface RS232C
Sample cylinder volume 25mL
Power supply AC220V 50Hz
치수 95*130*155 (excluding base)
