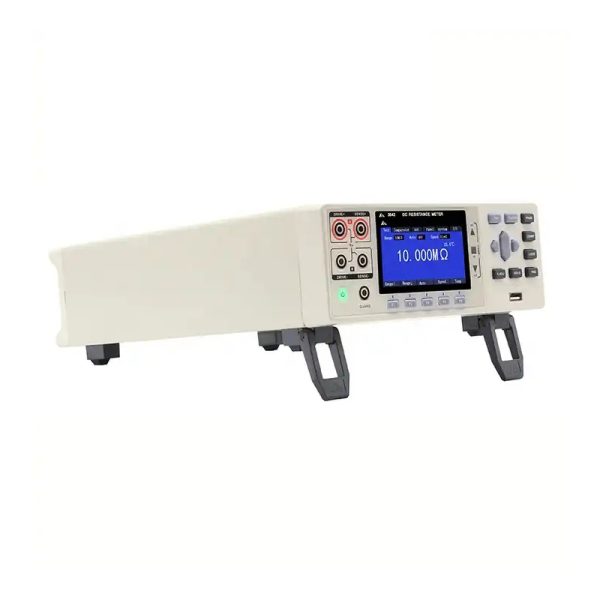

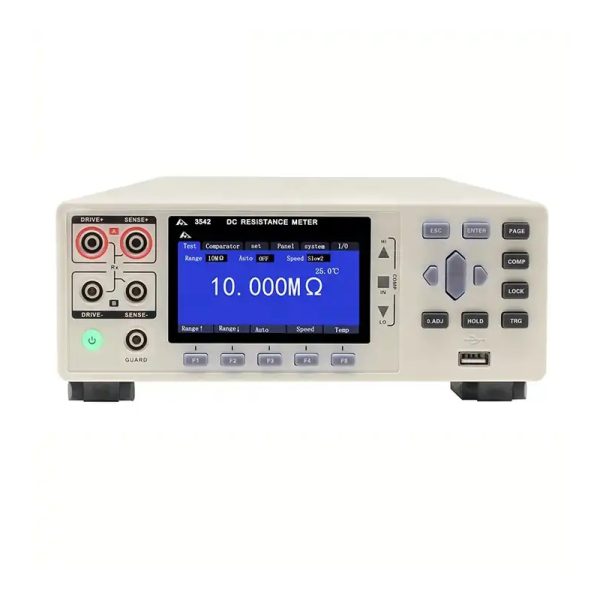

CHT3542 CHT3542-24H Milliohm Meter
- 설명
- 문의
설명
Milliohm Meter
애플리케이션
It has a wide application in measurement of ordinary resistors, coil resistance (large motors, 변압기, and inductors), cable length and diameter detection, pipe welding and metals detection and electric cars to ground connection detection and so on.
Milliohm Meter
기술적인 매개변수
| 모델 |
CHT3542 |
CHT3542-12H |

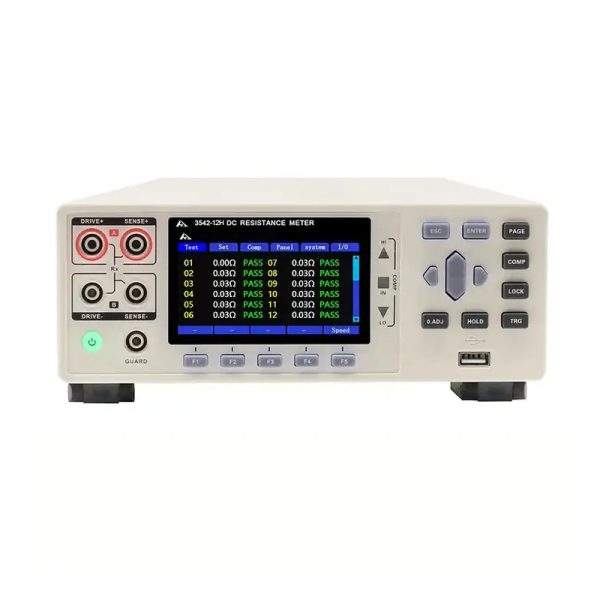

CHT3542-24H |
| Channel No. |
1 |
12 |
24 |
| 기초적인 매개변수 | DC Resistance | ||
| 측정 범위 | 0.1μ ohm~10 M ohm | ||
| Test Current | DC: under 1A~1μA | ||
| 기본 정확도 | ±0.01%rdg.±0.001%f.s. (accuracy varies based on different ranges, please refer to manual for detailed accuracy description) | ||
| 테스트 속도 | Fast(2.2ms), Medium (50헤르츠: 21ms, 60헤르츠: 18ms),
Slow 1(102ms), Slow 2(202ms) |
||
| 온도 | 범위:-10℃~60℃ Accuracy:±1℃ | ||
| 범위 | 20mohm/ 200mohm/ 2000m ohm/ 20ohm/ 200ohm/ 2000ohm/ 20k ohm/
200k ohm/ 2000k ohm/ 10M ohm
|
||
| Correction | Short-circuit clear zero for all ranges | ||
| 비교기 |
10 bins sorting, output HIGH/IN/LOW sorting signal |
||
| Trigger | 내부, I/O, 수동, Bus Trigger | ||
| Other Function
|
Temperature compensation function,temperature conversion, cut-off voltage compensation, compensation (ABS/REF%),
Keypad lock(OFF/menu locked/all locked),supply frequency setup (AUTO/50Hz/60Hz),judge sound setup,auto hold, 평균 가치, front panel save/read,D/A output |
||

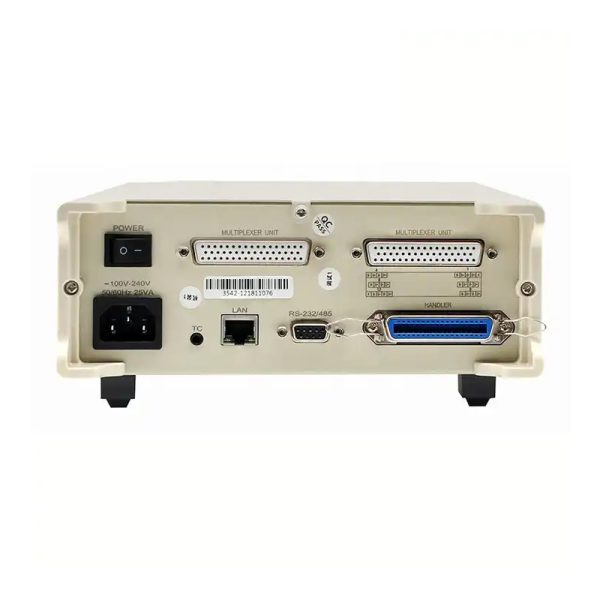

| 상호 작용 | External IO interface, LAN interface, RS232 인터페이스 | ||
| 전원공급장치 | AC 100~250 V, 50~60 Hz, rated power: 40 버지니아 | ||
| Dimension and Weight | 325mm (엘) x 215mm (여)엑스 96.5 mm (디)
4킬로그램 |
||
