Descrizione
Cable Testers
Breve introduzione

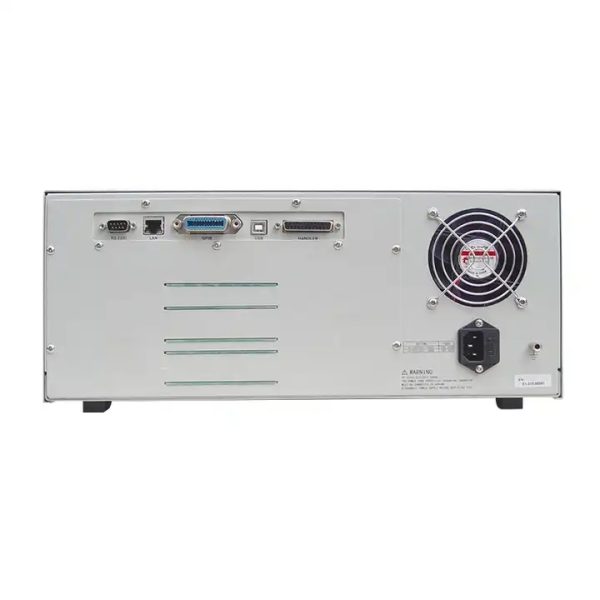

TH8601 series four-terminal wire tester is multifunctional and automatic test system of wire comprehensive parameters, which is exclusively used in quality and connection reliability test for various kinds of cables, wiring harness and winding displacement. This system provides programmable constant current & constant voltage source and high-voltage power supply. The test items include continuity, passive element (inductance, resistance, capacitance and diode), AC/DC withstand voltage, insulation resistance and sll kings of high and low voltage parameters. Adopting advanced LCR figure sampling and channel switching technique of high speed and long life, this system significantly improves the test precision, speed and working life. Also, this system adopts high and low voltage isolation technique, so the testing performance of the insulation resistance is greatly advanced. Various interfaces of RS232, RS485, GPIB, USB, LAN and handler are convenient for users to apply to automatic detect and production line.
- Cable Testers
- Parametro tecnico
-
Modello TH8601 TH8601A Test Pin 128 Pin 64 Pin Test Signal Source Sine Signal Source:50Hz-300kHz, ProgrammableCapacitance Component Test 1Vrms Frequenza: 0.02% 1Vrm, Voltaggio 10% Programmable DC Signal Source:5Vdc MAX 10% Programmable DC Current Source:1-20mA 10% Programmable DC High Voltage Source:1mA Max 5V-100V 10%±1 digit 100Vdc-1000Vdc 5%±1 digit Programmable AC High Voltage Source:10mA Max 50V-100Vac 10%±1 digit 100Vac-750Vac 5%±1 digit Channel Plate on-off scanning Signal Source:5Vdc Prova velocità Transient Open and Short Circuit (128 punti) Sample Standard:10ms Indicates the time of sweeping 64 NET O/S at a time Basic Value of Test Speed:100ms Indicates the measurement time of single passive component or the total measurement time of one cable Capacitance Measurement Allineare: 0.1pF-300pF(sample 10pFmin) 10%±3 digit Allineare: 300pF-1000μF 5%±3 digit Resistance Measurement 10mohm-1Mohm 5%±1 digit Cond./Interval cond. 10mohm-50ohm 5%±5 digit Open andShort Circuit 1kohm-50kohm 10%±1 digit Diode Testing 0-10V 10%±1 digit Insulation Resistance 1Mohm-100Mohm 5%±5 digit 100Mohm-1000Mohm 10%±5 digit DC Leakage Current 1μA-1000μA 5%±2 digit AC Leakage Current 0.01mA-5mA 10%±5 digit
