KDZG-II 60kV2mA High voltage generator

Descrizione

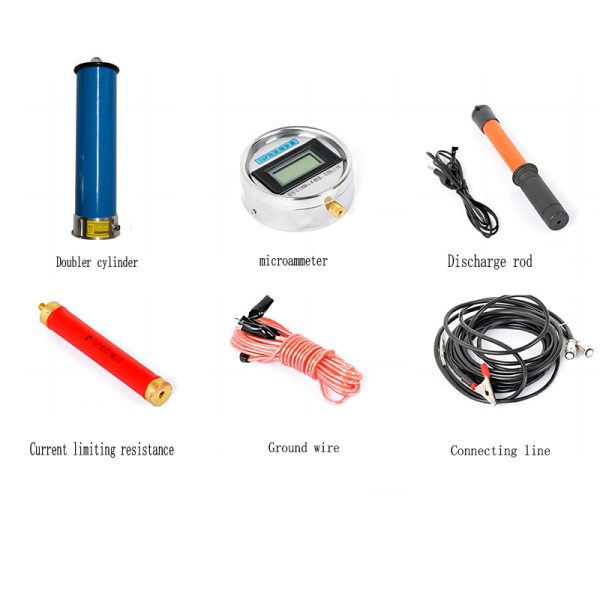

High voltage generator

KDZG-II 60kV2mA DC high voltage generator is a new generation of portable DC high voltage generator designed and manufactured according to the new Chinese power industry standard DL/T848.1-2004 “General Technical Conditions for DC High Voltage Generator”. It is mainly used for DC voltage withstand test of zinc oxide arrester, Cavo di alimentazione, trasformatore, generator and other high voltage electrical equipment in power department, industry and mining, metallurgia, steel and other enterprises.

High voltage generator

Technical features:

● High frequency voltage doubling circuit, PWM pulse width modulation technology and high power IGBT devices.

● Large voltage feedback, high output voltage stability, ripple coefficient ≤1%.

● Full range smooth voltage regulation, voltage regulation fineness good adjustment accuracy ≤0.5%, stability ≤1%, voltage and current error 1% (reading ±0.2KV), current error ±1 word.

● Zero voltage boost potentiometer.

● 75%UDC1mA function button, convenient zinc oxide arrester test, precisione 1% reading ±1%.

● Overvoltage protection using code setting, clear at a glance, error ±1%.

● Pressure doubling using new materials, light and strong. Appearance coated with special insulation material, good electrical performance, strong moisture resistance.

● Folding support foot, large diameter area, buona stabilità.

● Integrated design, high voltage mop cable leading, convenient field test.

● The products meet the technical requirements of DL/T848.1-2004, and have passed the type test of the electrical equipment quality testing center of the Ministry of Power, and strictly implement the enterprise standard factory.

all-in-one

Specifica Parametro tecnico	40/3	60/2	60/3	60/5	80/2	100/2	120/2	120/5
Rated voltage (kV)	40	60	60	60	80	100	120	120
Rated current (mA)	3	2	3	5	2	2	2	5
Rated power (W)	120	120	180	300	160	200	240	600
Chassis weight (kg)	7	10.5	10.5	10.5	11	11.2	11.2	11.2
Pressure doubling weight (kg)	One2.5	2.7	2.7	2.7	3.0	3.3	3.3	3.3
Pressure doubling height (mm)	One400	400	400	400	400	500	500	500
Precisione della misurazione della tensione	Digital display meter ± (1.0% reading ±2 words)
Precisione della misurazione corrente	Digital display meter ± (1.0% reading ±2 words)
Coefficiente di ondulazione	≤1%
Voltage stability	Random fluctuation, power supply voltage change ±10% ≤1%
Overload capacity	The no-load voltage can exceed the rated voltage by 10% for ten minutes The maximum charging current is 1.5 times the rated current
Fonte di potere	Single-phase AC 50Hz 220V±10%
Modalità di lavoro	Intermittent use
	The maximum continuous duration is 30 minuti
Ambiente di lavoro	Temperatura: -10 ~ 40℃
	Relative humidity: non più di 85% at room temperature of 25℃ (nessuna condensa)
	Altitude: Below 1500 metri
Load capacity with capacitance	There is no limit to the electrical capacity of the subject
	It can be charged at 1.5 times the rated current
Structural characteristics	Epoxy glass fiber reinforced plastic electrically insulated pressure doubling cylinder
	Air insulation, no leakage
Operating box characteristics	High-precision 0.75UDC1mA single-touch button (accuracy ≤1.0%) zinc oxide arrester test
	Overvoltage protection is set at a glance
	The chassis is placed in an aluminum alloy box with double pressure, and the whole machine can be lifted in one hand

High voltage generator

Split machine

specifica Parametro tecnico	200/2	200/5	250/3	300/2	300/5	400/3	400/5	Other grades
Rated voltage (KV)	200	200	250	300	300	400	400	500～1000KVmust be made
Rated current (mA)	2	5	3	2	5	3	5
Rated power (W)	400	1000	750	600	1500	1200	2000
Chassis weight (kg)	4.5	4.5	4.5	5.5	5.5	5.5	5.8
Pressure doubling weight (kg)	11.5	11.5	13	16	16	22	22
Pressure doubling height (mm)）	965	965	1030	1250	1250	1900	1900
Precisione della misurazione della tensione	Digital display meter ± (1.0% reading ±2 words)
Precisione della misurazione corrente	Digital display meter ± (1.0% reading ±2 words)
Coefficiente di ondulazione	≤1%
Voltage stability	Random fluctuation, power supply voltage change ±10% ≤1%
Overload capacity	The no-load voltage can exceed the rated voltage by 10% for ten minutes The maximum charging current is 1.5 times the rated current
Fonte di potere	Single-phase AC 50Hz 220V±10%
Modalità di lavoro	Intermittent use
	The maximum continuous duration is 30 minuti
Ambiente di lavoro	Temperatura: -10 ~ 40℃
	Relative humidity: non più di 85% at room temperature of 25℃ (nessuna condensa)
	Altitude: Below 1500 metri
Load capacity with capacitance	There is no limit to the electrical capacity of the subject
	It can be charged at 1.5 times the rated current
Structural characteristics	Epoxy glass fiber reinforced plastic electrically insulated pressure doubling cylinder
	Air insulation, no leakage
Operating box characteristics	High-precision 0.75UDC1mA single-touch button (accuracy ≤1.0%) zinc oxide arrester test
	Overvoltage protection is set at a glance
	Small control box, convenient site
