JK508 JK516 Temperature Tester

Anbai AT4872 Multi-channel Thermometer AT4880 AT4888
GA-7032 32-Channel Temperature Data Logger

Categoria:

Descrizione

Temperature Tester

Brief introduction

JK508/516/524 hand-held multi-channel temperature acquisition instrument is the latest handheld temperature curve acquisition instrument on our technology platform.Using high-performance ARM microprocessor control and 5.6 inch LCD display, let waveform display at a glance.At the same time, multi-channel temperature data can be collected, over Super alarm and communication transmission, and can be extended to more than 128 temperature data, compatible with a variety of temperature sensors, risposta rapida, data stability, at the same time have fault detection functionUp to 6AH lithium battery power ensures long time acquisition. Offer it free of chargeSpecial collection software. The instrument is equipped with Mini-USB (virtual serial port) interface, and data acquisition, analysis and printing can be realized by standard computer software. USB disk memory is supported to store sampled data. The user can independently calibrate the data for each path.



Temperature Tester

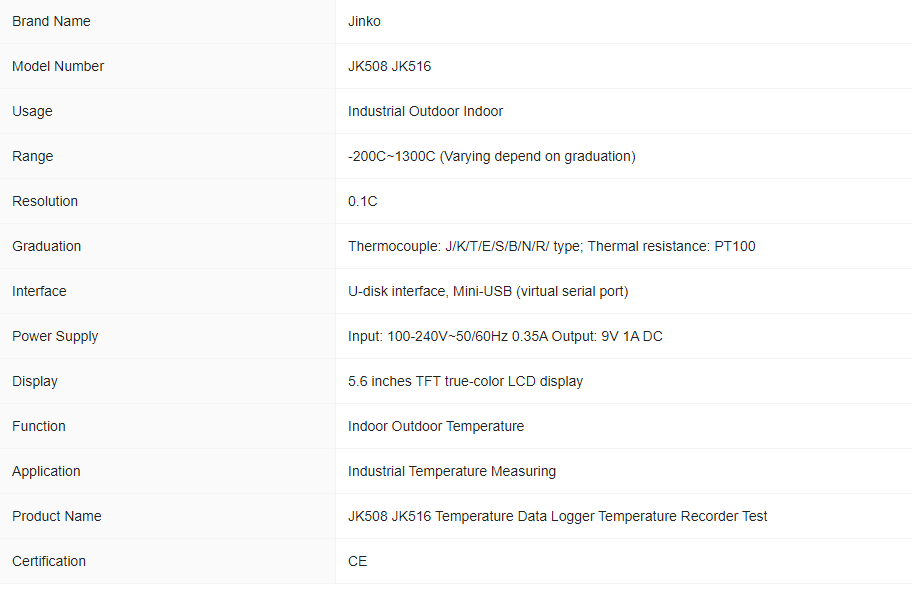

Parametro tecnico

Modello JK508 JK516
Channel 8 (can be extended to 128) 16 (can be extended to 128)
Graduation number Termocoppia:J/K/T/E/S/B/N/R/ type; Thermal resistance: PT100
Precisione di base 0.2% + 1℃
Test range -200℃~ 1300℃(the range of the test is different because of the diversity number)
Risoluzione 0.2℃ + 2 words
Velocità di scansione Fast: 100ms, velocità media: 500ms, slow: 1S
Correction Error correction for each channel
Comparatore Overrun alarm, Each channel is individually set over a super value
Standard interface U disk interface , Mini (virtual serial port)
Standard software data acquisition software
Cold end compensation Precisione: 0.5℃
Other TFT-LCD true color LCD display, Fault detection function
General characteristics
Requisiti di alimentazione Input: 100-240V~50/60Hz 0.35A output: 9V 1A DC
Battery parameters 8.4V, Li, 2200mAH rechargeable battery
Battery charging time Single continuous charging: maximum 300Min
Battery working time More than 8 ore
Size/ weight External dimensions (mm):130.23 (W) *210.76 (H) *37.88 (D), 650G
Accessori Termocoppia, DC power adapter, portable package, lithium battery, Mini-USB communication cable, data acquisition software, wireless transmission module (opzionale)
