Descrizione

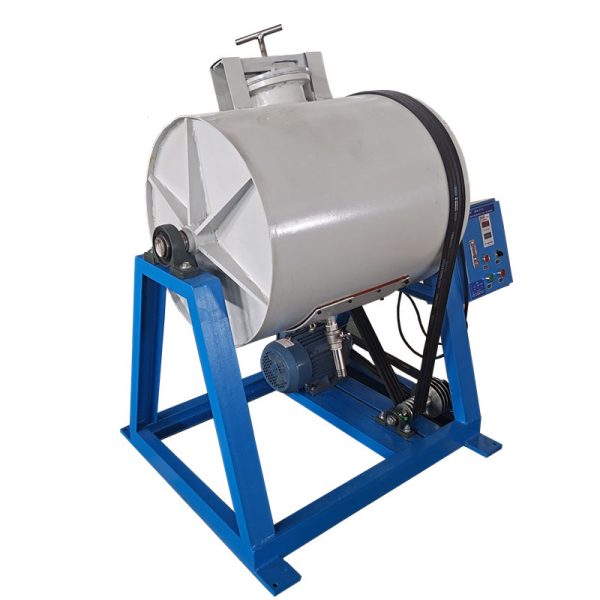

GM Series Ball Mill
introduzione
This series of ball mill is a fine grinding equipment in the preparation process of silicate raw materials, which can be used in many industries such as daily porcelain, construction porcelain, electric porcelain, sanitary porcelain, chemical metallurgy and so on. Especially suitable for small batch production in laboratory and fine grinding of ceramic glaze.
GM Series Ball Mill
Principali parametri tecnici:
1, grinding capacity: 50 ~ 500Kg
2. Alimentazione elettrica: 380V
3. Transmission mode: belt
4, the shell is made of high quality steel plate, lined with high aluminum porcelain lining.
GM Series Ball Mill
Parametro
| Modello | specifica
（mm） |
voltaggio
（V） |
Power（kw） | rotate speed
（r/min） |
kind of drive |
| GM-25 | 380 | 1.0 | 60 | belt | |
| GM-50 | φ600×700 | 380 | 1.5 | 60 | belt |
| GM-100 | φ700×800 | 380 | 2.2 | 54 | belt |
| GM-200 | φ800×1000 | 380 | 3.0 | 42 | belt |
| GM-300 | φ900×1100 | 380 | 4.0 | 42 | belt |
| GM-500 | φ1100×1420 | 380 | 5.5 | 32 | belt |
