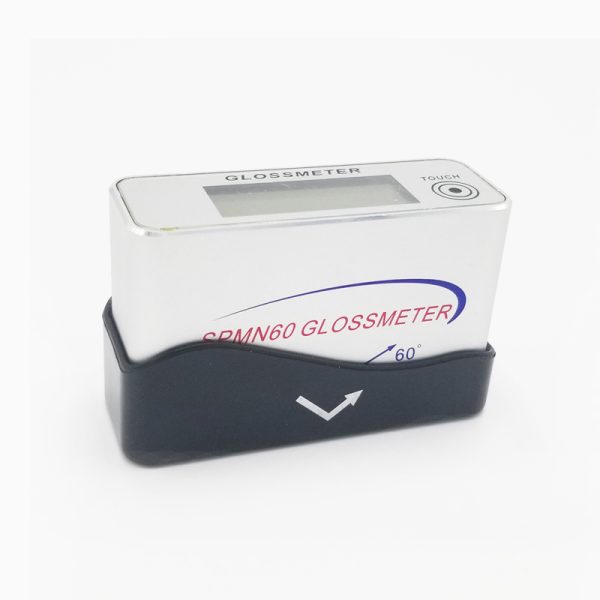

GA-SPMN60 MiNi Gloss Meter
introduzione
SPMN60MiNi mirror direction all intelligent model gloss meter, its technical parameters in line with the national standard GB9754-88, GB9966.5 and international standard ISO2813.
Application fields:
rivestimento, colore, metallo, electroplating and other industries.
GA-SPMN60 MiNi Gloss Meter
Caratteristica
1. The ultra-small design can be put in the pocket, more convenient to carry, is the current domestic small volume, light weight gloss meter.
2. Ultra-power-saving design, using a No. 5 battery (rechargeable battery or alkaline battery can be used), you can operate. Di 100,000 data points can be measured.
3. Automatic calibration, making the measurement more simple and convenient.
4. Upgrade to touch button, dustproof, waterproof, long life.
5. USB data transmission, plug and play, easy to make measurement reports.
GA-SPMN60 MiNi Gloss Meter
Precautions:
1. Avoid direct light during use, otherwise the measurement accuracy will be affected.
2. The standard board of the instrument should be kept clean. Do not touch the surface with your fingers. If the surface is stained, it will lead to increased instrument error and inaccurate reading
Wipe with head paper or anhydrous ethanol.
3. Because of the high stability of the instrument, the instrument does not need to be calibrated frequently, it is recommended to re-calibrate once after continuous use for 2 ore.
4, the battery should be replaced in time, otherwise long-term storage, the old battery may flow out of waste liquid, causing damage to the instrument.
GA-SPMN60 MiNi Gloss Meter
Parametro
| Projection Angle | 60° |
| window size | 10x20mm |
| Port | USB |
| power supply | 1.5VAA |
| Main engine size | 83x30x46 |
| Main engine weight | 150G |
| service conditions | environment temperature10℃~~40℃ |
| Ambient humidity not more than 85% (nessuna condensa) | |
| campo di misura | 0~99.9Gs/100~1000Gs |
| ripetibilità | 0.2% |
| reproducibility | 0.5% |
| pc software design | My Gloss 2.0 |
