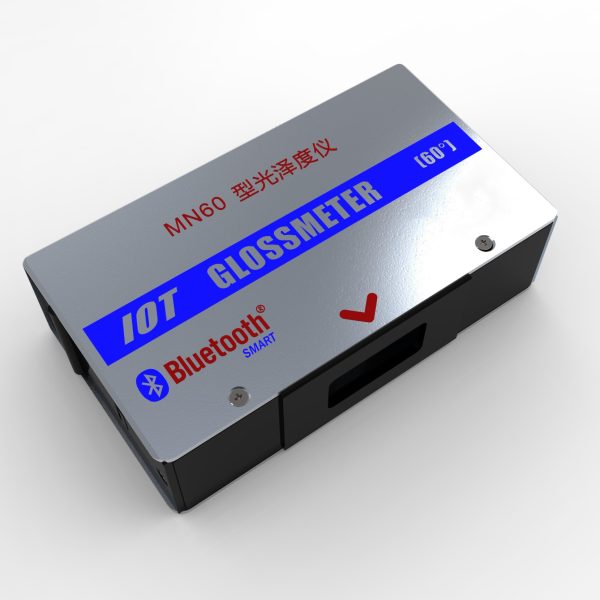

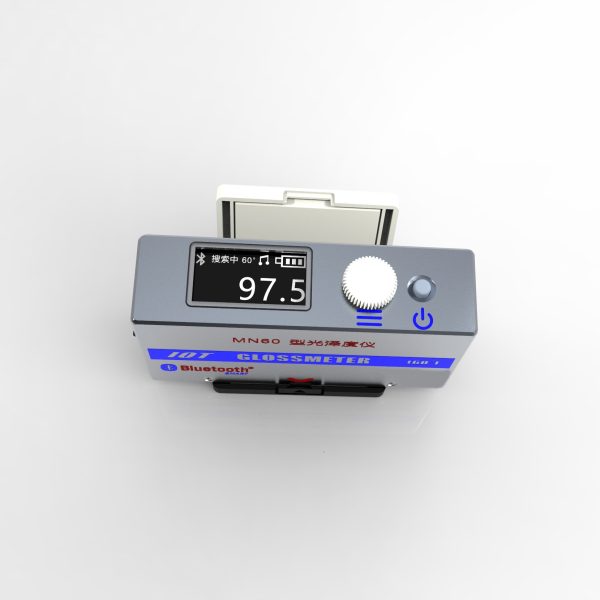

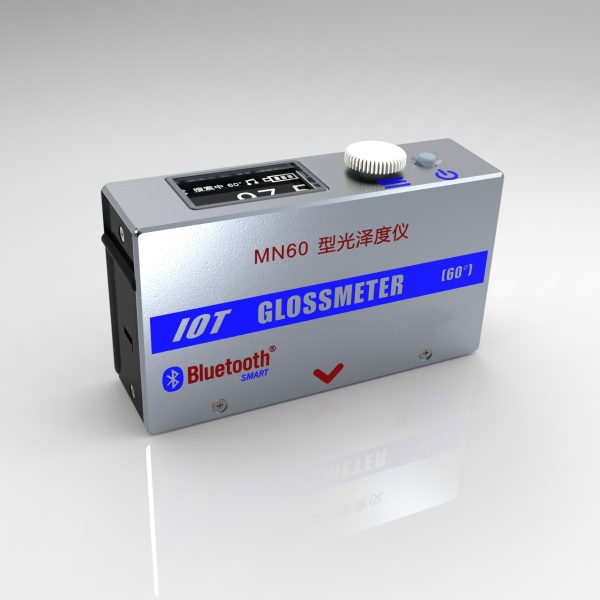

GA-MN60 Gloss Meter
Product introduction
MN60 mirror gloss meter is a small portable machine, its technical parameters conform to the national standard GB9754-88, GB9966.5 and international standard ISO2813.
All the performance indicators meet the requirements of national JJG696-2002 (Calibration Regulation of mirror gloss meter).
GA-MN60 Gloss Meter
Applicazione
This product is suitable for the measurement of gloss of paint, colore, inchiostro, plastica, stone, carta, tile, enamel and other flat products.
GA-MN60 Gloss Meter
Caratteristica
1. Small size full function multi-angle iot gloss meter.
2. Using a number 5 battery (rechargeable battery or alkaline battery), about tens of thousands of data can be measured.
3. Bluetooth BLE communication, can be connected with the mobile phone test, and the use of the machine is no different.
4. No waiting time, stable value, no drift, easy to measure quickly.
5. Adapt to MyGloss APP for Android phone to realize multi-functional data processing such as storage statistics.
GA-MN60 Gloss Meter
Precautions:
1. Avoid direct light during use, otherwise the measurement accuracy will be affected.
2. The standard board of the instrument should be kept clean. Do not touch the surface with your fingers. If the surface is stained, it will lead to increased instrument error and inaccurate reading
Wipe with head paper or anhydrous ethanol.
3. Because of the high stability of the instrument, the instrument does not need to be calibrated frequently, it is recommended to re-calibrate once after continuous use for 2 ore.
4, the battery should be replaced in time, otherwise long-term storage, the old battery may flow out of waste liquid, causing damage to the instrument.
GA-MN60 Gloss Meter
Parametro
| campo di misura | 0~199.9Gs |
| stability | Less than ±0.4Gs/30Min |
| indication error | Less than ±1.5Gs |
| zero deviation | With automatic zero stabilization function, no need to adjust zero |
| alimentatore funzionante | One No. 5 battery (AA) alkaline or rechargeable battery |
| working voltage | 0.8V~1.5V |
| Projection Angle | 60° |
| spot size | 11x22mm |
| Measuring port size | 11x28mm |
| service conditions | Ambient temperature: 0℃ ~ 40 ℃ |
| power dissipation | Relative humidity: non più di 85% |
| Main engine size | (l)114mm x (W)32mm x (H)64mm |
| Peso | 300G |
| Standard box size | (l)67mm x (W)46mm x (H)13mm |
| Standard box weight | 45G |
