GA-88 Water spray testing device

Descrizione

Water spray testing device

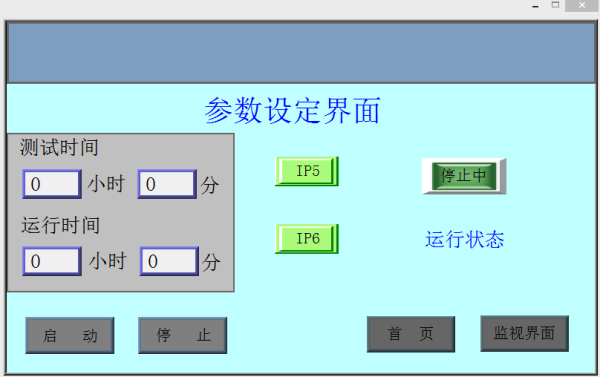

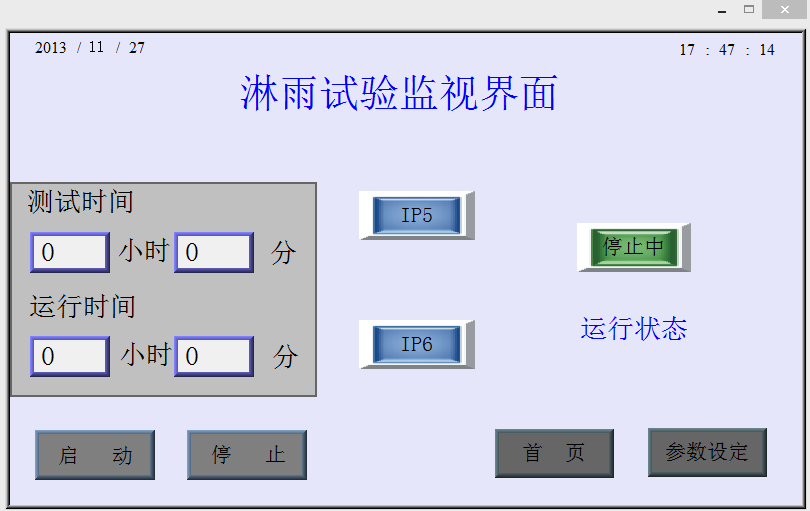

1. The waterproof test box is suitable for testing electrical products, whether the shell and seal can ensure the good performance of equipment and components in the rain environment. This product adopts scientific design, so that the inquiry equipment can simulate the realistic water spraying environment. Into the comprehensive control system and the use of frequency conversion technology, make the rotation Angle of the rainfall test shelf, the swing Angle of the water spray pendulum rod! And the swing frequency of water spray can be automatically adjusted.

2. Top spray IPX56 water spray testing machine standard based on :IEC60529-2001, GB4208-2017 standard requirements of IPX5.IPX6 equivalent JIS, DIN, IZ1 and other standards

3, the main technical parameters of the IPX56 spray testing machine:
The laboratory is composed of test bench, storage tank, scatola di controllo, turntable and spray system.

Water spray testing device
Top jet IPX56 water jet testing machine structure principle:
The basic design principle of the equipment; A water tank is provided at the bottom through the stainless steel pump inside the right control box and pressurized, and then sent to the nozzle of the side spray pipe device, and the nozzle spray water to the sample on the turntable, and then scattered to the inside of the water tank, so as to form a water circulation system. Pump outlet design flowmeter, pressure gauge, solenoid valve and other control components. The inner box is equipped with a waterproof turntable and the speed is controlled on the panel.

Water spray testing device
Material hopper:
1, ugello: stainless steel pipe
2, water tank :304 acciaio inossidabile
3, sealing plate material: the lower layer of rigid glass 6MM thick, the upper layer of glass PC plastic transparent plate (peso leggero, easy to install)4, frame material :304 stainless steel square pass, sand surface (professional wire drawing
5, electrical control accessories selected from France Snide, Omron, Taiwan Shiyan, Japan Fuji and other international well-known brands
