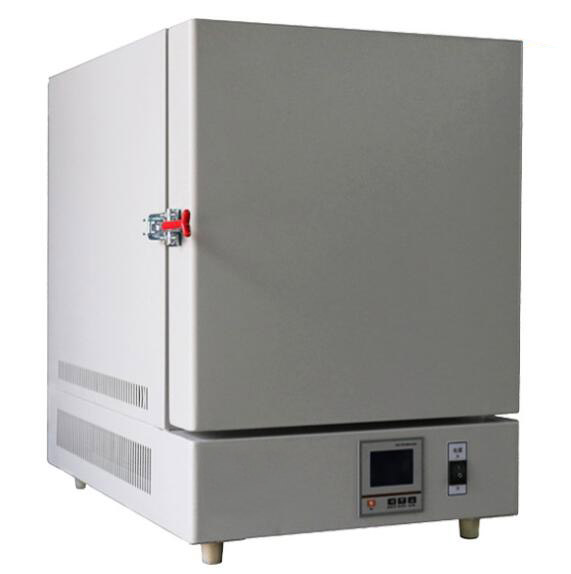

GA-2006-B Ash Oven

Descrizione

GA-2006-B Ash Oven

Panoramica:

The system is an integral high-temperature muffle furnace, which integrates the furnace body and the control part, greatly reducing the space occupied.It is mainly used in metallurgy, glass and ceramics

Refractory materials, crystals, componenti elettronici, furnace manufacturing and small steel parts of the return, tempering and other high temperature heat treatment fields;It is also the ideal equipment for high temperature sintering.

GA-2006-B Ash Oven

Fmangia

• Large screen LCD, whole machine integrated design, unique door furnace design, make the door operation more safe and convenient.
• The casing is made of high quality cold-rolled steel plate, and the casing seven colors is baked by high temperature, which makes it more durable.

Microcomputer PID temperature controller, accurate and reliable temperature control.

• Light weight and easy to move.
• Faster heating speed and more efficient use.

More reasonable appearance design, uniform temperature, more convenient use.

• With over current, over voltage, over heat, leakage, short circuit and other safety protection measures to ensure safer use.
• Good heat insulation effect, box wall and furnace with double – layer structure design, and ceramic fiber board as heat insulation material.
• GA-2006-B Ash Oven
• Specifica


  Modello	GA-2.5-10A	GA-4-10A	GA-8-10A	GA-12-10A	GA-2.5-12A	GA-4-12A	GA-8-12A	GA-12-12A
  Energia	AC220V 50HZ		AC380V 50HZ		AC220V 50HZ		AC380V 50HZ
  Max temperature	1000℃				1200℃
  Use temperature	RT+50～950℃				RT+50～1100℃
  Furnace material	ceramic fiber
  Heat methods	Nickel chromium wire (molybdenum-containing)
  Modalità di visualizzazione	schermo a cristalli liquidi
  Modalità di controllo della temperatura	Programmed PID control
  Potenza di ingresso	2.5chilowatt	4chilowatt	8chilowatt	12chilowatt	2.5chilowatt	4chilowatt	8chilowatt	12chilowatt
  Work romm size L×P×A(mm)	120×200×80	200×300×120	250×400×160	300×500×200	120×200×80	200×300×120	250×400×160	300×500×200
  Effective volume	2l	7l	16l	30l	2l	7l	16l	30l
  * Under no load, no strong magnetism and no vibration, the test performance parameters are as follows: ambient temperature 20℃, ambient humidity 50%RH.The type with “UN” in the back is ceramic fiber furnace.

GA-2006-B Ash Oven
