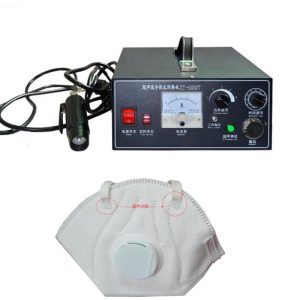

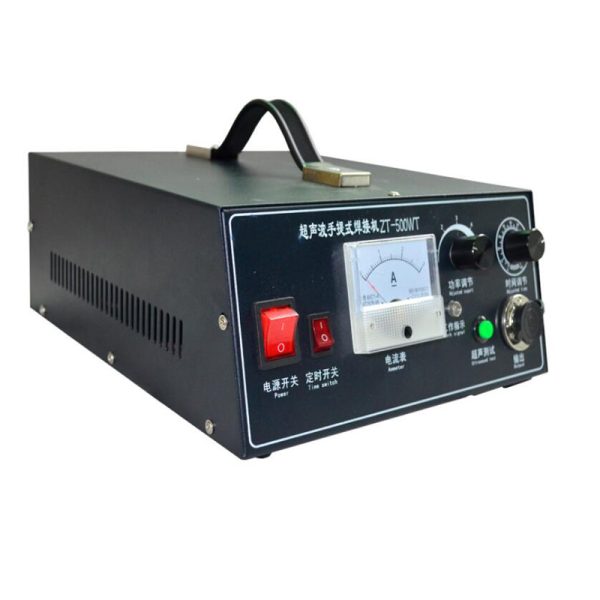

GA-1701 Saldatrice per maschere

Descrizione

Saldatrice per maschere

Character

1.Japanese piezoelectric plastic transducer with stable output

2.The use of hand-held transducer, flexible operation

3.Japanese high quality line, facile da usare

4.Caratteristiche: suitable for ganizational 1-15mm welding spot occasions

5.Riveting, spot welding, boundary flower, dot welding process

6.Assembly of a full set of high-quality components

Saldatrice per maschere

Principio di funzionamento:

The use of ultrasonic welding technology in the plastic industry has become increasingly common around the world.The application of this technology can replace the fluxes, adesivi, fasteners or other mechanical fastening methods needed in the past, thus improving the production efficiency and reducing the cost.Its welding principle is produced by the generator 20KHz

(O 15 KHZ), high voltage, high frequency signal, can by changing the system, the signal is converted to high-frequency mechanical vibration, and on the plastic workpiece, through the surface and inner friction between the molecules and make the transfer to the interface temperature, when the temperature reaches the melting point of the workpiece itself, the workpiece interface rapidly melting, and then fill in the space between the interface;When the vibration stops, the workpiece is cooled and set under a certain pressure to achieve a perfect welding.

Saldatrice per maschere

Ambito di applicazione:

It is suitable for ultrasonic plastic welding machine, plastic hot plate welding machine and high cycle plastic welding machine in mask ear band welding, plastic toys, elettronica, household appliances, daily plastic products, plastic stationery, auto parts and other industries.Among them, ultrasonic plastic welding machine in addition to the 20KHZ general series, but also the production of PP, PE and other soft materials and the need to connect large diameter, width and length of workpiece 15KHz series, power from 1000W to 4200W, can meet the requirements of different users.

Specifica

Frequenza	Energia	Welding Time	Welding area	Voltaggio
28KHZ	500W	0.1-9.99S	Φ1-Φ12mm	220V/50KHZ
