Esploratore 7000 plus XRF Ore tester

Descrizione

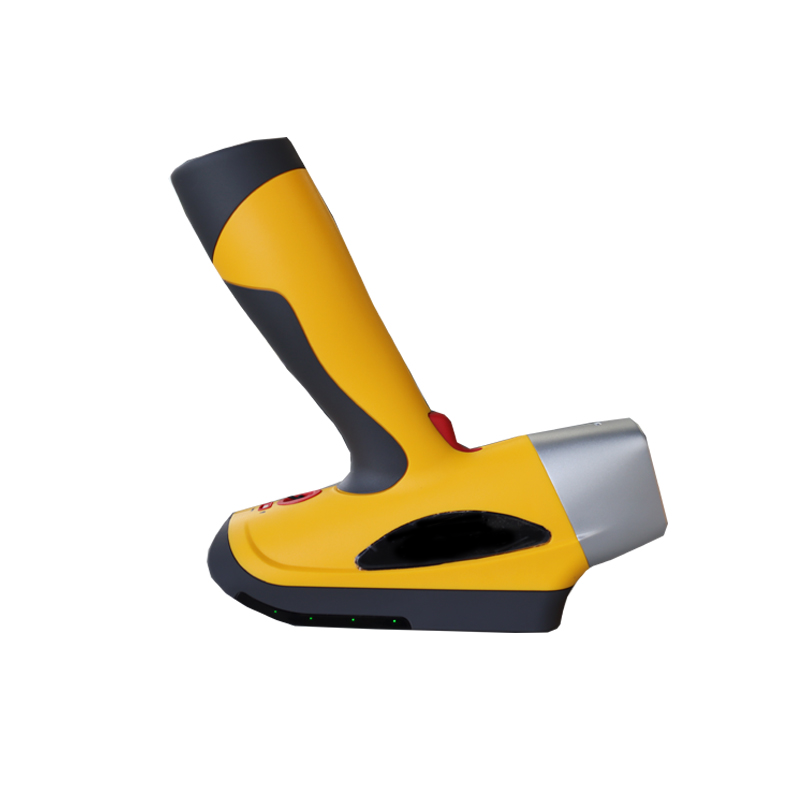

Esploratore 7000 plus XRF Ore tester

1.Application advantage of geology and mineral resources:

Our new generation XRF handheld ore analyzer — Esploratore 7000 is bringing a revolution in analytical field. Esploratore 7000 introduces newer digital multi-channel technology.lower detection limits, better stability, and wider applied range, it has comparable performance with bench top; its small and convertible size makes the works of geological ore prospecting, multi elemental detection exploration analysis, refining slag more simply and easier.

Personalized customization work mode

■ Selections of various Ore – campione – models and free to add unlimited – numero – models, the work model can be customized by customer’s demand.

IL accurato definition Di minerario boundary

■ The built-in GPS function helps to receive signals from satellite anytime at anywhere, and can record the measurements of altitude, latitude and longitude during anytime of testing period, which determine the geographic location information of sampling points, and save as test reports automatically.

It can draw the ore distribution pictures by obtained coordinate analytical data, screen large area range rapidly and grasp the lode mine accurately, then define the mining boundary, in order to prior to find rich mining area to improve the production efficiency.

■ A built in Bluetooth function, which can recognize the key mining areas on site when the instrument collocates with a Bluetooth printer.

Discover the mines’ full- valore

■ HD camera function, observes the detected vein and point position more intuitive, manages and controls the process of mining exploitation better, detects the grade of ore at any time.During ore dressing, the quick and accurate analysis of raw ore, concentrate and tailings , provides the value judgment basis for the determination of ore grade, mineral trade, processing and recycling

Environmental monitoring

To monitor and detect the heavy metals in the soil around the mines, to evaluate mine repair environments, in order to maximize the monitoring the surrounding environment of good mines.

2.Six advantages

Easier Operating

• Light weight，taglia piccola,ergonomic handle design,equippedwith a special instrument case, which is easier to grasp and more convenient to use in the field.
• 5 inch high-definition screen with 360 degree rotation, multiplepoints operating, can display clearly at any lights.
• Integrated design of Seal type, with waterproof and dustprooffunction, can be used continuously in harsh environments
• No need for sample preparation,can directly measure andanalysis the surface of goods which need to tested. The instrument can do a quick measurement by its handheld benefit and accurately test the samples for a long time by its test block.

Better Performance

• Rapid nondestructive detection and quick measurement byaiming，report results within one second. The performance is comparable to the bench-top’s performance and detection result is fast and accurate.
• Simultaneous detection of Ti，V，Cr，Mn，Fe，Co，In，Cu,Zn，Ga，Ge，Zr，N.B，Mo，Ru， Rh，Pd，Ag，In，Sn，Sb,Hf，Di fronte，W，Re，Pt，Au，Pb，Bi，Mg，Al，E，P，S，andit can add elements that customized for customer’s needs.
• Instrument can run without helium by the ultra near optical pathdesign, and can detect the light elements from the beginning of Mg that fully meets the needs of specific users.

Stronger Battery

• Large lithium battery at 27000mAh could be as a selected configuration: the battery duration working time is up to three daysand it equipped with communicator and car charger to ensure power supply.
• A Built-in memory battery can continue replace the battery power

Higher Configuration

• Four core parts which are Miniature X-ray tube, Fast-SDD detector (theworld’s best detector)，digital signal processor and micro multi channel intelligent analysis module, can achieve the accuracy as good as bench-top’s.
• Large data storage is by ultra-high frequency memory and mass storage Our new independent research and development Digital multi-channel technology ensure effective mining spectral counts per seconds up to 500K cps.
• Collimation filter system, its combination can reach to the limit of 12groups, to meet the testing requirements of different customers.
• A built-in 500W pixels high definition camera, can observe sample’stesting position at any time that makes the measurement more accurate.

Safer Protection

• Intelligent- tricolor- early -warning -system: 360 degrees withoutdead angle display by LED three-color lamp led design.Instrument status tells by different colors,Green light means power on, red flushing means testing, and yellow flushing means fault of equipment.
• Triple safety protection function:

UN: Automatic induction, instrument does not work without sample.no leakage radiation.

B: Thicken – preventing – test – wall can effectively prevent the scattering.

C: Safety – protection – cover can prevent the surrounding light matrix scattering.

• Sicurezza- linkage- locking device protects your security: it canguard the final checkpoint if the software is unable to control the instrument turn off.

More Intelligent Software

• Esploratore 7000 alloy analyzer is equipped with professional application software, specifically for alloy industry; the feature isintelligent, alta sensibilità, short testing time, and easy operation.
• Brand new knowledge-ware is one key operation with dual mode design (user mode and expert mode). User mode uses forrecognizing categories of sample by one key operation: Expert mode uses for increasing the elements and increasing the specific in-depth analysis of the operation curve.
• Internal intensity correction method can correct deviation caused by uneven sample of different geometrics, densities and



3.Parametri tecnici

Analytical Method	Energy dispersive x ray fluorescence analytical Method
Elements Measuring Allineare	Atomic number from 12 A 92 [elements from magnesium (Mg) to uranium (U)] can be measured
Simultaneous detector elements	Simultaneous analyze 40 elements
Microcomputer system	Customized system; CPU: 1G ; system memory: 1G ; extended stored maximum support 32G ; standard 4G for mass storage data
The content range	ppm～99.99%
The detection time	1~60 seconds(one second report results)
A built-in system	GPS, WIFI, Bluetooth
Alimentazione elettrica	Rechargeable lithium battery, standard is 9000mAh, sustainable work up to 12 ore; optional is 27000mAh superbattery with wide voltage 110V～220V universal adapter for recharging power supply
Detection Objective	Solido, liquido, polvere
Rivelatore	SDD detector or Fast-SDD detector (opzionale)
Detector resolution	Minimum can reach 128eV
The excitation source	50KV/200uA- siver target end window integrated miniature X-ray tube and high voltage power supply
Collimator and filte	collimator diameters are 4.0mm and 2.0mm, 6 kinds of filters with automatic switching functions
Video system	500W pixel high resolution camera
Display screen	Brand new 5 inch semi-reflecting and semi-transmitting LCD touch screen, its resolution is 1080*720.
Detection limit	The minimum detection limits at 1～ 500 ppm
Safety	Multiple safety protection, no tests, no radiation, radiation levels at work are far below the international safety standards and has no sample telemetry, automatic -turn -off X-Ray tube function. Standard radiation shields, thickened instrument’s alloy testing wal
Specialty	Special edition of ore’s analytical software, and intellectualized one- key- test.
Convenience of application	No need to select curves, intellectualized one- key-selecting will select the best matching curve
Data transmission	Digital multi-channel technology, SPI data transmission, quick analysis, the high count rate; waterproof mini USB, and can be connected witn a aesktop computer
Umidità ambientale operativa	≤90%
Operating environmental emperature	-20℃~+50℃
nstrument dimension	244mm(Lunghezza)x90mm(Larghezza)x330mm(Altezza)
Instrument weight	1.7Kg
Intelligent warning signalsindicator systen	Green light means power on, red flushing means testing and yellow flushing means the errors
Accessori	Three-military-protection-box is compression, waterproof and shock absorption. Universal charger and car charger,4G SD memory card and card reader Two lithium battery and charger, PDA accessories, radiation shield. Accessori opzionali: the large battery, seat type test support, Bluetooth printer, mill, manual pressure machine, and different meshes of sieves

4.Exclusive Accessories

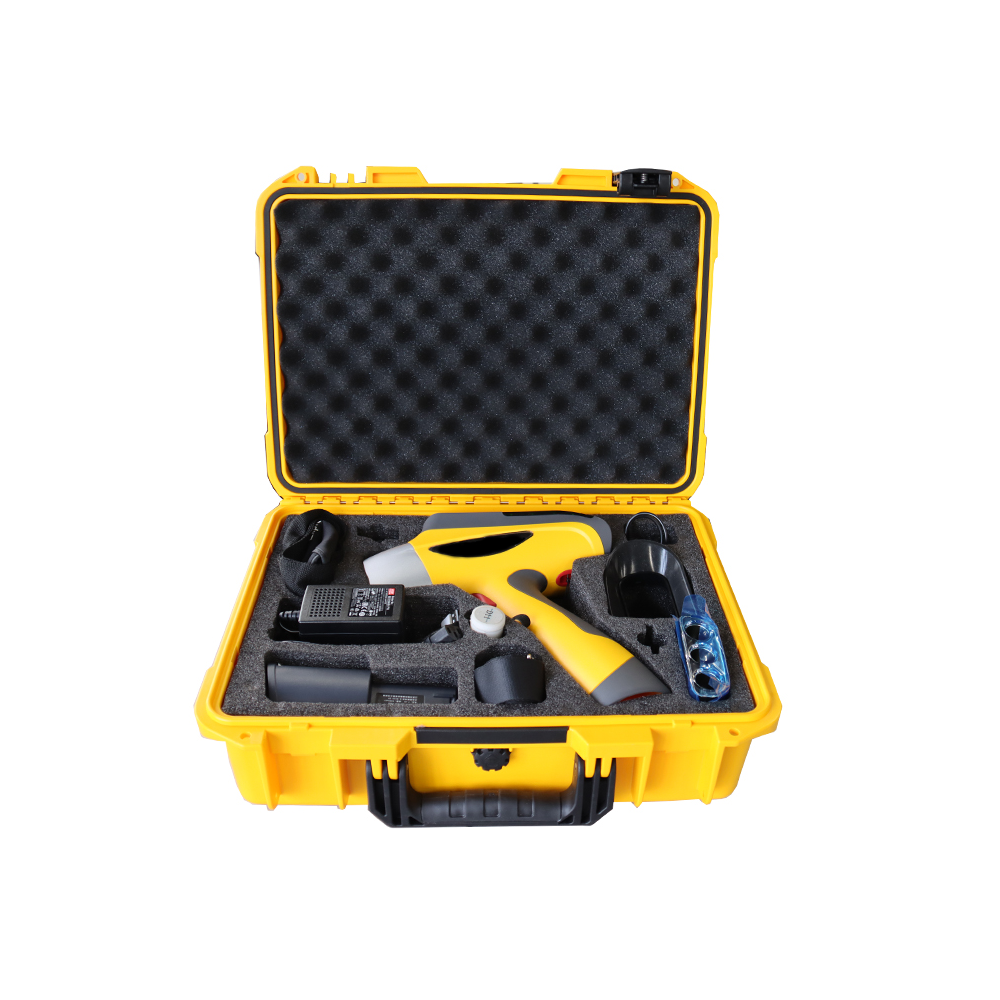

Military grade high strength protective box has good moisture-proof shockprool pressure three functions, an emergency situation can be used as a rescue tool

A horseshoe shaped battery:battery capacity at 27000mAhprolonging test time 3 times.and use as the seat stent

To achieve on-site printing data by portable Bluetooth printers

Four into one car charger can extent charging times in the field.
