Dispositivo di conducibilità termica DRE-2A
- Descrizione
- Inchiesta
Descrizione

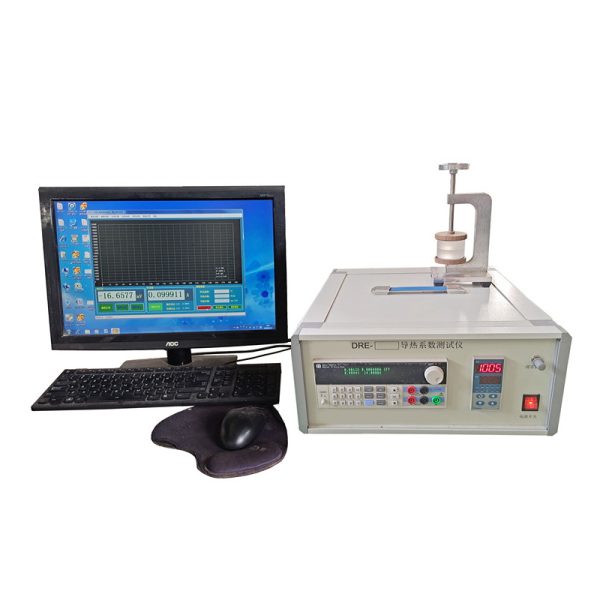

Dispositivo di conducibilità termica DRE-2A
introduzione
This series of thermal conductivity meter adopts the unsteady state method, which has the advantages of fast measurement speed, wide application range and the ability to successfully avoid the influence of natural convection in the experiment process. It is a popular test method at present.
DRE-2A thermal conductivity tester adopts transient hot wire method, mainly measures the thermal conductivity of liquid. It has the characteristics of fast measurement speed, small sample quantity, alta precisione, high resolution and high reproducibility. Automatic measurement by computer control. Widely used in petroleum, chimico, biological, farmaceutico, energy, power engineering and other fields of working fluid thermal conductivity measurement.
Principali parametri tecnici:
Campo di misura: 0.0010~ 5.0W /(m·K),
2, temperature range: standard detection: temperatura ambiente, (test sample thermal conductivity at different temperatures need to be equipped with a temperature controller, the cost is calculated separately, such as -40–120℃),
3, measurement accuracy: <± 3.0%,
Dosaggio del campione: <80ml,
Measurement time: 10 secondi,
Pressure environment: optional vacuum or pressure system (additional cost);
Reference standard: ASTM D2717-95 Test method for Thermal Conductivity of Liquids,
8, sample shape: liquido; In the gas state.
9, power supply: voltage 220V; Frequency 50Hz; Energia <500W,
10, communication interface: Interfaccia USB.
Instrument configuration: including DRE-2A test host 1 impostato, test probe 1 impostato, glass test tube 2 sets, test software 1 impostato, communication interface and data line 1 impostato, desktop computer 1 (according to the contract configuration).
