CT-8681N/8681FA Cable conduction testing machine
- Descrizione
- Inchiesta
Descrizione

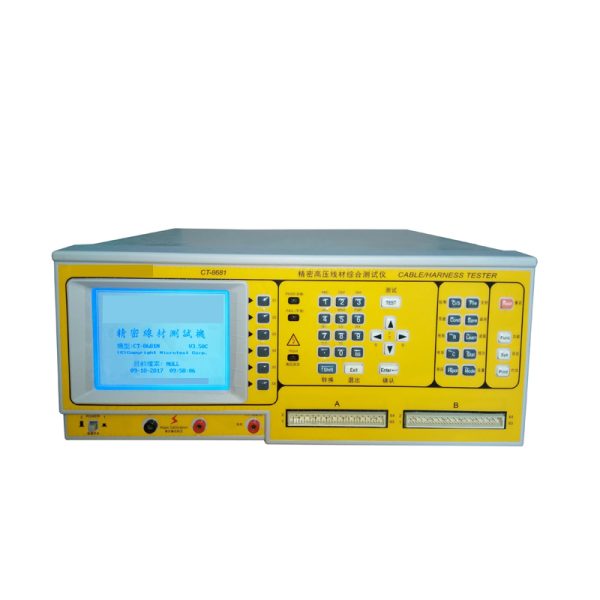

Cable testing machine
Boot self-diagnosis, self-correction The system can automatically scan and find points The system provides advanced transient short-circuit/on-circuit testing Can be used for wire single side test/insulation test Max AC1000V/DC1500V test voltage Up to 256 test points can be measured Provides 320×240 resolution graphic LCD display Linearity and safety tests are available Fully segmented continuous testing Provides a variety of interfaces for a variety of applications The system provides statistics and computer connection printing function
Cable testing machine
| articolo | symbol | Test range |
| Resistenza | R | 0.1Ω－10MΩ |
| Capacitance | C | 10pF－1μF |
| Diode test | D | 0.0V－7.0V |
| Shielding Rate (For/+) | Shielding Rate | 0.0－100.0 |
| Conduction | COND | 0.1Ω－50.0Ω |
| Insulation resistance I. | I.S | 1MΩ－1000MΩ |
| High voltage (leakage current) | IL | 0.1mA－5mA |
| Off/Short circuit | O/S | 2KΩ－50ＫΩ |
| Instant break short circuit test | ||
| Instantaneous conduction test | ||
| Single side test | ||
| Short-circuit end point judgment | ||
| Advanced function | Programmable continuous testing | |
| Automatic learning and self-finding | ||
| self-diagnosis | ||
| Self-correcting to zero | ||
| Statistics display and print function | ||
| Precisione di base | ±1% | |
| Test scan mode | Automatic/manual scan can be switched | |
| Velocità di misurazione | 0.1Sec base value | |
| Measurement frequency and signal/voltage | 100～100KHz,1Vac | |
| Low voltage measurement signal | 5Vdc,50mA Max | |
| Accuracy±0.5% | ||
| High voltage (leakage current) test | 100～500Vac(NA model) | |
| 100～1000Vac(FA model) | ||
| 0.01～60Sec Delay This parameter is set | ||
| High voltage insulation test | 200～1000Vdc(NA model) | |
| 200～1500Vdc(FA model) | ||
| Accuracy±0.5% | ||
| Display/Sound device | 320×240analytical graphic LCD display | |
| 6 digit digit display | ||
| Pass/Fail LED Red line indicator/screen display/sound | ||
| Measuring contacts | 128 Measuring contacts independently | |
| 256 contacts can be selected | ||
| High voltage correction positive and negative output | ||
| Automatically find a terminal | ||
| Control panel | System/Quick/Edit/Function/button group | |
| Interfaccia | RS-232 communication port | |
| Printer port | ||
| Remote control port | ||
| Memory device | 512KB SRAM built in | |
| Built-in backup battery | ||
| Alimentazione elettrica | 115/230Vac switchable voltage input ±10% | |
| 60/50Hz | ||
| attachment | Automatically find a probe | |
| Remote control cable (opzionale) | ||
| RS-232 Communication Cable (Opzionale) | ||
| Fixture line | ||
| Cavo di alimentazione | ||
| User manual | ||
| Temperature and humidity | 15℃～35℃ | |
| Relative humidity ≤75%RH | ||
| Dimensioni (width × height × depth) | 425×190×350mm | |
| Peso | 14Kg(without accessories) | |
| Wire specifications | up to 1μF | |
| CT-8685NA | AC500V/DC1000V | |
| CT-8685FA | AC100V/DC1500V | |
| CT-8681FA | AC500V/DC700V | |
| /C2 | C2 Select 256 test points | |
