CH2711 Current Electric Load

Descrizione

CH2711 Current Electric Load

introduzione al prodotto:

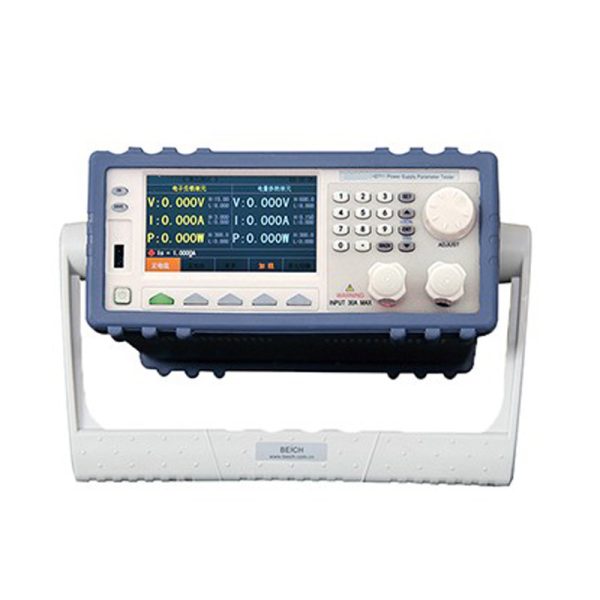

CH2700 Power Meter integrates high accuracy DC Electronic Load and Power Meter, the input and output parameter can be displayed simultaneously, the powerful program list test function can improve the test efficiency.

The DC Electronic Load adopts 500kHz high speed sampling AD with 0.0001 display resolution, CR-LED mode and list test mode for different kinds of power supply The Power Meter adopts the latest theory with the super anti interference ability to keep the accuracy and consistency of test.

Auto range switches Trms for different power supply test DC Electronic load and power meter can be used in group or individually. The one-key page switch can realize the flexibility and convenient of one unit for multi-use. 　



Caratteristiche principali:

■ High Definition 4.3 inch TFT color display, parameter from power meter and DC Electronic Load can be displayed simultaneously

■USB interface for data recording and firmware update, optional Wifi router for remote checking in PC or client in cell phone

■ Voltage, attuale, power waveform display

■ MAX hold function for obtaining peak value

■Min test current 0.05 mA,power 0.001W,for micro power test like standby power consumption(Available in specified model)

■ Powerful program list test function for production use

■ USB firmware update for function customization and extension

■ Standard rack size, adopting soft rubber material in front and rear panel, beautiful and anti-skidding



CH2711 Current Electric Load

Major Technical Indicators:

Modello		CH2711	CH2711A	CH2722	CH2722A
Rated value	Input voltage in electronic load	0 ~ 150V	0 ~500V	0 ~ 150V	0 ~500V
	Input current in electronic load	0.1mA ~ 30A	0.1mA ~ 15A	0.1mA ~ 30A	0.1mA ~ 15A
	Input power in electronic load	150W
	Input voltage in power meter	5-600V AC (Range auto switch),peak voltage:700V AC, minimo. test voltage 5V AC resolution 0.1V
	Input current in power meter	10mA-20A AC( Range auto switch ),peak current:26A AC minimo. test current 10mA AC		0.05mA-5A AC( Range auto switch ),peak current:6.5A AC minimo. test current 0.05mA AC
	Input power in power meter	0.1W-12KW		0.001W-3000W
Specification in electronic load
	Allineare	Precisione		Risoluzione
Load accuracy	0-9.9999V	±(0.05%+0.03%FS)		0.1mV
	10V-99.999V	±(0.05%+0.03%FS)		1 mV
	100V-150V/500V	±(0.05%+0.03%FS)		10mV
	0-9.9999UN	±(0.05%+0.05%FS)		0.1mA
	10-15A/30A	±(0.05%+0.05%FS)		1 mA
CV mode	1.5V-18V	±(0.05%+0.03%FS)		0.1mV/1mV
	1.5V-150V/500V	±(0.05%+0.03%FS)		10 mV
CC mode	0-3UN	±(0.05%+0.05%FS)		0.1mA
	0-15A/30A	±(0.05%+0.05%FS)		1mA
CR mode	0.05Ω-5Ω	±(0.2%+0.2%FS)		0.0001OH
	0.5Ω-50Ω	±(0.1%+0.1%FS)		0.001OH
	5Ω-500Ω	±(0.1%+0.1%FS)		0.01OH
	500Ω-5KΩ	±(1%+1%FS)		0.1OH
CP mode	0-50W	±(0.1%+0.1%FS)		MW
	0-150W	±(0.1%+0.1%FS)		10MW
	0-300W	±(0.1%+0.1%FS)		0.1W
Transient test mode	Min plus width : 0.1ms Max plus width : 999S Rising/Falling edge resolution:0.1ms Max Rising/Falling edge time : 6S
List test mode	Rated Voltage, Rated Current, Rated Power Rated Resistance, SHORT, OPEN
Specification in power meter
Wiring	Phase
Parametro	Voltage V, current A, power W, power factor PF, frequency Hz,
Test mode	Trms
Voltage input mode	AC
Power factor range	0.001-1.000 Formula: W÷[ (V)× (UN)]= (PF)
Frequency range	45-65Hz
Precisione del test	±0.4% reading+0.1 % allineare
Test di velocità	5 volte/s
Input impedance	≥1MΩ(All voltage bins)
Whole set parameter
Interfaccia	RS-232C,Dispositivo USB
Input voltage range	110V/220V AC, 50/60 Hz
Dimension and weight	21mm*88mm*335mm 6kg
