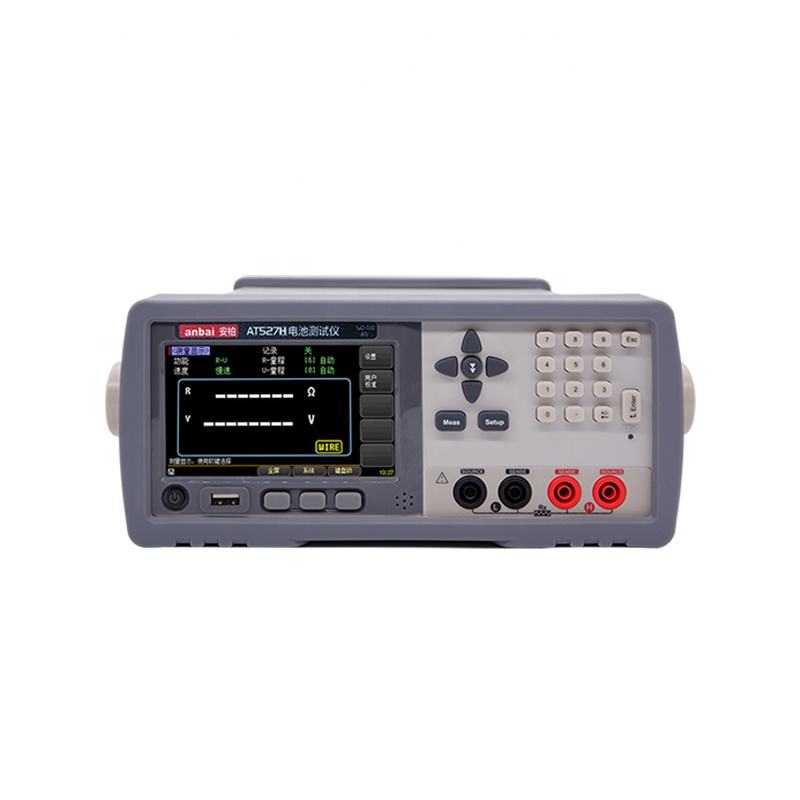

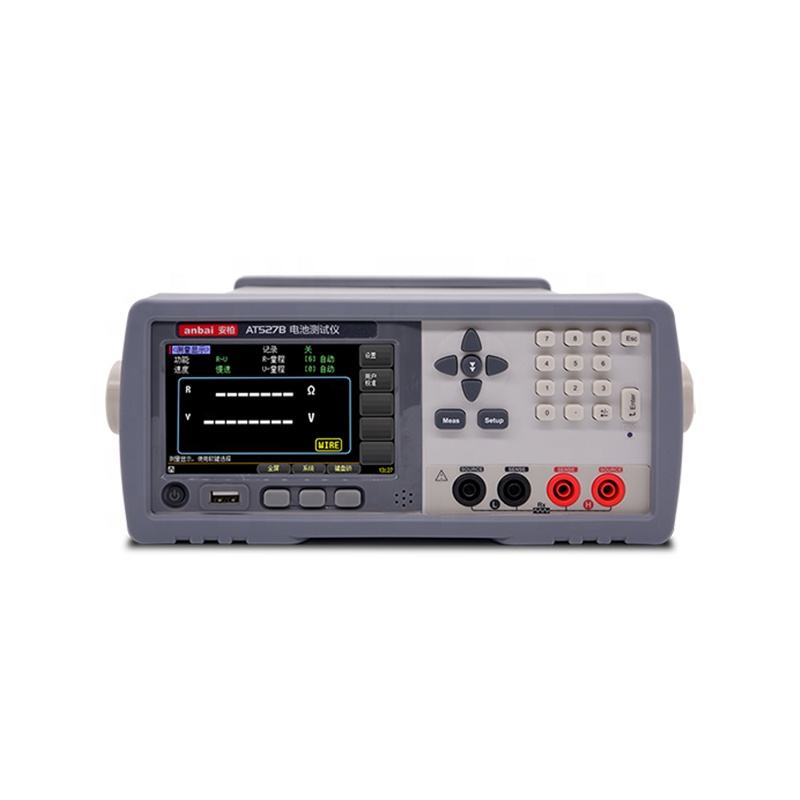

Anbai AT527 Battery AC Internal Resistance Tester
- Descrizione
- Inchiesta
Descrizione

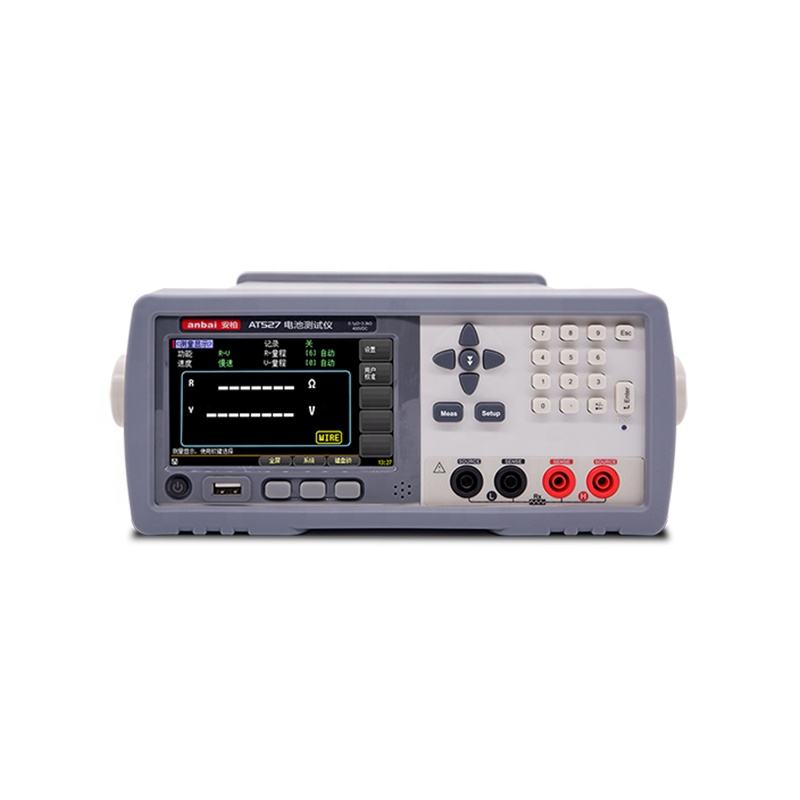

Battery Internal Resistance Tester
AT527 series adopts a high-performance 32-bit ARM microprocessor-controlled full-automatic real-time inspection miniature desktop instrument. Instrument used 4.3-inch true color LCD display, full touch operation, brand new instrument interactive experience. The instrument can test the resistance from 0.0001mΩ to 3.3000kΩ, DC voltage from 0.00001V to 1000.000V, the maximum resistance is 33,000 display digits, and the maximum voltage is 800,000 display digits. AT527 series also has the characteristics of high precision, high resolution and ultra high speed measurement, providing 0.5% resistance accuracy and 0.01% voltage accuracy.
Battery Internal Resistance Tester
|
SPECIFICHE |
|||||
|
AT527L |
AT527A |
AT527 |
AT527B |
AT527H |
|
| Parametri |
AC resistance, DC voltage |
||||
| Precisione di base | Resistenza: 0.5%, Voltaggio: 0.01% | ||||
| Resistance Range | 0.0001mΩ~3.3000kΩ | ||||
| Voltage Range | 0.00001V~60.000V | 0.00001V~200.000V | 0.00001V~400.000V | 0.00001V~800.000V | 0.00001V~1000.000V |
| Signal Source | CA 1kHz | ||||
| Allineare | 7 ranges Automatic, manual and nominal ranges.
Nominal range: The instrument will automatically select the best range based on nominal value. |
||||
| Velocità | 4 t/s, 8 t/s, 20 t/s, 55t/s | ||||
| Result Display | Spettacolo, sorting results | ||||
| Display Max | Resistenza: 31,000, Voltaggio: 600,000 | ||||
| Regolazione | Short-circuit clear zero for all ranges | ||||
| Comparatore | The instrument has sorting function. RHI / RNG / RLO output. VHI / VNG / VLO output. BUS NG / OK output. | ||||
| Grilletto | Internal, manuale, external and remote | ||||

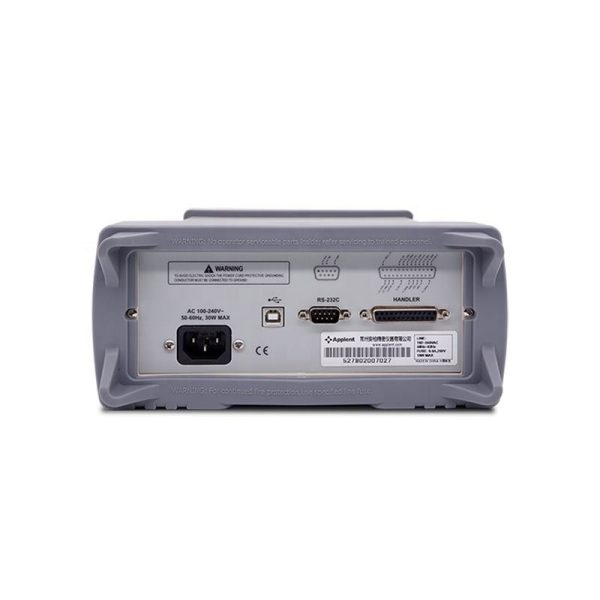

| Interfaccia | RS232C, Handler interface (PLC), Interfaccia USB | ||||
| Altri | 4.3-inch true-color TFT-LCD touch screen | ||||
| CARATTERISTICHE GENERALI | |||||
| Alimentazione elettrica | Voltaggio: AC 100/240V, Frequenza: 50/60Hz
Energia: Max 15VA |
||||
| Size and net weight | 264mm (Larghezza)x107mm (Altezza)x350mm (Profondità); 4kg | ||||
| INFORMAZIONI PER L'ORDINAZIONE | |||||
| Accessori | ATL527 Kelvin test leads
RS232 communication cable AC power cord |
||||
