Descrizione

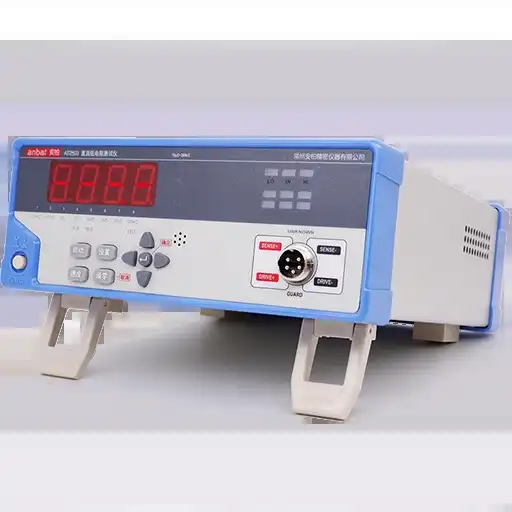

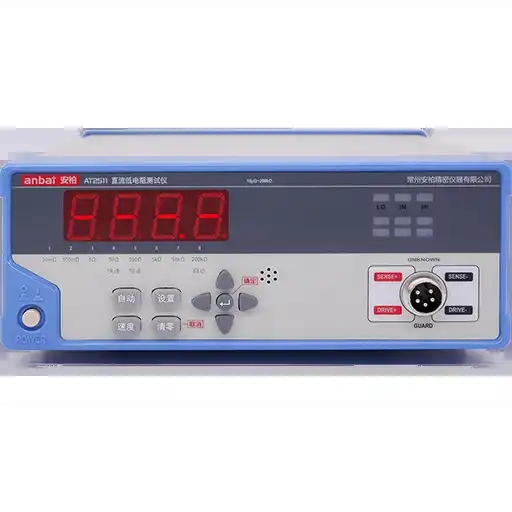

Ohm Meter
Breve introduzione
AT2511 is the upgrade version of AT511A, is a resistance meter with high-cost performance and small volume, which can measure 10μΩ – 200kΩ, max reading 5000 dgt.It is quite suitable for resistance measurement under low power conditions or factory inspection and product sorting based on its sorting function.
Ohm Meter
Parametro tecnico
| SPECIFICHE | |||
|
AT2511 |
AT511C (discontinued) |
||
| Parametro |
DC resistance |
||
| Precisione di base | 0.2% | 0.3% | |
| Campo di misura | 10μΩ~200.0kW | 0.1mW~50.00kW | |
| Signal Source | IO – Massimo: < 100mA | ||
| Allineare | Automatic and manual with 8 ranges | Automatic and manual with 6 ranges | |
| Velocità | Slow: 3 volte/secondo; Fast: 10 volte/secondo | ||
| Result Display | Spettacolo | ||
| Max Reading | 5000 | ||
| Regolazione | Short-circuit Zero-Adjust for each range | ||
| Comparatore | SPENTO, PASS, HIGH, LOW | None | |
| Beep | OK, NG, SPENTO | None | |
| Test Lead | 4 terminal shielding(2 check terminal and 2 driving terminal) and external shielding ground section | ||
| Altri | LED display | ||
| Applicazioni | Small diameter coil (headset coil); resistance of sensor;
Resistance test of protective device; ordinary transformer, inductor, motore, deflection coil winding resistance; all kinds of contact resistance; welding point contact resistance; mental defect detection |
||
| CARATTERISTICHE GENERALI | |||
| Alimentazione elettrica | Voltaggio: 198V AC – 240V AC. Frequenza: 50Hz. Energia: Max 15VA. Optional 110VAC | ||
| Misurare | 220mm (Larghezza)x85mm (Altezza)x259mm (Profondità), 2kg | ||
| ORDERING INFORMATION | |||
| Accessory | ATL503: Kelvin test leads
AC power cord |
||
