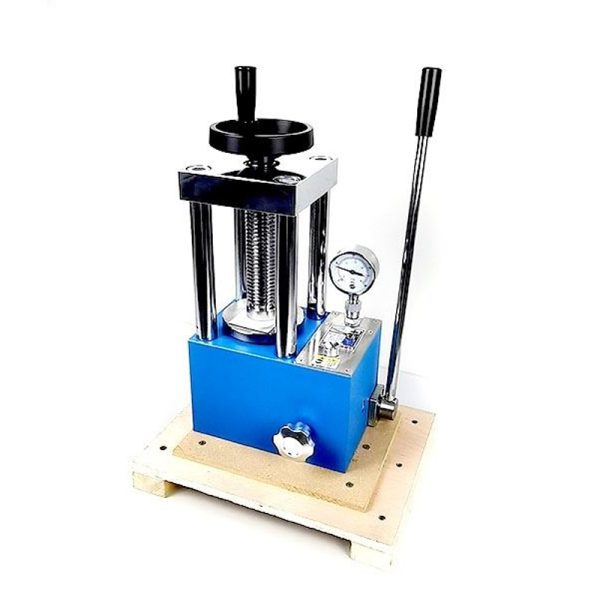

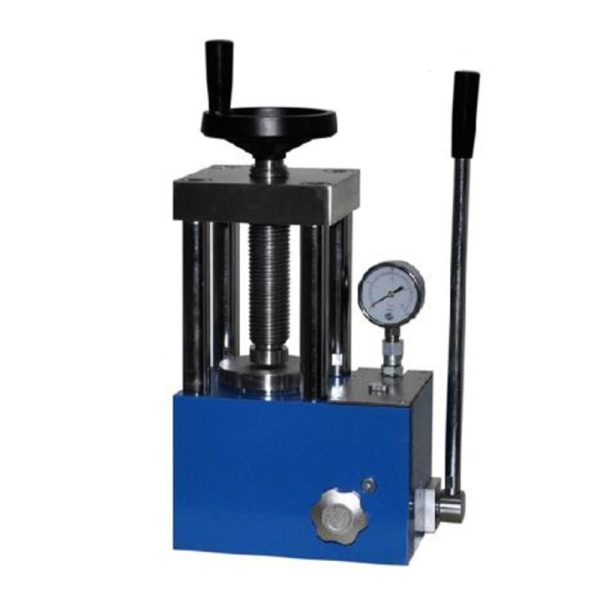

PM-24 Powder Compressing Machine
use
Manual hydraulic, 0-24 tons, no oil leakage, no pressure drop.
Advantages: The base is stable, and there will be no rollover during the pressure process.
PM-24 Powder Compressing Machine
main technical parameters
| Model | P P -24 |
| pressure limit | 0-24T（0-34MPa） |
| piston diameter | Chrome plated cylinder Φ95mm |
| One-piece structure | Motherboard, oil pool, piston without sealing connection |
| pressure gage | Pressure, pressure double scale pressure gauge |
| Maximum piston stroke | 30mm |
| Table diameter | 105mm |
| work space | 85×85×150mm |
| Pressure stability | ≤1MPa/10min |
| boundary dimension | 240×170×410mm |
| berat | 42kg |
