GA-r12 IPX7 Immersion Waterproof Test Machine
- Keterangan
- Pertanyaan
Keterangan
Immersion Waterproof Test Machine
| Model | IPX567AS | |
| Tank dimension | 780×580×1200mm ( Can be customized) | |

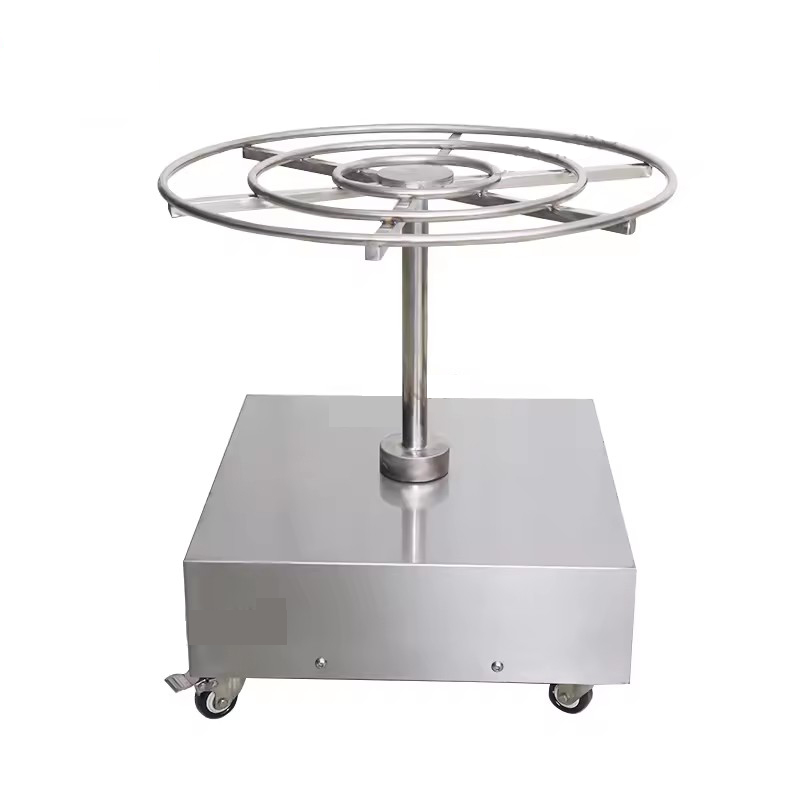

| Turntable diameter | ￠600mm | |
| Turntable Max. load | 50kg | |
| Turntable speed | 1 -5r/min（precise control ） | |
| Turntable rotate | Foreward / Turn back and forth /intermittent rotation | |
| Waktu pengujian | 0-999 menit | |
|
Nozzle Diameter |
IPX5: 6.3mm / IPX6: 12.5mm |
|
| Water Flow | IPX5: 12.5±0.625L/min /IPX6:100±5L/min | |
| Berat keseluruhan | Appro. 200kg | |
| Flow adjust | Manual setting | |
| Sumber Daya listrik | 380V 50HZ | |
| Power Supply of samples | 220V | |
| Protective device | Leakage, water shortage, hubungan pendek | |
| Standar | IEC60529:1989 +A1:1999 +A2：2013《Degrees of protection provided by enclosures(Kode IP)》 | |
