GA-361 Dilatometer Horisontal Suhu Tinggi

GA-4201 Cone Calorimeter
GA-362 Thermal expansion coefficient tester

Kategori:

Keterangan

I.Product introduction
The instrument is used to determine the expansion and contraction properties of metal materials, keramik, kaca, mengacai, bahan tahan api dan bahan bukan logam lainnya dalam proses pemanggangan panas.

II.reference standard
Standar Referensi Instrumen: GB/T3810.8-2016 dan ISO 10545.8-2014 Penentuan ekspansi termal linier ubin keramik,GB/T16920-2015 determination of average linear thermal expansion coefficient of glass,GB/T3074.4-2016 determination of graphite electrode thermal expansion coefficient,GB/T 7320-2018 “Test method for thermal expansion of Refractory products”, GB/T4339-2008 “Determination of characteristic parameters of thermal expansion of metal materials”, dll..
Air protection or vacuuming can be selected according to user requirements (optional device, additional cost).
According to the experimental requirements to the sample pressure test, rentang tekanan: 0-50kg adjustable (optional device, additional cost).
Instrument configuration: including one GA-361 thermal expansion coefficient tester, one software set, one communication interface and data line, one standard sample, one desktop computer (according to the contract configuration).

II.Product parameter

Suhu tungku maksimum 1000℃, 1400℃, 1600℃, 1700℃ and other specifications optional.
temperature rise speed 0-20 Derajat/Min Disesuaikan, Kontrol suhu program komputer mikro, temperature control accuracy ±1℃;
measuring deformation range ± 1,5mm.
displacement sensor sensitivity 0.1um, Rentang kalibrasi otomatis;
the computer automatically calculates the expansion coefficient, volume expansion, linear expansion.
automatic record, penyimpanan, printing number, printing temperature – Kurva koefisien ekspansi.

The temperature interval is set freely, the minimum interval is 1℃.
secara otomatis menghitung faktor kompensasi dan kompensasi otomatis, tetapi juga koreksi manual.
sample size Phi(5 ~ 10) ×50mm, (5 ~ 10) × (5 ~ 1×50mm, square or round sample can be;
linear bearing transmission, to achieve the expansion value without friction transmission, transmission accuracy and repeatability is very good.
System measurement error ±0.2%.
Sumber Daya listrik 220V, 2KW

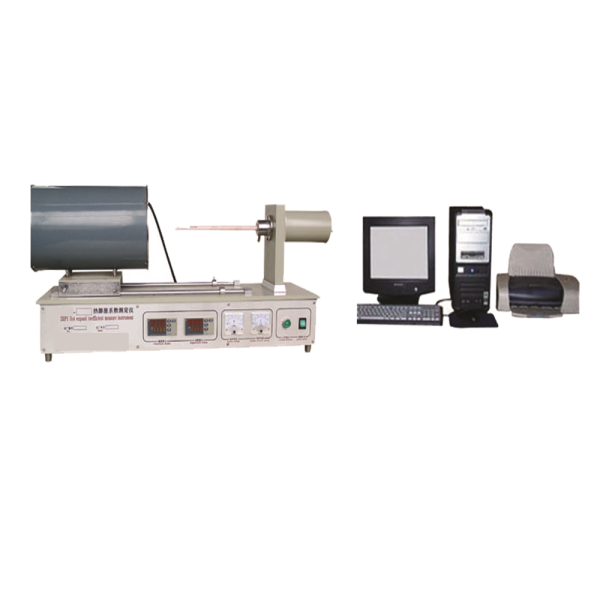

GA-361 intelligent dilatometer with computer automatic temperature control, record, penyimpanan, printing number, printing temperature – Kurva koefisien ekspansi. All test operations are completed by the computer interface, easy to operate and learn and provide a full set of software.
