Keterangan
Leakage Current Meter

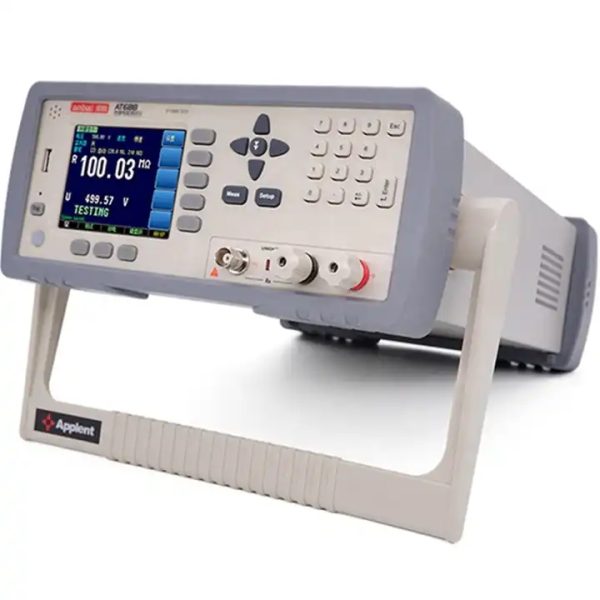

AT688 Insulation Resistance Meter is an intelligent test instrument controlled by a high performance ARM microprocessor. layar LCD, 1V~1000V arbitrary voltage output, to meet any critical requirements. Six-range test, insulation resistance measurement range can reach 100k-10TΩ, maximum display digit is 20000. The instrument has sorting function, and can also be equipped with a Handler interface, which is applied to the automatic sorting system to complete the automatic pipeline test. It can be equipped with RS232C interface for remote control and data acquisition and analysis.
Leakage Current Meter
| Spesifikasi | |
|
AT688 Insulation Resistance Meter |
|
| Parameter |
Leakage current and insulation resistance |
| Tegangan Keluaran |
(NC)1V~1000VDC |
| Akurasi Dasar | <10G: 3% ≥10G: 5% ≥100G: 10% |
| Pengukuran Jangkauan | 100kW~10TW
10V: 100kW~100GW 100V: 1MW~1TW 1000V: 10MW~10TW |
| Display Max | 20000 angka |
| Jangkauan |
Automatic and Manual |
| Kecepatan |
55 times/second,15 times/second,3 times/second |
| Pengaturan |
Open-circuit Zero-Adjust for each range |
| Result Display |
Menunjukkan, saat ini, perlawanan, nilai puncak, sorting results |
| Charging Timer |
999.9S |
| Pembanding |
30 sets record,GD/NG Beep:GD,Dari,OFF setting |
| Antarmuka |

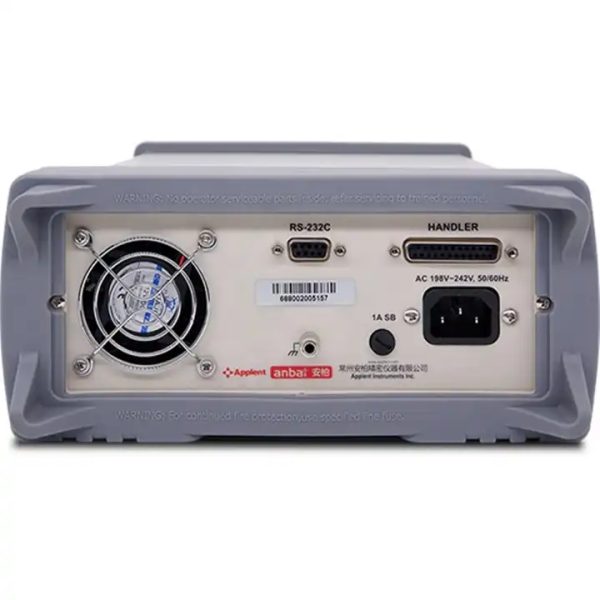

RS-232C interface, Handler interface, Antarmuka USB |
| Yang lain | TFT-LCD display screen, up counter and count down can be set for timer |
| GENERAL FEATURES | |
| Sumber Daya listrik |
Tegangan: 198VAC~240VAC, Frekuensi: 50Hz, Kekuatan: Max 30VA |
| Ukuran |
(mm): 264(Lebar)x107(Tinggi)x350(Kedalaman), 5kg |
| ORDERING INFORMATION | |
| Aksesoris |
ATL50 Test clip ATL108 RS232 communication cable AC Power Cord |
