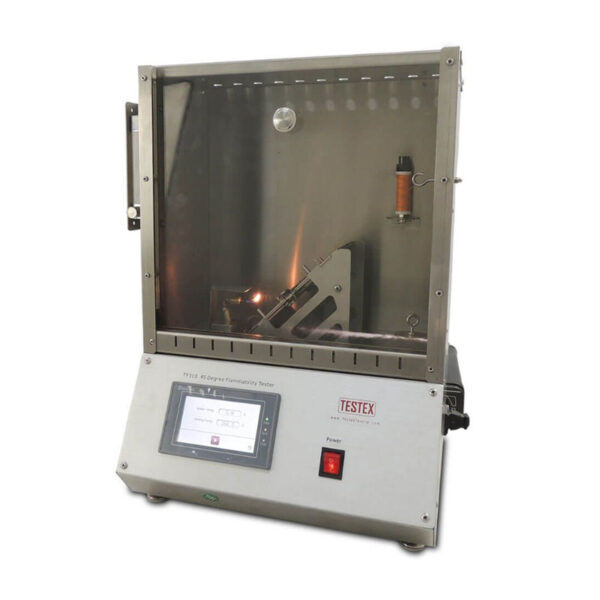

ASTM 1230 CRF 16 45 Degree Flammability Tester
Product Name : ASTM 1230 CRF 16 45 Degree Flammability Tester
Model: GA-B6
- Keterangan
- Pertanyaan
Keterangan
ASTM 1230 CRF 16 45 Degree Flammability Tester
1. Tujuan
To test the flammability of textiles delivered to or taken from consumers.
45-degree flammability tester, check the flammable performance of the textile Stainless testing room with glass window, after ignition automatic time (0.01-second precision) automatic.
ASTM 1230 CRF 16 45 Degree Flammability Tester
2.Standar
ASTM D1230 CFR 16 Bagian 1610 GB/T 14644 FTMS 191-5908 CAL TB 117 NFPA 702
| Time Display | 0-99.9S |
| Test box | 37cm*22cm*35cm, top 12 vents with a diameter of 12.7mm |
| Pemegang sampel | 45° |
| Pemegang sampel | upper plate slotted 38mm*152mm |
| Sample size | 50mm*150mm |
| Bristle load | 150pacar |
| Resolving Capability | 0.1S |
| Ignition time | 1s or set it Set arbitrary |
| Ukuran | 420 X 260 x 520mm (L*W*H) |
| Sumber Daya listrik | AC 220V / 50Hz / 2A |
| Standar | ASTM D1230, CRF 16-1610 |
| Berat | 20kg |
