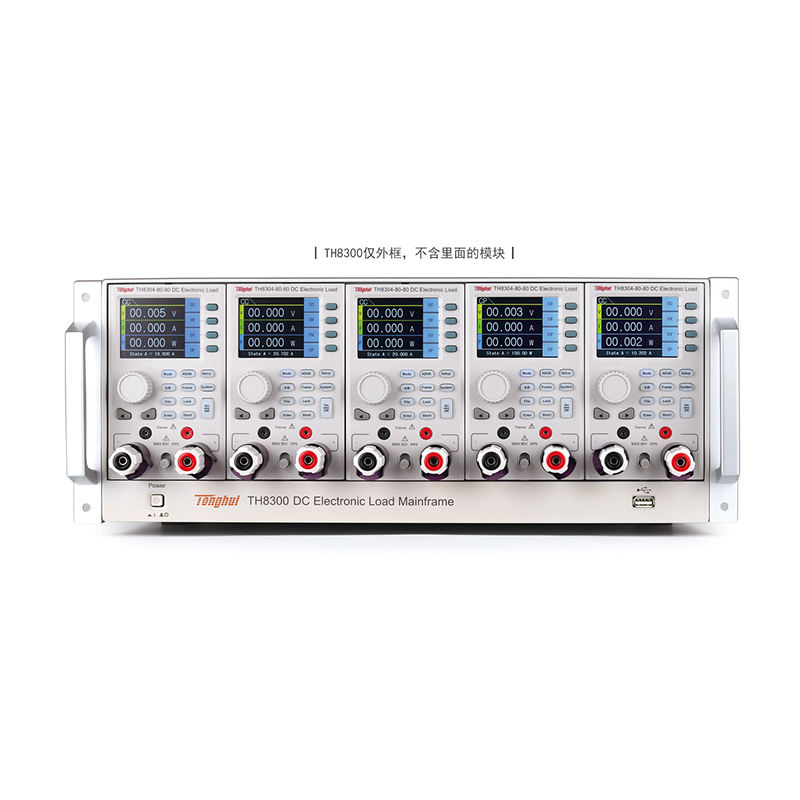

Tonghui TH8300 Series Programmable DC Electronic Load

Description

Charge électronique CC

Caractéristiques

High resolution: 0.1mV/10μA

Up to 50kHz dynamic frequency

Up to 500kHz sampling speed

12 advanced test functions

Modular design, support each module to operate independently

One single machine can support up to five modules in parallel and support up to ten channels

The maximum power of the whole machine is 2000W, and the online maximum current is 400A

The maximum power of the module is 400W, the maximum current is 80A and the maximum voltage is 600V

Connect via CAN interface, support up to four complete machines online

24-bit color 2.8-inch color LCD display

Chinese and English operation interface

Smart fan system

Support power-on hold function

Support timing function

Electrical isolation, external input and output

Support over current protection (OCP), over voltage protection(OVP), over power protection (OPP), over temperature protection(OTP), reverse polarity protection (REV), low voltage protection (LVP)

Charge électronique CC

Application

Source de courant

Chargeurs, switching power supplies, communication power supplies, Pilotes de LED, mobile phone batteries, power banks, etc..

Nouvelle énergie

Cellules solaires, new power cars, vélos électriques

Composants électroniques de puissance

Fuse/connector/relay/sensor

Automation equipment integration test

Charge électronique CC

Paramètre technique

Frame Model
TH8300	Max Module Number: 5. Max Channel Number: 10.
TH8310	Max Module Number: 2. Max Channel Number: 4.
Module Model	Tension		Actuel		Pouvoir

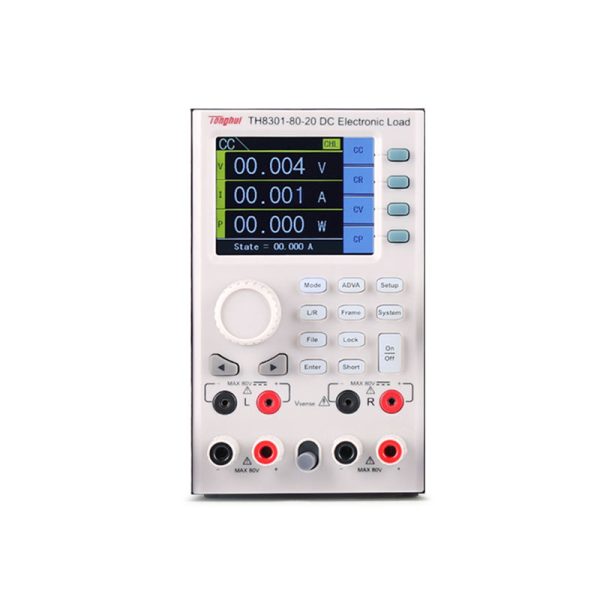

TH8301-80-20	80V		20UN		100W*2
TH8301A-80-20	80V		20UN		200W*2

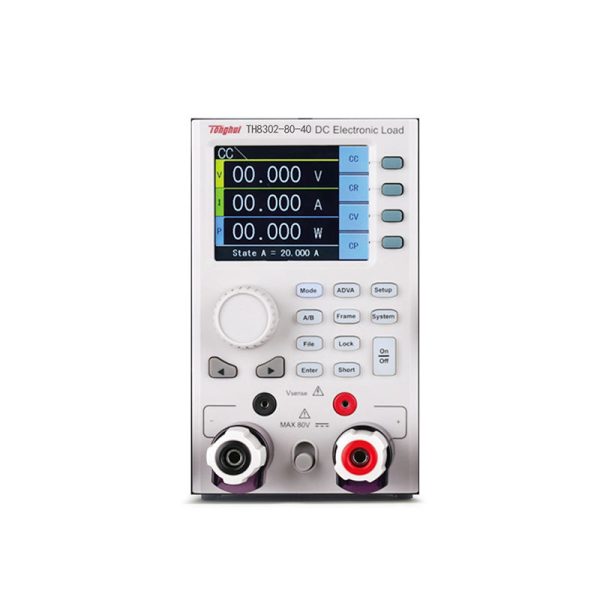

TH8302-80-40	80V		40UN		200W

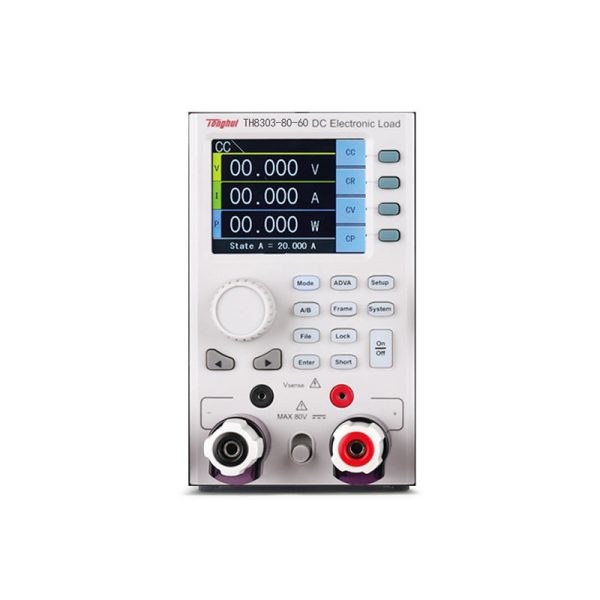

TH8303-80-60	80V		60UN		300W
TH8304-80-80	80V		80UN		400W
TH8305-80-80	80V		80UN		500W
TH8302-600-10	600V		10UN		200W
TH8303-600-15	600V		15UN		300W
TH8305-600-30	600V		30UN		500W
