Description
Capacitance Meter
Caractéristiques
4.3 inch TFT LCD display
Selectable Chinese and English operation interface
Max.. test frequency: 1MHz
Highest test speed: 2.3ms/time
Basic test accuracy : ±0.07%
Loss factor: ±0.0005
V, I test signal level monitor function
Low impedance measurement, signal level compensation

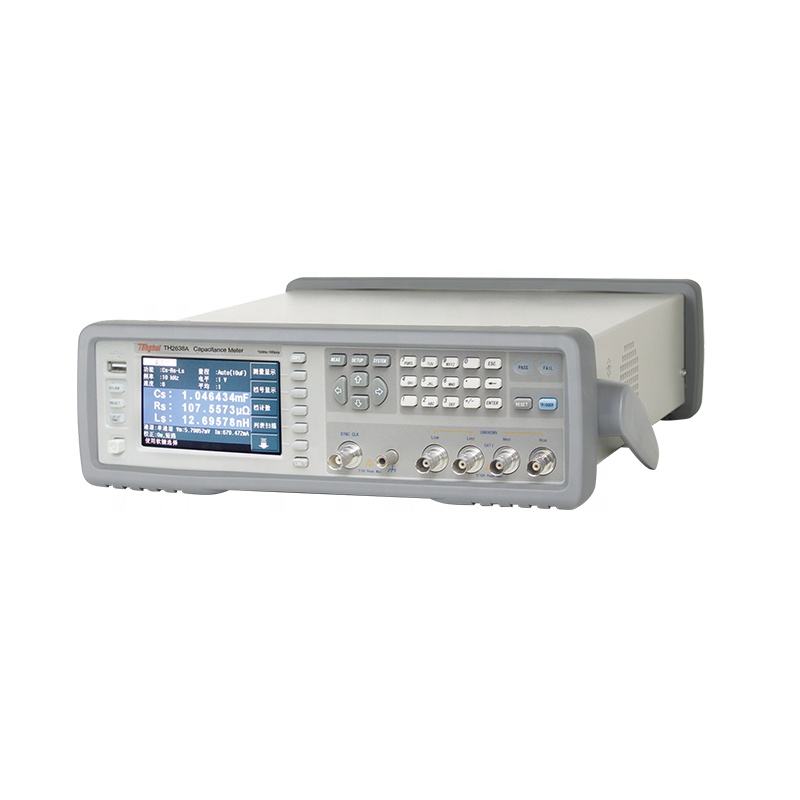

Capacitance Meter
fonction
Built-in 11-bin comparator
Internal file storage and external U disk file storage
Test data can be directly saved in U disk
Screen shot can be saved in U disk
Compatible with SCPI commands
RS232C, USB CDC, LAN, HANDLER, GPIB interfaces
Manipulator interface and scanner interface
Contact inspection function
Synchronizing signal source
Offset function in 1MHz test frequency (± 1, ±2%)
Capacitance Meter
| Modèle | TH2638 | TH2638A | |
| Test Parameters | Cp-D, Cp-Q, Cp-Rp, Cp-G, Cs-D, Cs-Q, Cs-Rs | ||
| Test Signal | |||
| Fréquence | Permitted frequency | 100Hz,120Hz, 1kHz,10kHz,100kHz,1MHz,1MHz±1%,1MHz±2% | 100Hz,120Hz, 1kHz,10kHz,100kHz |
| Précision | ±0.02% | ||
| Niveau | Gamme | 0.1V-1V | |
| Résolution | 0.01V | ||
| Précision | ±5% | ||
| Output Mode | Continuous or synchronous | ||
| Signal Source Delay | Gamme | 0-1s | |
| Résolution | 0.1MS | ||
| Signal Level Compensation | 100/120Hz | 220μF, 470μF, 1mF range | |
| 1kHz | 22μF, 47μF, 100μF range | ||
| Modèle | TH2638B |
| Test Parameters | Cp-D, Cp-Q, Cp-Rp, Cp-G, Cs-D, Cs-Q, Cs-Rs, Cs-Rs-Ls |
| Afficher | 4.3 TFT LCD, 480*272. |
| Basic Measurement Accuracy | C: 0.07%, D: ±0.0005 |
| Test Frequency | 100Hz,120Hz,1kHz,10kHz |
| AC Signal Level | 0.1V—1V, résolution: 0.001V |
| Signal Source Output Impedance | 0.3Oh, 1.5Oh, 10Oh, adjust automatically based on impedance |
| Vitesse d'essai | 2.3MS,2.5MS,3MS,3.3MS,10MS. |
| Test Capacitance Range Distribution | 1pF, 2.2pF, 4.7pF, 10pF, 22pF, 47pF, 100pF, 220pF, 470pF, 1nF, 2.2nF, 4.7nF, 10nF, 22nF, 47nF, 100nF, 220nF, 470nF, 1μF, 2.2μF, 4.7μF, 10μF, 22μF, 47μF, 100μF, 220μF, 470μF, 1mF. |
| List Sweep | 10 points, sweeping parameter: test frequency, AC voltage |
| General Function | Series and parallel equivalent mode, Test cable length: 0/1m, Moyenne: 1-255 fois, Étalonnage: open circuit, short circuit, charger, ALC function, Range selection: automatique, manuel, Trig mode: INT,MAN,EXT,BUS, Trigger delay: 0-999s, Keyboard locking function. |
| Unique Function | Contact check function, synchronous signal source function, frequency offset function (TH2638), Cs-Rs-Ls(TH2638A)low output impedance, voltage compensation function, One key screenshot function, one key recording function. |
| Comparateur | 11 bins sorting, PASS/FAIL indication, bin count function. |
| Stockage | 40 sets of build-in test settings, USB: 40 sets of setting files, GIF, and CSV data file. |
| Interface | RS232C, LAN,USBCDC, HANDLER. |
| Modèle | TH2638C |
| Test Parameters | Cp-D, Cp-Q, Cp-Rp, Cp-G, Cs-D, Cs-Q, Cs-Rs, Cs-Rs-Ls |
| Afficher | 4.3 TFT LCD, 480*272. |
| Basic Measurement Accuracy | C: 0.07%, D: ±0.0005 |
| Test Frequency | 100Hz,120Hz,1kHz |
| AC Signal Level | 0.1V—1V, résolution: 0.001V |
| Signal Source Output Impedance | 0.3Oh, 1.5Oh, 10Oh, adjust automatically based on impedance |
| Vitesse d'essai | 2.3MS,2.5MS,3MS,3.3MS,10MS. |
| Test Capacitance Range Distribution | 1pF, 2.2pF, 4.7pF, 10pF, 22pF, 47pF, 100pF, 220pF, 470pF, 1nF, 2.2nF, 4.7nF, 10nF, 22nF, 47nF, 100nF, 220nF, 470nF, 1μF, 2.2μF, 4.7μF, 10μF, 22μF, 47μF, 100μF, 220μF, 470μF, 1mF. |
| List Sweep | 10 points, sweeping parameter: test frequency, AC voltage |
| General Function | Series and parallel equivalent mode, Test cable length: 0/1m, Moyenne: 1-255 fois, Étalonnage: open circuit, short circuit, charger, ALC function, Range selection: automatique, manuel, Trig mode: INT,MAN,EXT,BUS, Trigger delay: 0-999s, Keyboard locking function. |
| Unique Function | Contact check function, synchronous signal source function, frequency offset function (TH2638), Cs-Rs-Ls(TH2638A)low output impedance, voltage compensation function, One key screenshot function, one key recording function. |
| Comparateur | 11 bins sorting, PASS/FAIL indication, bin count function. |
| Stockage | 40 sets of build-in test settings, USB: 40 sets of setting files, GIF, and CSV data file. |
| Interface | RS232C, LAN,USBCDC, HANDLER. |
