Description

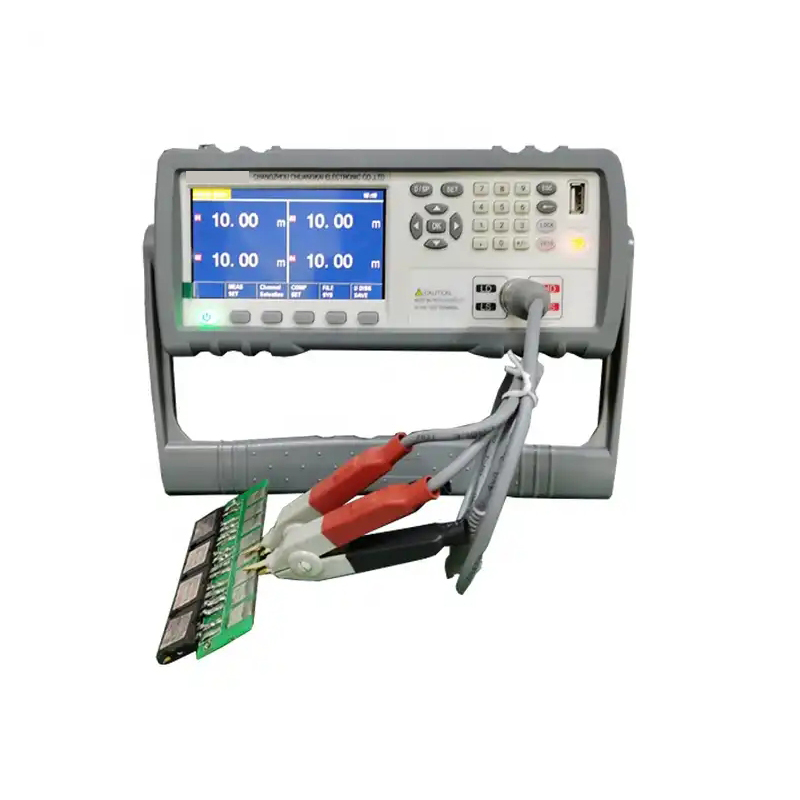

DC Low Resistance Tester
Courte introduction
The basic accuracy of CKT517/A/B DC resistance tester is 0.05%, and the measurable range is 1μΩ-2MΩ (only CKT517). The maximum test speed can reach 20 fois par seconde. The instrument can set the upper and lower limits. It has RS232, HANDLER, U disk and other interfaces. It is suitable for automatic production lines with various signal interfaces and is suitable for production lines. Cost-effective resistance tester.
The basic accuracy of CKT515/A DC resistance tester is 0.01%, and the measurable range is 0.1μΩ~110MΩ (only CKT515). The maximum test speed can reach 100 times/sec. The instrument can set the upper and lower limits. It has RS232, HANDLER, U disk and other interfaces. It is suitable for automatic production lines with various signal interfaces and is suitable for production lines. Cost-effective resistance tester.
| SPECIFICATIONS | ||||
|
CKT517 |
CKT517A |
CKT517B |
||
| Paramètre | DC resistance | |||
| DISPLAY | ||||
| Afficher | 4.3-inch and IPS LCD screen, resolution of 480 X 272 | |||
| Reading Digits | 4 1/2 chiffres | |||
| RESISTANCE MEASUREMENT | ||||
| Plage de mesure | 1μΩ~2MΩ | 1μΩ~200kΩ | 10μΩ~20kΩ | |
| Précision de base | 0.05% (Refer to user’s manual for more details) | |||
| Maximum Test Current | 1UN | 100mA | ||
| MEASUREMENT FUNCTION | ||||
| Gamme | Automatic and manual | |||
| Resistance Test Speed | FAST:20MS,SLOW:40 MS | |||
| Temperature Test Time | 100MS | None | ||
| Test Terminal Configuration | 4-terminal | |||
| Statistics Function | OVER/BEEP/OK products quantity statistics | |||
| Setting Data Storage | 5 groupes | |||
| TEMPERATURE MEASUREMENT | ||||
| Paramètre | PT1000: accuracy 0.1℃ | None | ||
| Display Range | -10℃ – 99.9℃ | None | ||
| COMPARATOR | ||||
| Signal Output | HI/PASS1/PASS2/PASS3/LO/FAIL | |||
| Beep | OK/NG/OFF | |||
| Limit Set Mode | 3 bins;ABS or Percentage high/low limit +nominal value | |||
| OHER PARAMETERS | ||||
| Trigger | Interne, External, Manuel | |||

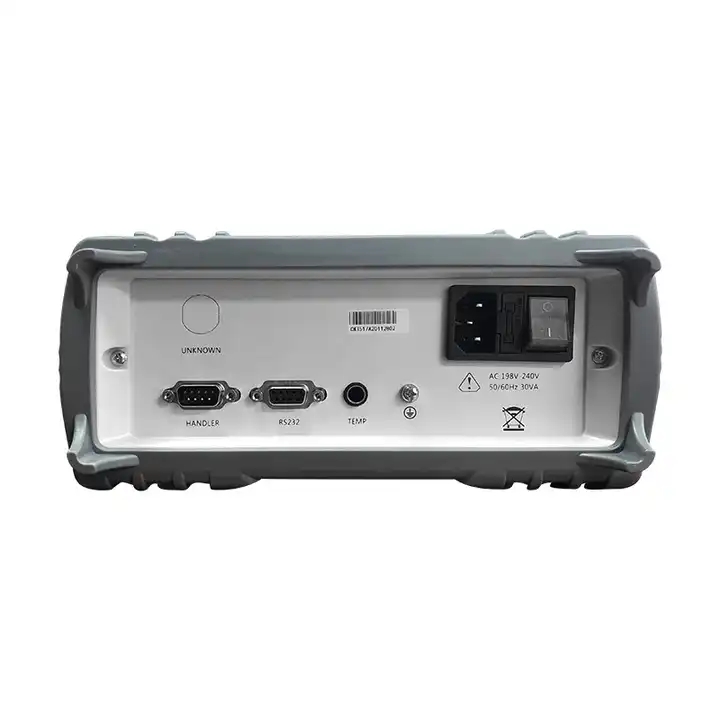

| Interface | USB HOST / RS232 / HANDLER / RS485 (facultatif) | |||
| Dimension & Poids | Lxwxh: 361 mmx 107 mmx 264 mm; Poids net: approx.3.6KG | |||
| Autre fonction | Cable length test function (Facultatif) | |||
| GENERAL FEATURES | ||||
| Source de courant | Tension: 110V/220V; Fréquence: 47.5~52.5Hz | |||
| ORDERING INFORMATION | ||||
| Accessoires | Kelvin test clip, temperature probe (Only CKT517), AC power cord | |||
| Accessoires optionnels | Câble de communication RS232, Interface de communication RS485, data acquisition software, multimeter pen test clip, SMD Kelvin test cable | |||
