GA-SCT Short Distance Compression Tester
Introduction:
GA-SCT Short Span Compression Tester is used to measure the compressive strength of paper and cardboard samples by the SCT method. It is considered an important property and can be used to predict the performance of corrugated cardboard sheet used in the manufacture of corrugated cardboard.Compressive strength determines the stacking ability of corrugated boxes. The aim is to produce strong boxes, and at the same time use a minimum of raw material. Short Span Compression is considered an important property and can be used to predict the performance of container board used in the manufacture of corrugated boxes.
It can quickly measure the compressive strength of lined cardboard and corrugated paper. The compressive strength determines the stackability of corrugated boxes. The purpose of measuring compressive strength is to help manufacturers produce cartons with high compressive strength using as few raw materials as possible.
Normes:
QB_T2386-2017 Short span compression tester for paper and board
GBT2679.10 Paper and board-Compressive strength-Short span test
OIN 9895-2008 Paper and board-Compressive strength-Short span test
TAPPI T826 Short span compressive strength of containerboard
DEPUIS 54518 Testing of paper and board – compression strength, short span test
BS 7325 Method for determination of the compressive strength of paper and board by the short span test
GA-SCT Short Distance Compression Tester
Paramètres techniques:
|
Parameter Item
|
Index technique
|
||
|
Unité
|
N kN/m (N·m)/g
|
||
|
Plage de mesure
|
0~500N (112lbf)
|
||
|
Précision
|
Indication error±1%，Indication fluctuation≤1%
|
||
|
Résolution
|
0.1N
|
||
|
Test speed
|
(1~10)mm/min (Ajustable)
|
||
|
Adjustable span
|
(0.5~2)mm (Ajustable)
|
||
|
Connections
|
RS232
|
||
|
Imprimante
|
Micro-imprimante thermique
|
||
|
Dimensions
|
550×370×200 (mm)
|
||
|
Poids
|
21kg
|
||
|
Pouvoir
|
AC 110V~240V
|
||
caractéristiques du produit:

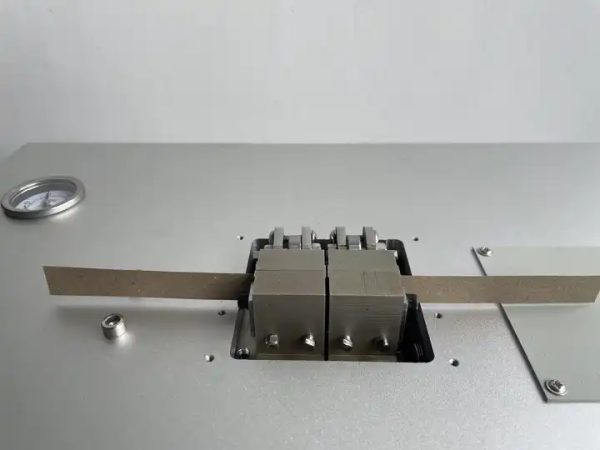

2. Precision ball screw transmission, Aluminum-alloy control panel. The high quality stainless steel clamps ensure the durability of the instrument.
3. High resolution color touch screen operation system, automatic complete operation, has statistics function. Micro-printer, fast and clear printing. Can be connected to PC, save, output results.
4. High performance stepper motor driven, USA chips control, ensure accurate transmission, fast and high efficient test.
5. Professional calibration procedure, user can calibrate the machine easily.Factory equipped with calibration weights, users can easily self-calibration instrument.
