Machine à coudre à ultrasons GA-MJQ
- Description
- Enquête
Description

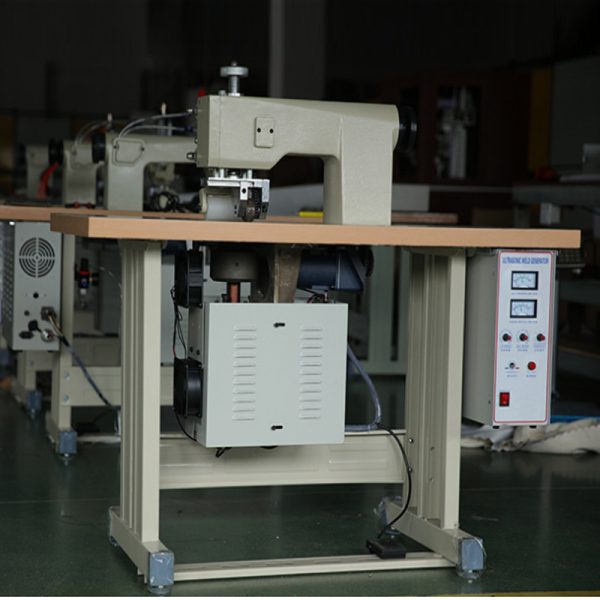

Machine à coudre à ultrasons GA-MJQ
Application
Widely used in protective clothing, masks, medicine bags, underwear clothing sewing, curtain sofa cover, child seats… Various products such as seamless stitching, personalized mold customization, a multi-purpose machine

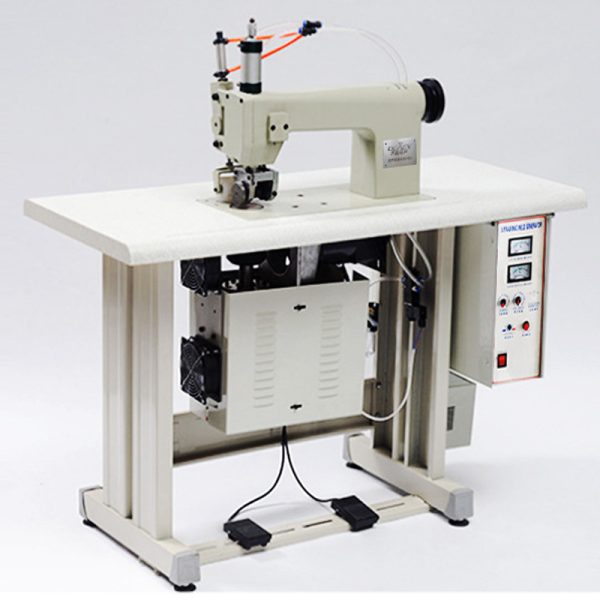

Machine à coudre à ultrasons GA-MJQ
Fonctionnalité
1.Opération simple
smooth cutting edge
2.High efficiency
fast running speed
3.Not vulnerable material
Product forming
4.Speed adjustable
Three speed adjustment
5.Pneumatic/manual
operation speed is fast
6.One machine multi-purpose
change mold change process
Detail
1.Facile à utiliser – Facile à utiliser
The ultrasonic power can be adjusted to use a variety of different fabrics.

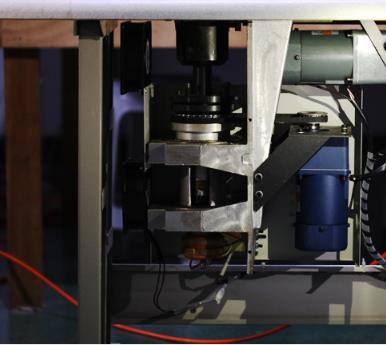

2.Dual motor drive
Stable performance High efficiency Large output power and stable, can be used for a long time, continuous work.

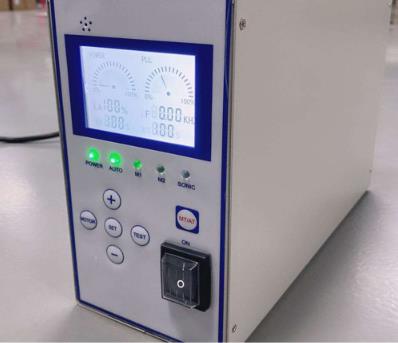

3.Facile à utiliser – at a glance
Electronic box design intuitive and user-friendly, current data at a glance, easy to view.

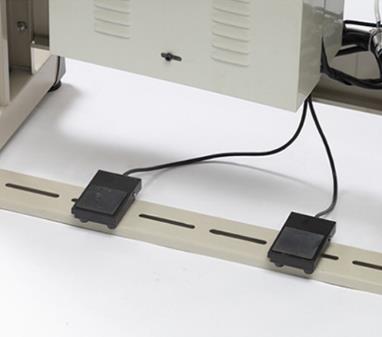

4.Design – Comfortable foot
The feet are comfortable, the position is moderate, and can be adjusted by itself.

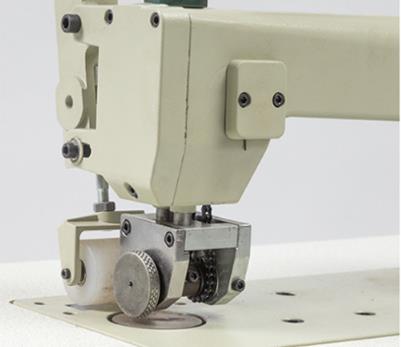

Machine à coudre à ultrasons GA-MJQ
Paramètre
15KHZ
| product name | Ultrasonic pneumatic sewing machine |
| Poids net | 120KG |
| alimentation qui fonctionne | 220V/5V50/60HZ6A |
| product size | 1200*600*1200MM |
| input power | 1500-3500W(third gear adjustable) |
| work environment | ≤25℃ |
| running speed | 0-20M/MIN |
| output frequency | 20KHZ |
20KHZ
|
1
|
Transducer frequency
|
19.85-19.95KHz
|
|
2
|
equipment power
|
2000W
|
|
3
|
Yellow film capacitance
|
11000pf
|
|
4
|
Black chip capacitance
|
15000pf
|
|
5
|
Langue
|
Chinese-English
|
|
6
|
Écran du coffret électrique
|
Écran LCD
|
|
7
|
Welding mode
|
Continuous and Spot
|
|
8
|
Amplitude de soudage
|
10%-100% Ajustable
|
|
9
|
Mold size
|
110*20/Customization
|
|
10
|
Mold material
|
SKD11 Steel/Aluminum/ Titanium
|
|
11
|
alimentation
|
Power 220V Frequency 50~60Hz
|
