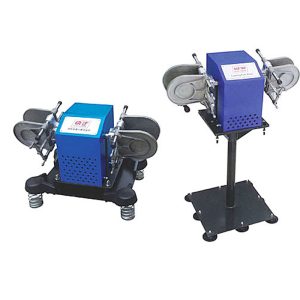

BGD 760 Mélangeur rapide de revêtement

Description

BGD 760 Mélangeur rapide de revêtement

Having a high efficiency mixer for the dispersing job becomes more necessary. That is why we designed our coating fast mixer. BGD 760 mixers are a great mixing solution that are capable of handling an extremely broad range of materials for countless applications including automotive, chimique, wood finishes, marine, R.&D, and various lab settings.

◆ Suitable for a wide range of mixing applications

◆ With two types for option：
Carrying Can— Shakes a variety of containers of all sizes and shapes（User should prepare container by himself. The max. diameter of container is 180mm, the container height range is from 65mm to 180mm）

Carrying Bottle—Shakes eight glass bottles whose capacity is 200ml （Each arm have four bottles ,and every bottle can finish dispersing of 150ml sample）

◆ Two different structures：Column type and Floor type, are suitable different applications

◆ With timer can automatically stop mixing cycle

BGD 760 Mélangeur rapide de revêtement

Having a high efficiency mixer for the dispersing job becomes more necessary. That is why we designed our coating fast mixer. BGD 760 mixers are a great mixing solution that are capable of handling an extremely broad range of materials for countless applications including automotive, chimique, wood finishes, marine, R.&D, and various lab settings.

BGD 760 Mélangeur rapide de revêtement

Paramètres techniques

■ Moteur：550W 220V 50Hz

■ Crankshaft Revolution：660 tr/min

■ Main Shaft Reciprocating Stroke：16 mm

■ Upper and lower maximum Amplitude：8 mm

■ Head Arm Swinging Angle：30°

■ Dimension globale：790mm×520mm×1090mm （length by width by height）

■ Poids：80KG

■ Informations de commande：

BGD 760/1—Coating Fast Dispersing Tester （Column type with carrying can）

BGD 760/2—Coating Fast Dispersing Tester（Column type with carrying bottle）

BGD 760/3—Coating Fast Dispersing Tester （Floor type with carrying can）

BGD 760/4—Coating Fast Dispersing Tester（ Floor type with carrying bottle）
