BGD 740 Machine de dispersion à grande vitesse

Description

BGD 740 Machine de dispersion à grande vitesse

Machine de dispersion à grande vitesse

What is dispersing in the coating field? It means that in the manufacturing process solid materials are made to be distributed evenly in the liquid; in the process of dispersion, pull of particulates are broken down. The round saw tooth-type dispersion tray influenced by the electromotor will be dispersing in the container to effect the solid and liquid dispersion, moisturization, depolymerization. Its work principle description is mainly as follows：

n Make the serosity annular and cause powerful vortex, so the particulates of the serosity fall to the bottom vortex bottom

n An 2.5-5mm eldge in the dispersion tray is formed a flow area in which the particulates are impacted intensely.

n Two beam currents outside the area are formed to make the serosiy fully circulated and turned over.

n What is below the dispersion tray is a current flow, serosity with different speed disperses mutually to effect the function of dispersion

Biuged offer many different High-speed dispersing machines,they are applicable to the stir, dissolution and dispersion of coating, peinture, encre ,dyestuff, cosmetic goods, foodstuff, resin, adhésif, latex, médecine, pétrole, whose speed can be adjust at will.

BGD 740 Machine de dispersion à grande vitesse

Caractéristiques:

◆ With Siemens squirrel-cage motor of frequency control（except BGD 740/1 and BGD 741/1） and use frequency converter to adjust working speed

◆ Les chiffres directs affichent la révolution de l'axe via l'écran d'affichage du convertisseur de fréquence installé sur la machine.

◆ Pas de balai de charbon, ne produit aucune flamme lors du travail

◆ Moins de bruit, couple plus important et vitesse réglable plus large

◆ BGD 740/1 & BGD 740/2 have lifting lever marked with scale, which are convenient to adjust the height of dispersing blade and the bottom of container.

◆ Main parts are all made up of stainless steel, with perfect corrosion resistance

◆ Standard confirguration：Two or four（only for 550W&750W）different dispersing baldes, and also can select different size sand-milling blades and stainless steel double jacket container for milling.

◆ Power Supply：220V 50HZ

BGD 740 Machine de dispersion à grande vitesse

Paramètres techniques

Informations de commande	Puissance du moteur	Vitesse (tr/min)	Max.. Torque	Distance de levage	Lift System	Dispersing blades	ÔTaille globale，mm W×D×H（Low～Top）
BGD 740/1	550W	0-7,500	1.91 N.m	240 mm	Manuel	50mm&60mm	475×430×560～800
BGD 740/2	750W	0-6,000	2.87 N.m	260 mm	Manuel	50mm&60mm	475×430×635～895
BGD 740/3	1,100W	0-6,000	3.82 N.m	320 mm	Electric	60mm&80mm	675×570×1180
BGD 740/4	1,500W	0-5,000	5.73 N.m	320 mm	Electric	80mm&100mm	675×570×1180
BGD 740/5	2,200W	0-4,000	7.64 N.m	520 mm	Electric	100mm&120mm	700×720×1300～1510
BGD 741/1	550W	0-7,500	1.91 N.m	300 mm	Electric	50mm&60mm	475×430×840～910
BGD 741/2	750W	0-6,000	2.87 N.m	300 mm	Electric	50mm&60mm	475×430×840～960
BGD 742/2 （Explosion-proof）	750W	0-3,000	2.87 N.m	300 mm	Manuel	50mm&60mm	530×560×965～980
BGD 742/5 （Explosion-proof）	2200W	0-3,000	7.64 N.m	520 mm	Manuel	100mm&120mm	640×680×1430～1500

Note：For 550W&750W machine, come with two 50mm（a efficient one and a heavy-duty one each）blades and two 60mm（a efficient one and a heavy-duty one each）blades

BGD 740 Machine de dispersion à grande vitesse

Accessoires optionnels

(Voir Accessoires pour disperser ou broyer pour lames dispersantes de différentes tailles，Conteneurs de dispersion et autres accessoires）

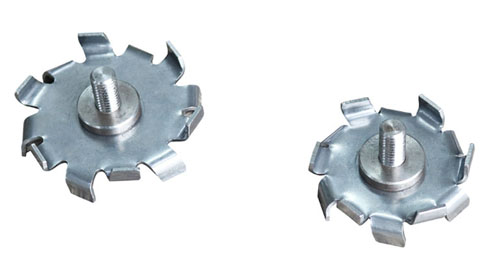

Efficient dispersing blade

Lame de dispersion robuste



Lame de fraisage à sable

Conteneur de dispersion
