Enregistreur de données de température Anbai AT4208 AT4202 AT4204A
- Description
- Enquête
Description
Temperature Data Logger
Courte introduction

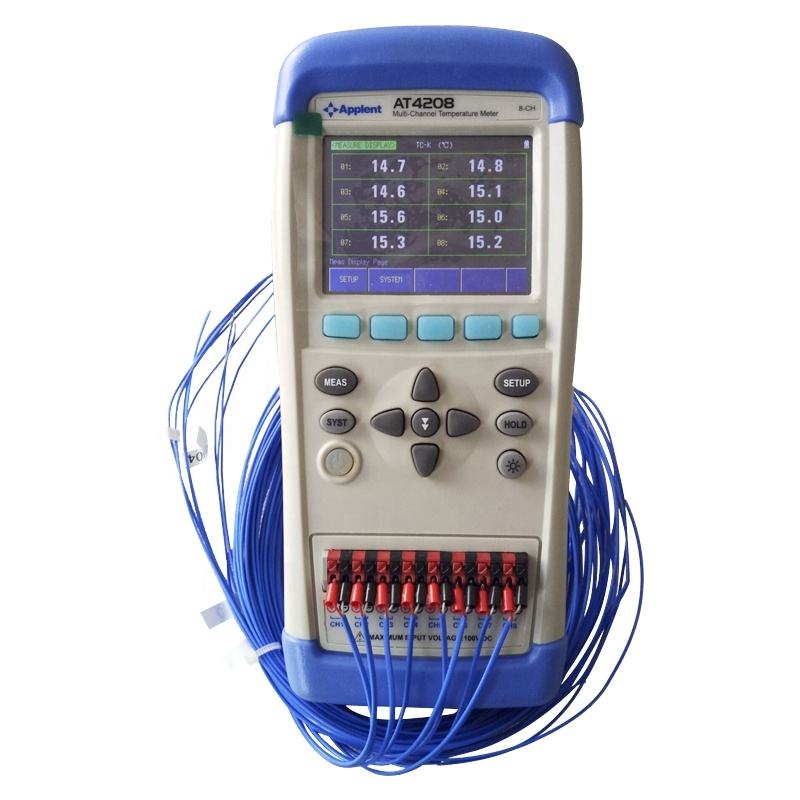

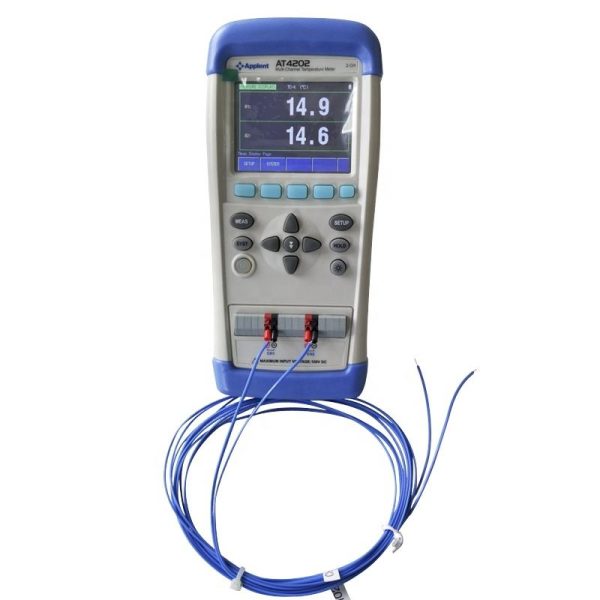

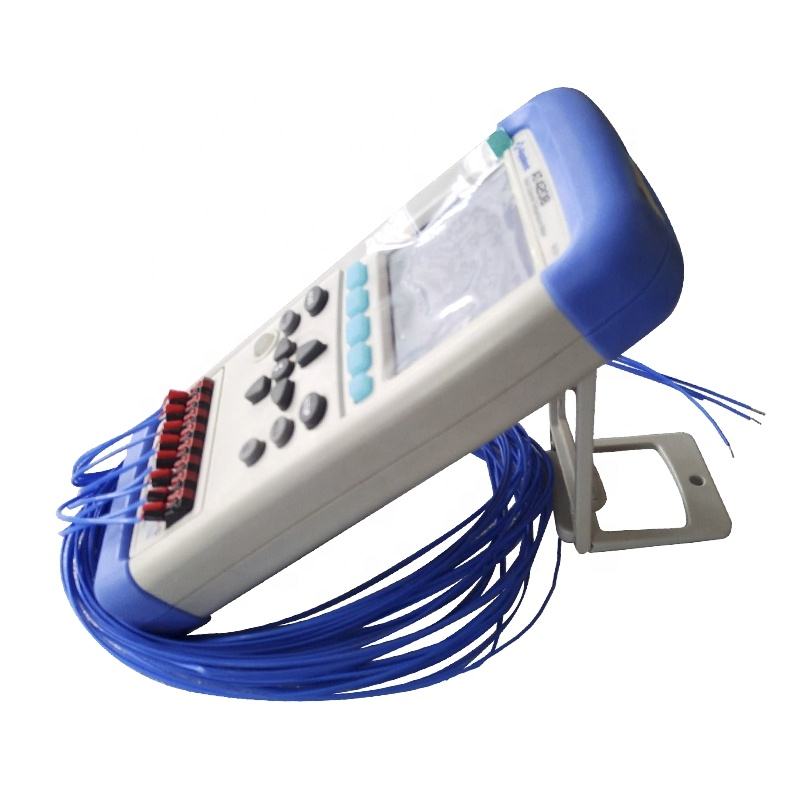

AT42xx series handheld multi-channel temperature meter adopts high-performance ARM micro processor, can collect multi-channel temperature data simultaneously and response quickly. AT420 series has the function of broken thermocouple checking, high/low beep function and communication transmission. Ultra-low power consumption and high density SMD assembly technology. True-color TFT liquid crystal display, keypad and touch screen double control. It is Li- battery powered. Communication USB. Switch in both English and Chinese. The standard computer software can realize the data analysis.
| SPECIFICATIONS | |||
|
AT4202 |
AT4204 |
AT4208 |
|
| Graduation |
Thermocouple:J/K/T/E/S/N/B/R |
||
| Précision de base | 0.2℃ ± 2 chiffres(not include thermocouple accuracy) | ||
| Gamme | -200°C~1300°C(variation depend on graduation) | ||
| Résolution | 0.1°C | ||
| Canal | 2 channels | 4 channels | 8 channels |
| Correction |
Error correction for each channel |
||
| Comparateur |
High & low beep function |
||
| Interface | U-disk interface | ||
| Logiciel | ATS42 data acquisition software | ||
| Cold Junction
Compensation |
Précision:0.5℃ | ||
| Autres | 2.8 inches True-color 16M TFT-LCD LCD display, écran tactile, Communication USB, compatible SCPI instruction set, switch in both English and Chinese;adjustable back light; automatic power off | ||
| GENERAL FEATURES | |||
| Source de courant |
Input: 100-240V~50/60Hz 0.35A Sortir: 9V 1A DC |
||
| Batterie Paramètres |
8.4V, Li, 1400mA rechargeable battery |
||
| Charging time |
Single continuous charging time: Max 200Mins |
||
| Working Time |
Brightness 30%≥14 hours, Brightness 50%≥12 hours, Brightness 100%≥9 hours |
||
| Taille |
Outside (mm): 90 (Largeur)x190(Hauteur)x31 (Depth) 400g |
||
| ORDERING INFORMATION | |||
| Accessoires | K thermocouple 2/4/8 teams(2m/team) ATL909: DC power adaptor
ATL805: Lithium battery ATL105Mini-USB communication cable ATS42 data acquisition software |
||
