TH2832XA Transformer Tester TH2832XB TH2832XC

Tonghui TH2829AX Automatic Transformer Test System
TH2838H Automatic Balance Impedance Analyzer TH2838A TH2838H

Kategorya:

Paglalarawan

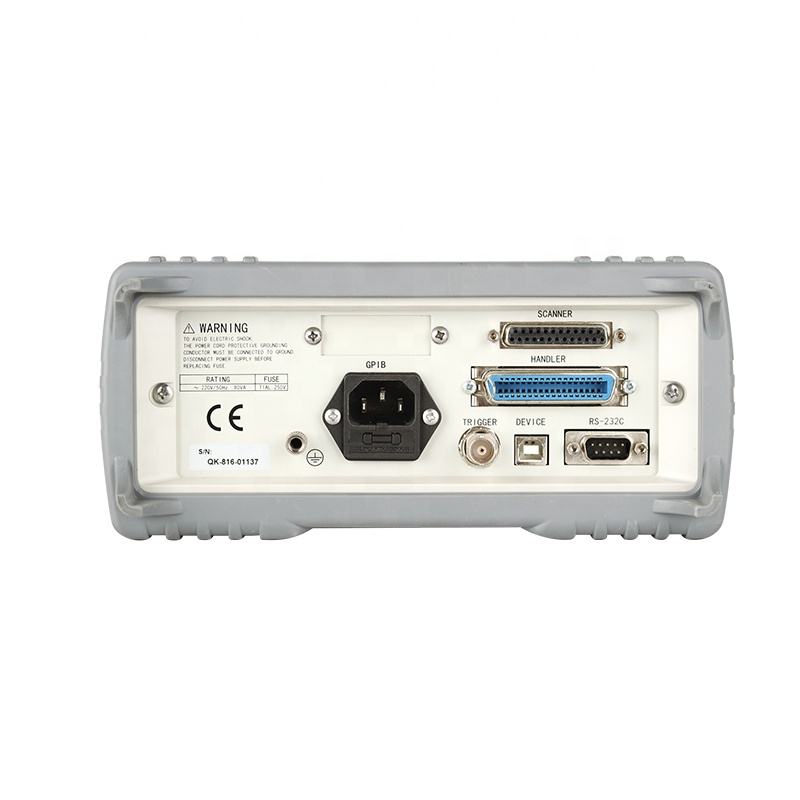

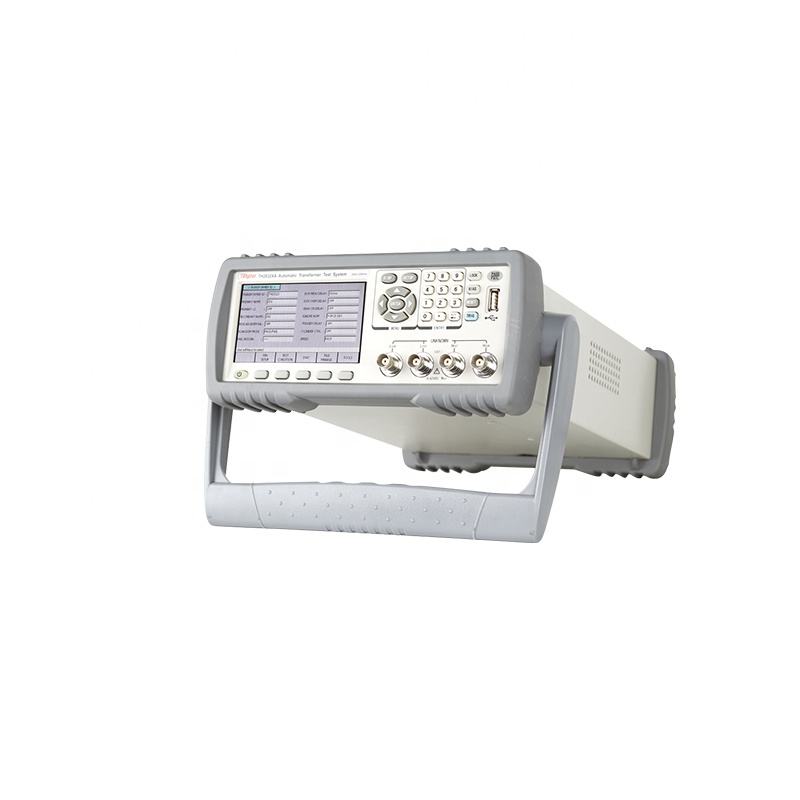

Transformer Tester

Panimula

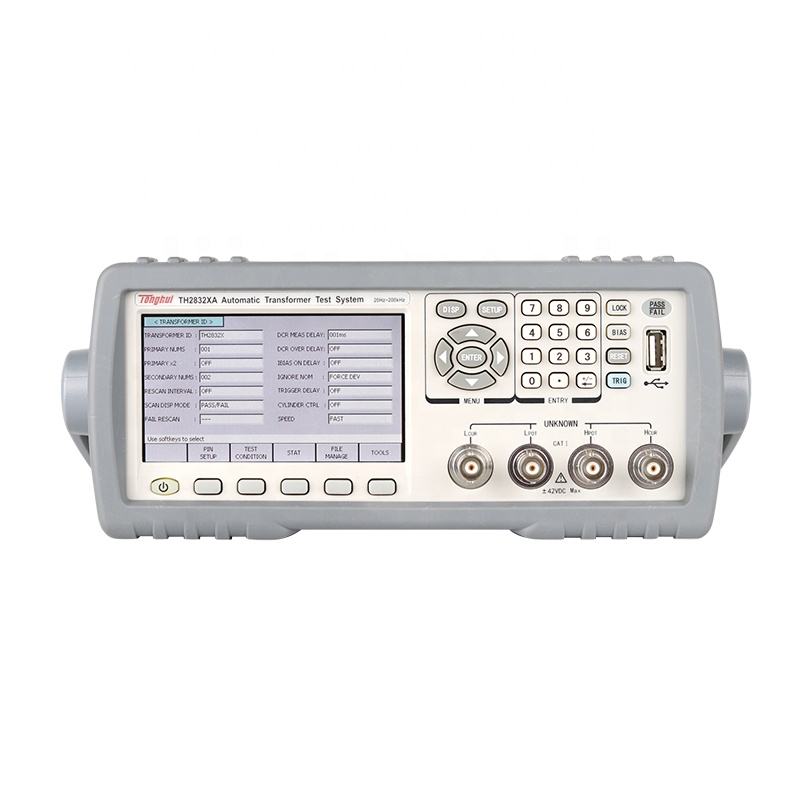

The new window interface design and operation style are perfectly presented on the 4.3-inch TFT. The transformer test system provides a test frequency of 20Hz-200kHz, which satisfies customers’ measurement requirements for switching transformers and network transformers. The transformer scan test covers various low-voltage parameters of the transformer, and also provides the record and view of the relay usage times of the scan fixture, so that the customer can fully grasp the usage status of the relay and replace it in time.

Transformer Tester

Modelo TH2832XA TH2832XB TH2832XC
Number of Test Pin 24 24 12
Test Signal Frequency 20Hz-200kHz, 15025 points in total.
Display 4.3 inch TFT LCD 272*480
Transformer Test Parameter Turn ratio, turs, Phase, L, C, Lk, Q, ACR, DCR, Balanse, Pin short.
LCR Test Parameter |Z|,Y|, C, L, X, B, R, G, D, Q, θ, DCR, Turn-ratio, Phase, Lk. No LCR function
Pangunahing Katumpakan LCRZ 0.1% ——
DCR, Turn ratio 0.5%
Signal Source Output Impedance 30Ω, 100Ω selectable.
Test Speed (≥10 kHz) Fast: 40ms, Med: 125ms, Slow: 370ms.
AC Signal Level 10mV – 2Vrms, 100μA – 20mArms.
DC Bias Voltage Source 0V – ± 5V, 0mA –±50mA.
Comparator Function 10-bin sorting, PASS/FAIL indicator, count function
Memory 100 groups of LCRZ setting file,100 groups of transformer scan set file, 10 groups of gif file.
