Paglalarawan
I. Application Scope:
The semi-automatic pulse fatigue tester uses instrument control. The test pressure and number of tests can be set, and the machine will automatically shut down if any problems occur during the test.
II. Basic Parameters
1. Test Medium: Water, Hydraulic Oil
2. Test Pressure: 0-60 MPa (Adjustable)
3. Pressure Control Accuracy: 0.01 MPa (depending on the range)
4. Pulse Frequency: 5-120 times/min (Adjustable)
5. Test Medium Temperature: Room Temperature to 160°C (according to customer requirements)
6. Test Number of Tests: 1,000,000 or More (Continuously) for sealing performance testing, no leakage or deformation is allowed.
8. Paraan ng Pagkontrol: Pressure Sensor + Instrument

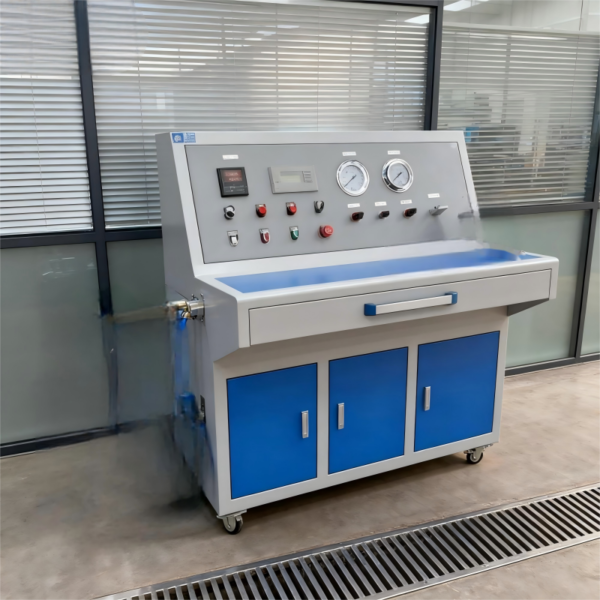

| Product Name | Semi-Automatic Pulse Fatigue Tester | |
| Product Model | GA-Y113 | |
| Basic Principle | Pressure control and test times control are achieved through instrument + sensor | |
| Performance Parameters | Test pressure | 0-60 MPa (pressure selectable) |
| Pressure control accuracy | Test pressure: +2% of upper limit, -1% of lower limit | |
| Pressure resolution | 0.01 MPa (depending on test range) | |
| Pulse frequency | 5-120 cycles/min | |
| Test medium | Water, hydraulic oil, or ethylene glycol mixture | |
| Specimen mounting method | Threaded connection | |
| Structural composition | Instrumentation + sensor systems, pressure generation systems, and abnormality handling systems | |
| Saklaw ng aplikasyon | Hoses, hoses, radiators, air conditioning fittings, containers, and pipelines, atbp. | |
