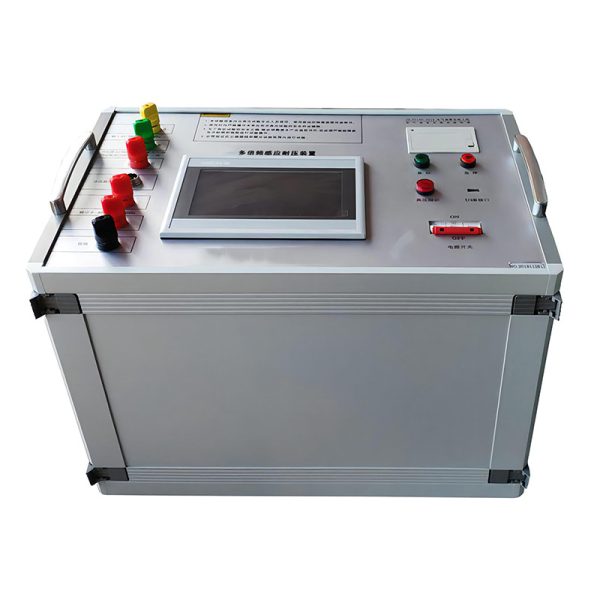

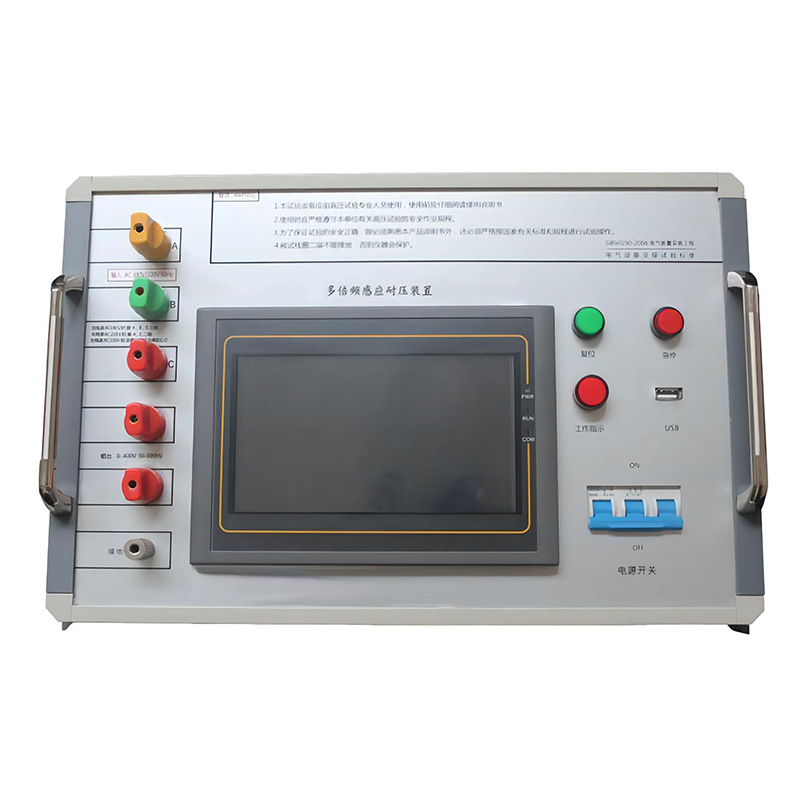

KDSF Frequency Multiplier Generator

Paglalarawan

Frequency Multiplier Generator

KDSF series multi-frequency induction withstand voltage test device adopts power electronics technology, and the internal core part uses frequency conversion regulator. Parameter presetting, protection setting, frequency selection, voltage regulation control, atbp., using digital control technology. Built-in computer, 7-inch color LCD display, data storage can reach 200 mga grupo.

Frequency Multiplier Generator

Mga tampok ng produkto:

Use touch mode of operation. The test frequency of 50Hz, 100Hz, 150Hz, 200Hz can be preset (opsyonal na), and the voltage can be adjusted by touch (step size can be adjusted in real time, choose 1V, 2V, 5V), which can realize the multi-frequency test voltage output of the device. External LC filter loop ensures waveform distortion within the target range. An external inductor with tap is installed to compensate the capacitive current of the tested device and improve the load capacity of the device. Due to the abandonment of the traditional three-phase five-column triple frequency generator generation principle, which brings the following advantages: Small size, magaan ang timbang, madaling dalhin, easy to power. Not only to produce triple frequency, but also to produce 1, 2, 3, 4 frequency test voltage output. The operation and connection are simple, and the requirements for the field test power supply capacity are greatly reduced. It is widely used for frequency doubling induction voltage withstand test of voltage transformers. The power transformer is tested to withstand voltage by frequency doubling induction. The frequency doubling induction withstand voltage test of other induction coil type electrical products was carried out.

Frequency Multiplier Generator
